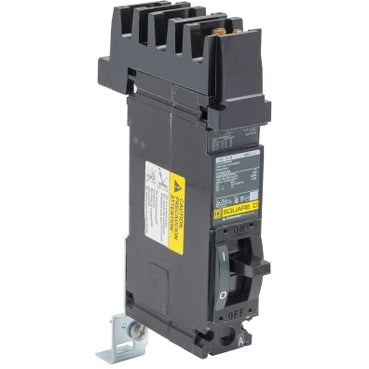

FH16100C - Square D 100A 277V 1 Pole I-Line Thermal Magnetic Circuit Breaker

FH16100C

FH16100C is a 1 pole, 100 amp, 277 volt thermal magnetic circuit breaker from Square D designed for I-Line style plug-in mounting.This FH series molded case circuit breaker features long-time and instantaneous trip functions, a 25kA interrupting rating at 240V, and is CSA certified. It supports load side lug connections and is suitable for use with AWG 14 to 1/0 copper or aluminum wiring.

• Manufacturer: Square D
• Series/Frame: FH
• Amperage: 100A
• Voltage Rating: 277VAC, 125VDC
• Poles: 1
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 25kA at 240V, 65kA at 120V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Connection Type: Load Side Lug
• Wire Gauge: AWG 14 to 1/0 Al/Cu
• Certifications: CSA, RoHS, REACh
• Temperature Rating: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FH16100C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 277
• Amperage : 100
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901238591
• GTIN : 00785901238591
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
• Wire Size : AWG 14 and AWG 1/0, Al/Cu
