Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
FG3225

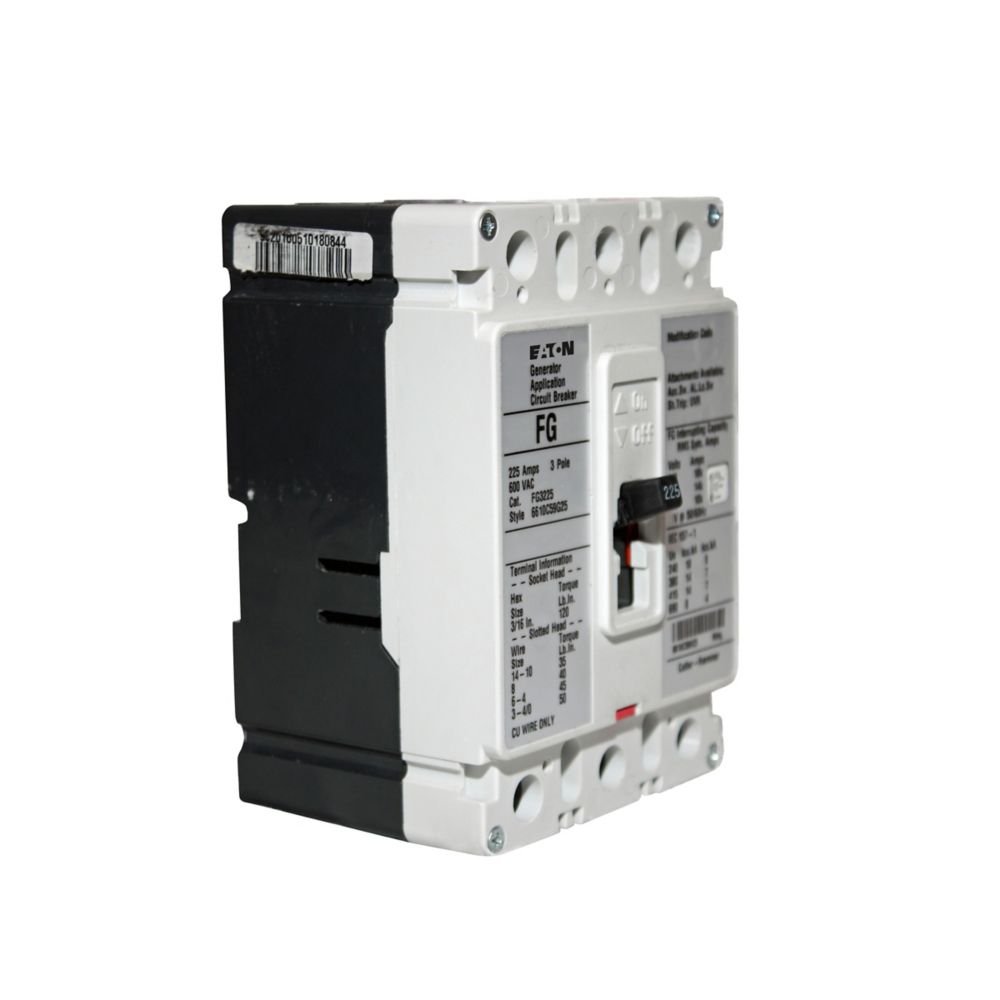

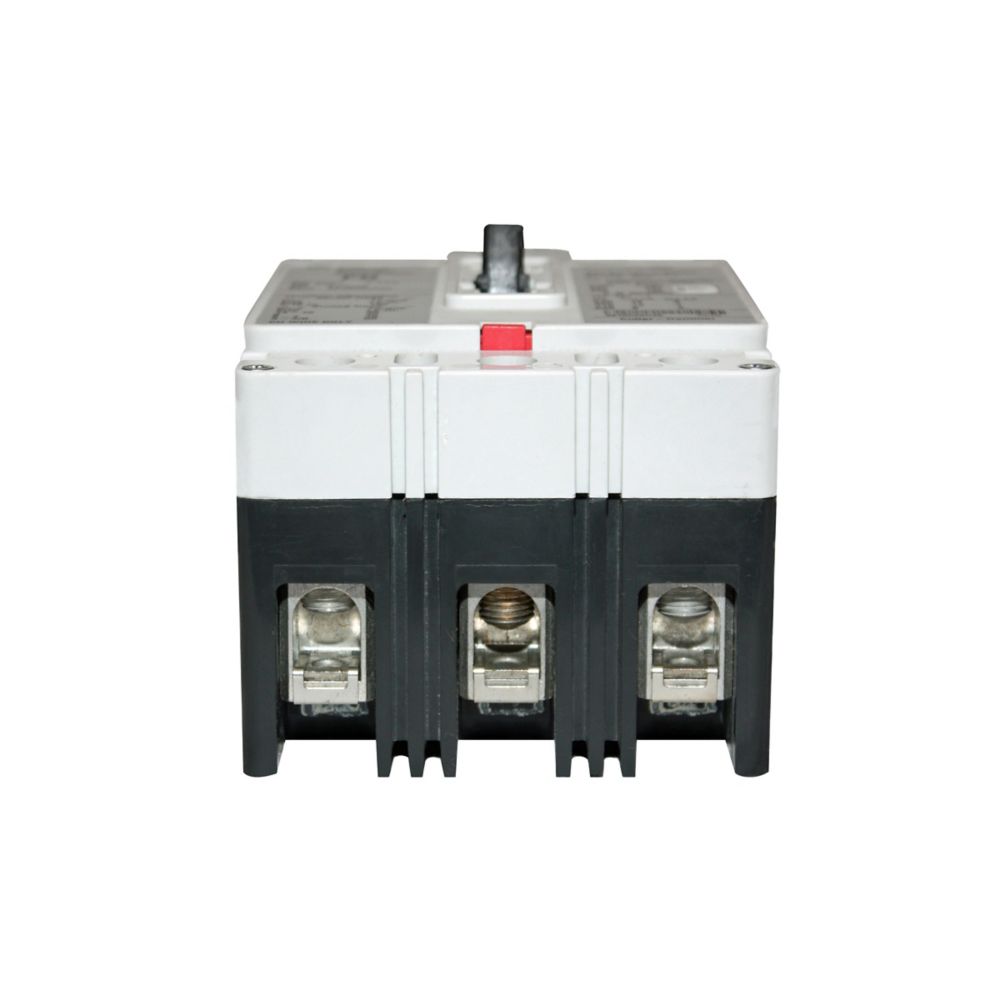

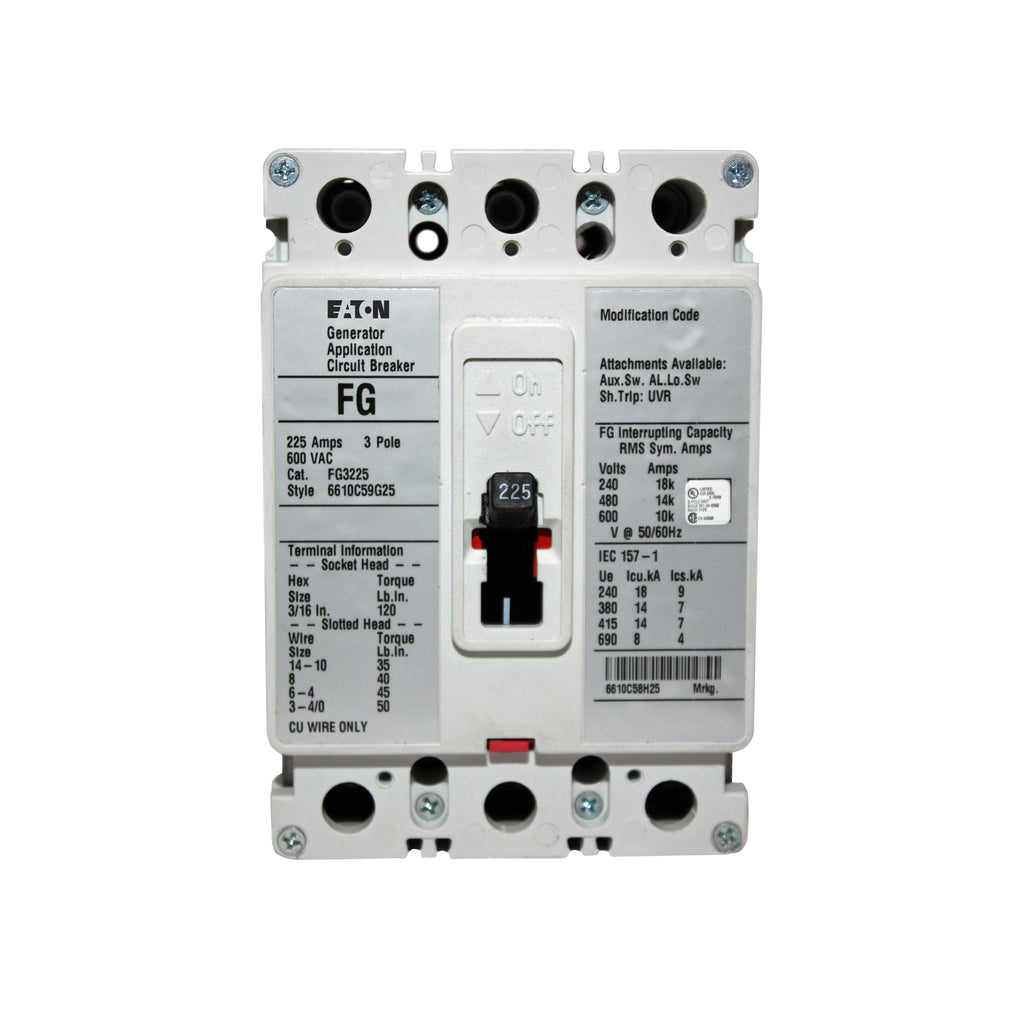

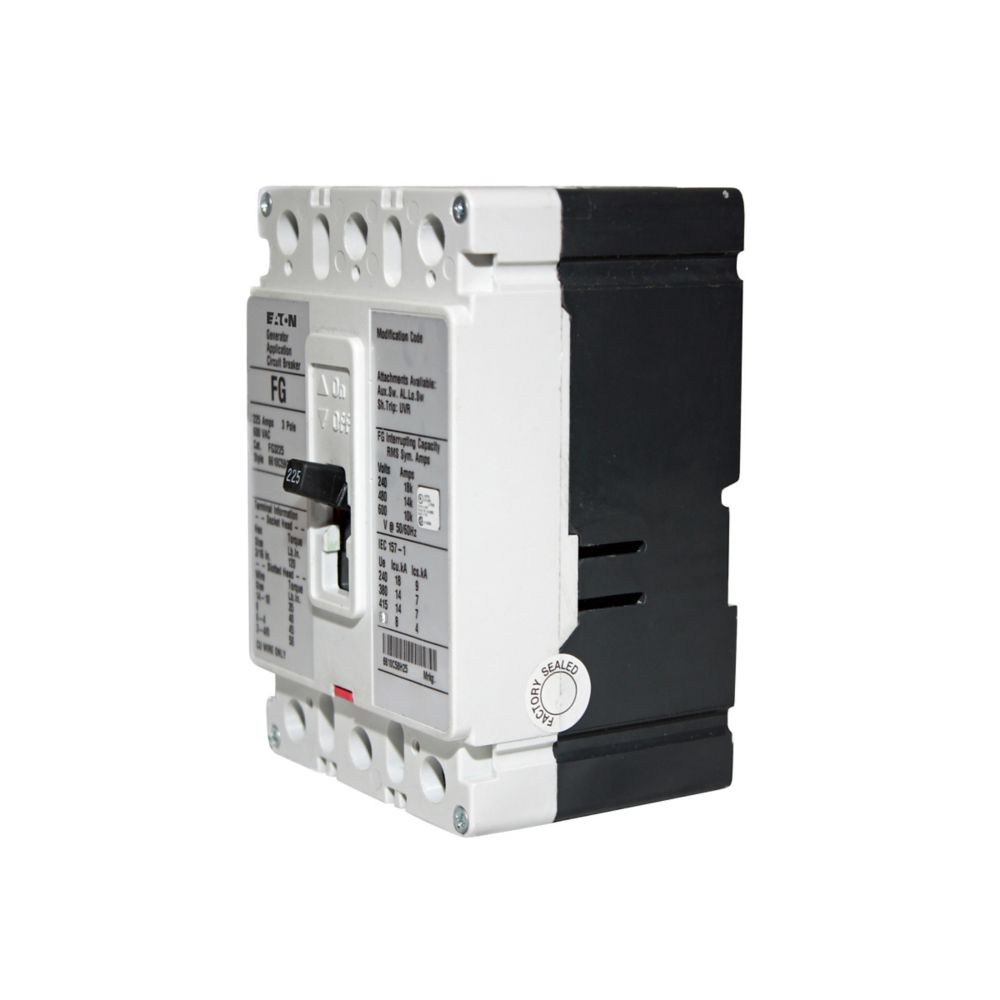

FG3225 is a Westinghouse molded case circuit breaker designed for reliable power distribution protection.This circuit breaker is part of the Eaton Cutler-Hammer Series C FG frame family, featuring a 3-pole configuration rated for 225 amps and 600 volts AC. It includes fixed thermal and magnetic trip units for dependable overload and short circuit protection. The breaker is suitable for industrial and commercial applications requiring robust interrupting capacity and durability.
- Manufacturer: Westinghouse (Eaton Cutler-Hammer Series C)
- Amperage: 225A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame/Series: FG Frame, Series C
- Trip Unit: Fixed Thermal and Magnetic
- Mounting Type: Molded Case
- Interrupt Rating: 18 kAIC at 240 VAC, 14 kAIC at 480 VAC
Specifications
- Part Number: FG3225
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FG
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 782114415283
- GTIN : 00782114415283
- Country of Origin : Dominican Republic
- Dimensions : 7.7 in x 4.9 in x 4.9 in (Length/Depth x Height x Width)
- Weight : 4.3
- Certification : UL, CSA, IEC, QPL
