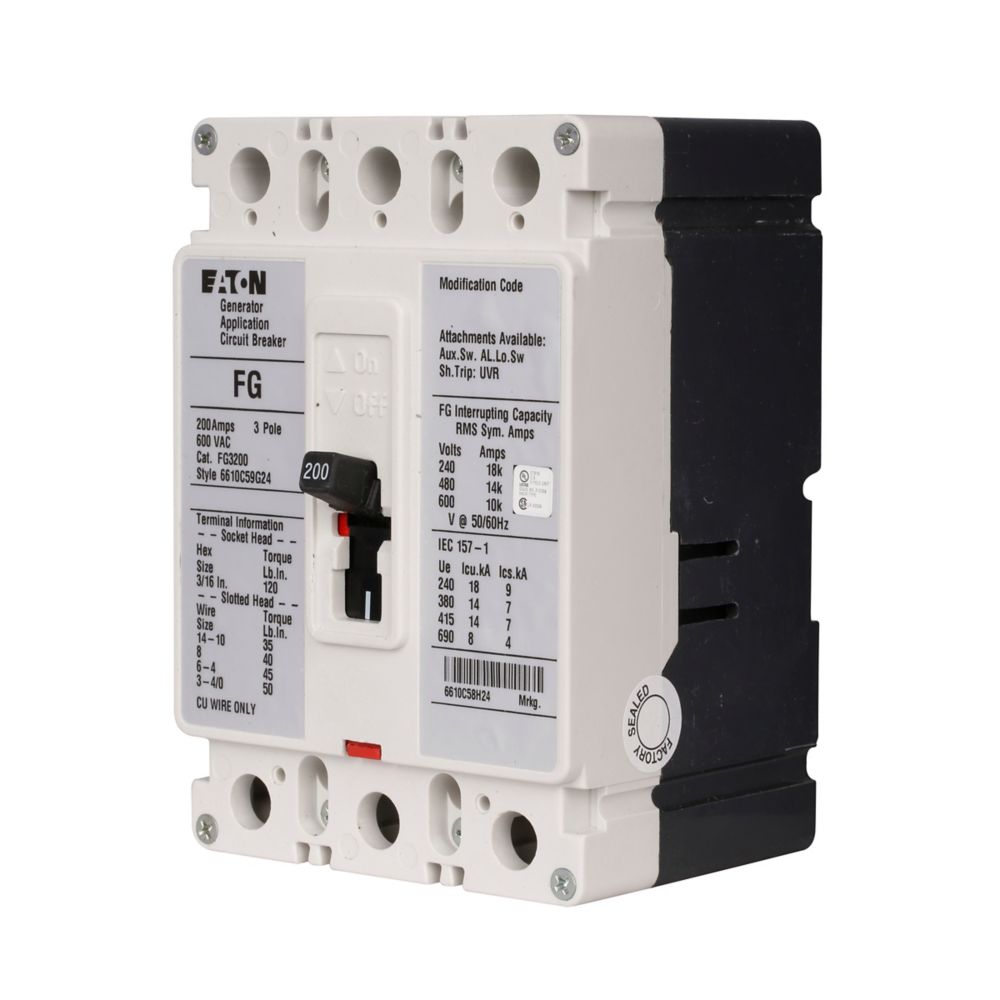

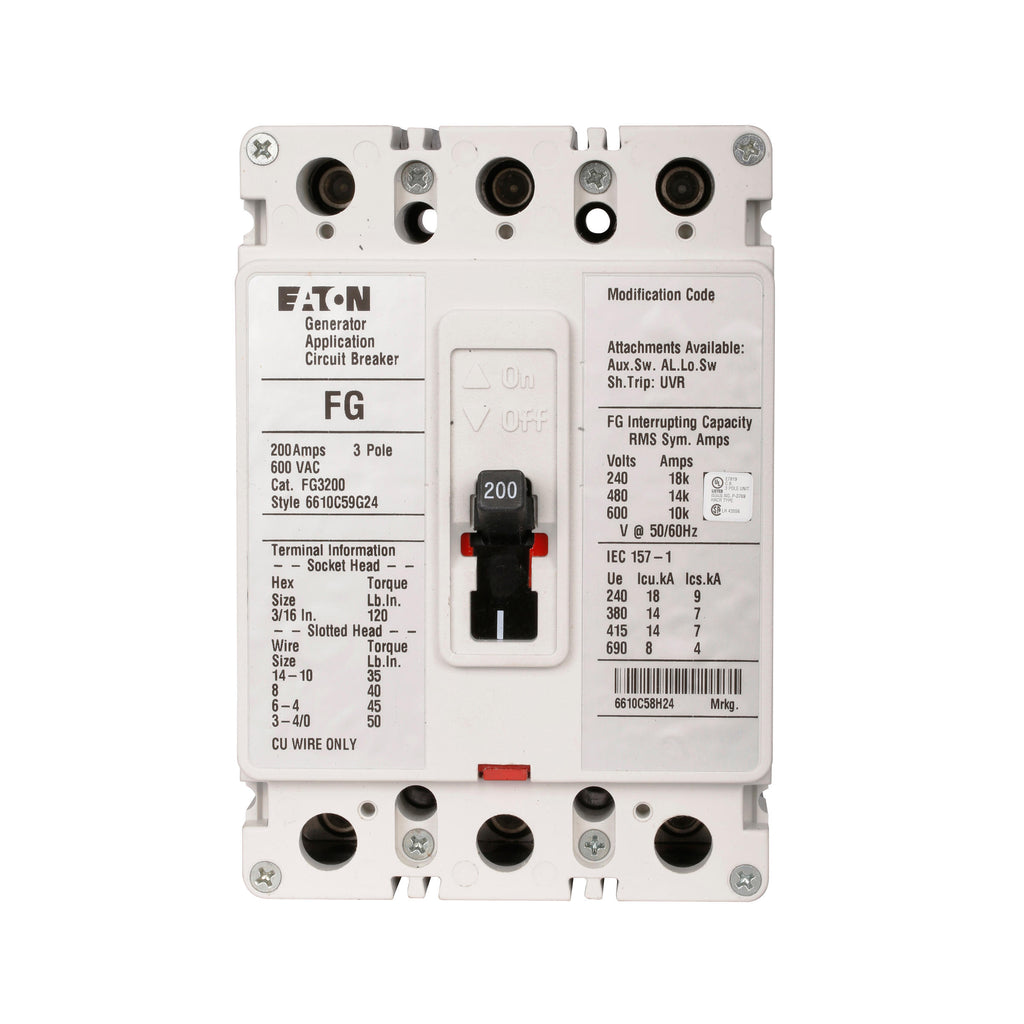

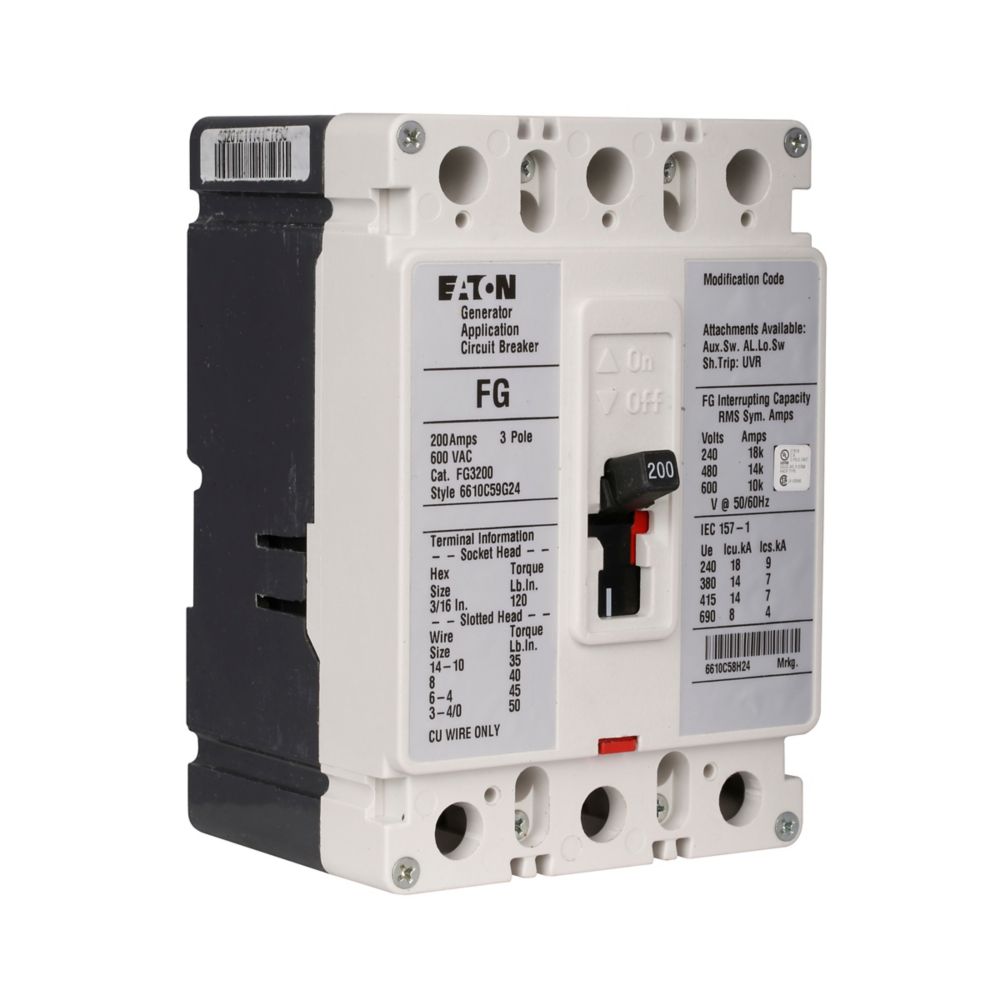

FG3200 - Eaton 200A 600V 3-Pole F-Frame Engine Generator Molded Case Circuit Breaker Fixed Thermal Magnetic Trip

FG3200

FG3200 is a three-pole, 200A, 600V engine generator molded case circuit breaker from Eaton, designed for reliable protection in generator applications. This F-frame breaker features fixed thermal and magnetic trip units for consistent performance and includes both line and load terminals for easy installation. The FG3200 is part of Eaton's Series C engine generator circuit breaker line, offering robust protection with a 18 kAIC interrupt rating at 240V AC and 14 kAIC at 480V AC. It is reverse function capable and built to meet demanding generator requirements with a fixed pickup and 60 Hz frequency rating.

• Part Number: FG3200
• Manufacturer: Eaton
• Amperage Rating: 200A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Frame Type: F-Frame
• Series: Series C
• Interrupt Rating: 18 kAIC at 240V AC, 14 kAIC at 480V AC
• Generator Rating: 72 kVA/58 kW at 240V AC, 144 kVA/116 kW at 480V AC, 181 kVA/144 kW at 600V AC
• Functions: Reverse
• Frequency Rating: 60 Hz
• Terminals: Line and Load
• Trip Type: Fixed Thermal, Fixed Magnetic
• Certifications: UL Listed, CSA Certified, IEC Rated, MIL-DTL-17361
• Warranty: 1 year from installation or 18 months from shipment, whichever occurs first

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FG3200
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FG
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782114415290
• GTIN : 00782114415290
• Country of Origin : Dominican Republic
• Dimensions : 7.7 in x 4.9 in x 4.9 in (Length/Depth x Height x Width)
• Weight : 4.5
