Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
FG3200S02

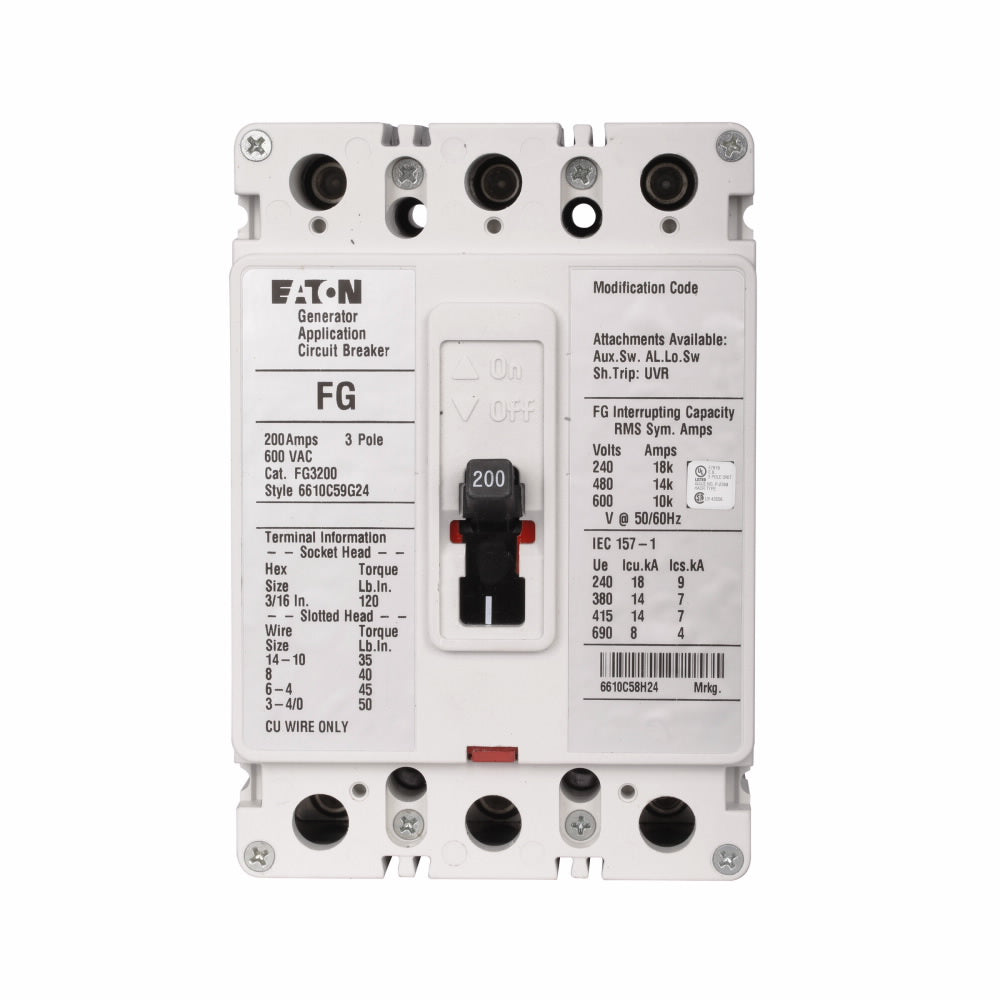

FG3200S02 is a 3-pole molded case circuit breaker from Cutler Hammer designed for reliable power distribution and protection.This circuit breaker features a 200 ampere rating and is rated for 600 volts AC. It uses a thermal magnetic trip unit with a fixed magnetic and fixed thermal trip type. The breaker is part of the FG series with an EG frame style and includes a shunt trip operating at 12-24 VAC or VDC. It is UL 489 and CSA C22.2 certified, suitable for engine generator applications.
- Amperage: 200 A
- Voltage Rating: 600 VAC
- Poles: 3
- Trip Unit: Thermal Magnetic (Fixed Thermal, Fixed Magnetic)
- Frame/Series: FG Series, EG Frame Style
- Shunt Trip Voltage: 12-24 VAC/VDC
- Mounting Type: Molded Case
- Certifications: UL 489, CSA C22.2
Specifications
- Part Number: FG3200S02
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FG
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679108604
- GTIN : 00786679108604
- Country of Origin : Dominican Republic
- Dimensions : 7 in x 5 in x 5 in (Length/Depth x Height x Width)
- Weight : 4
