Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
FG3100A12S03

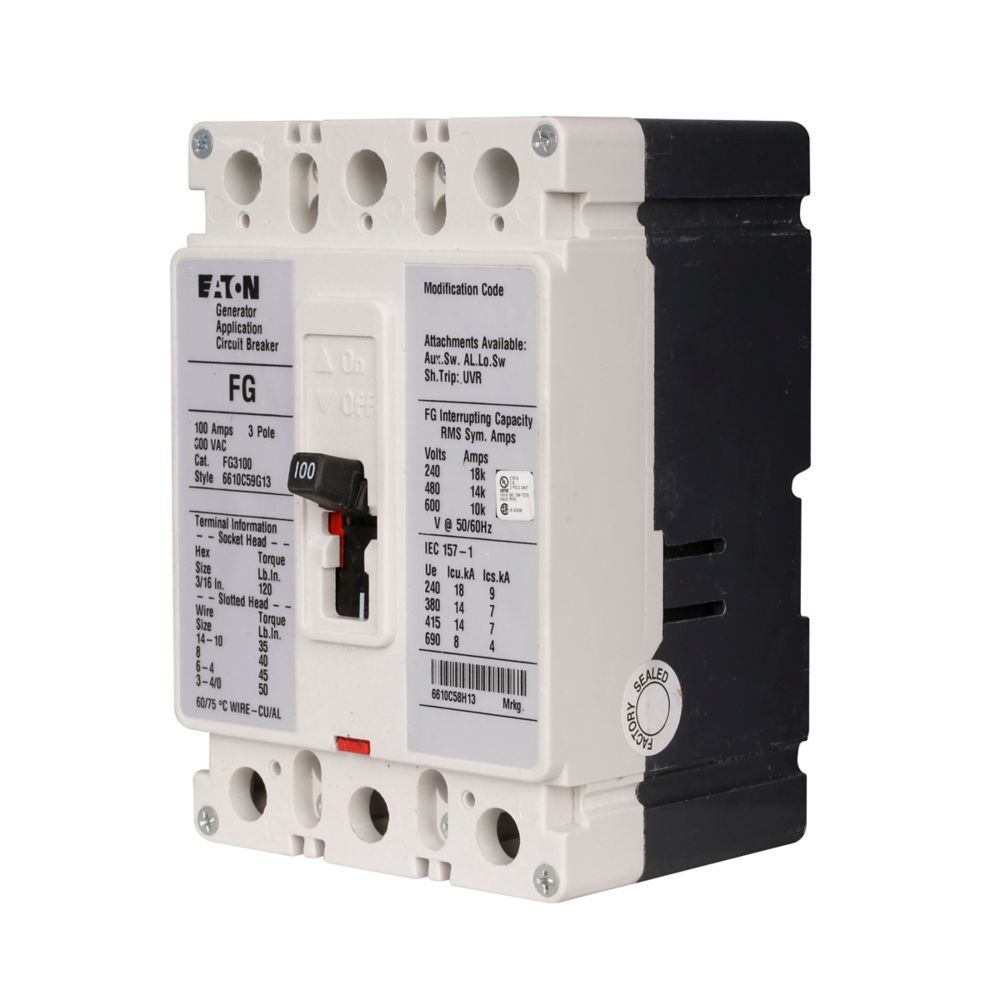

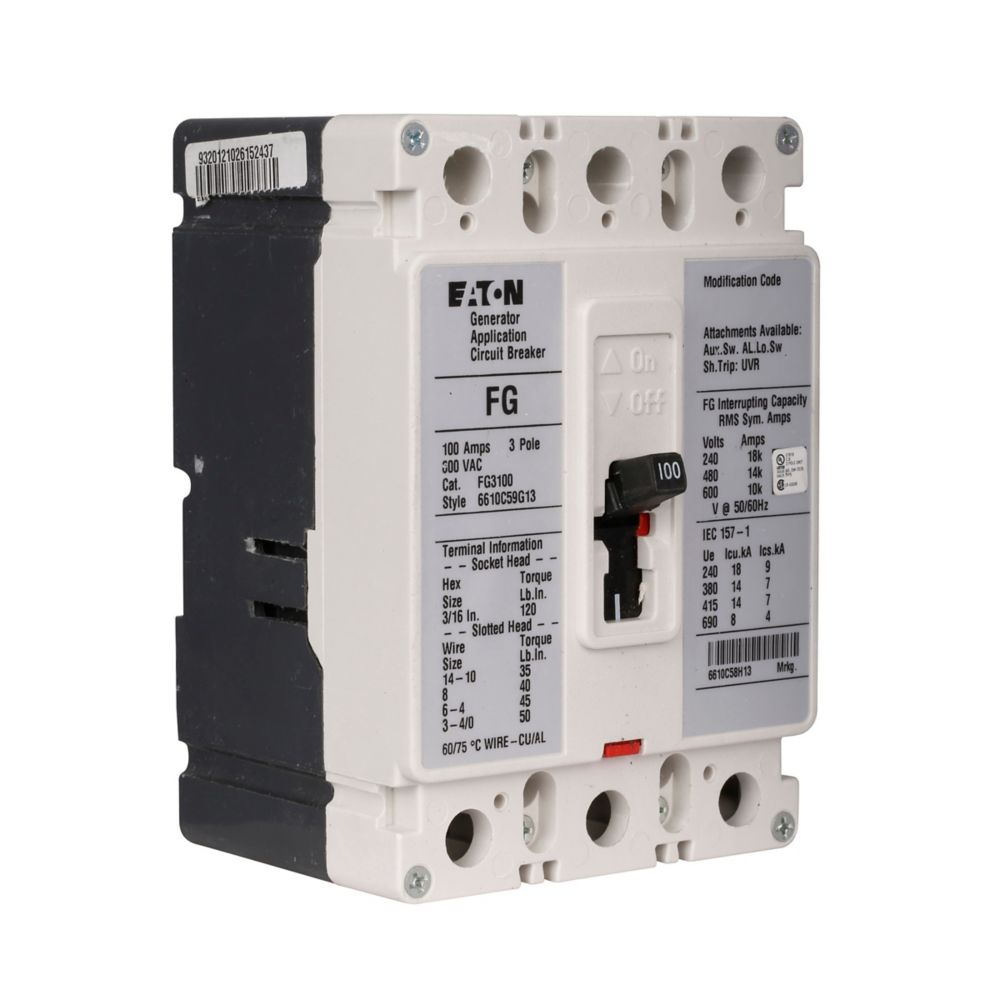

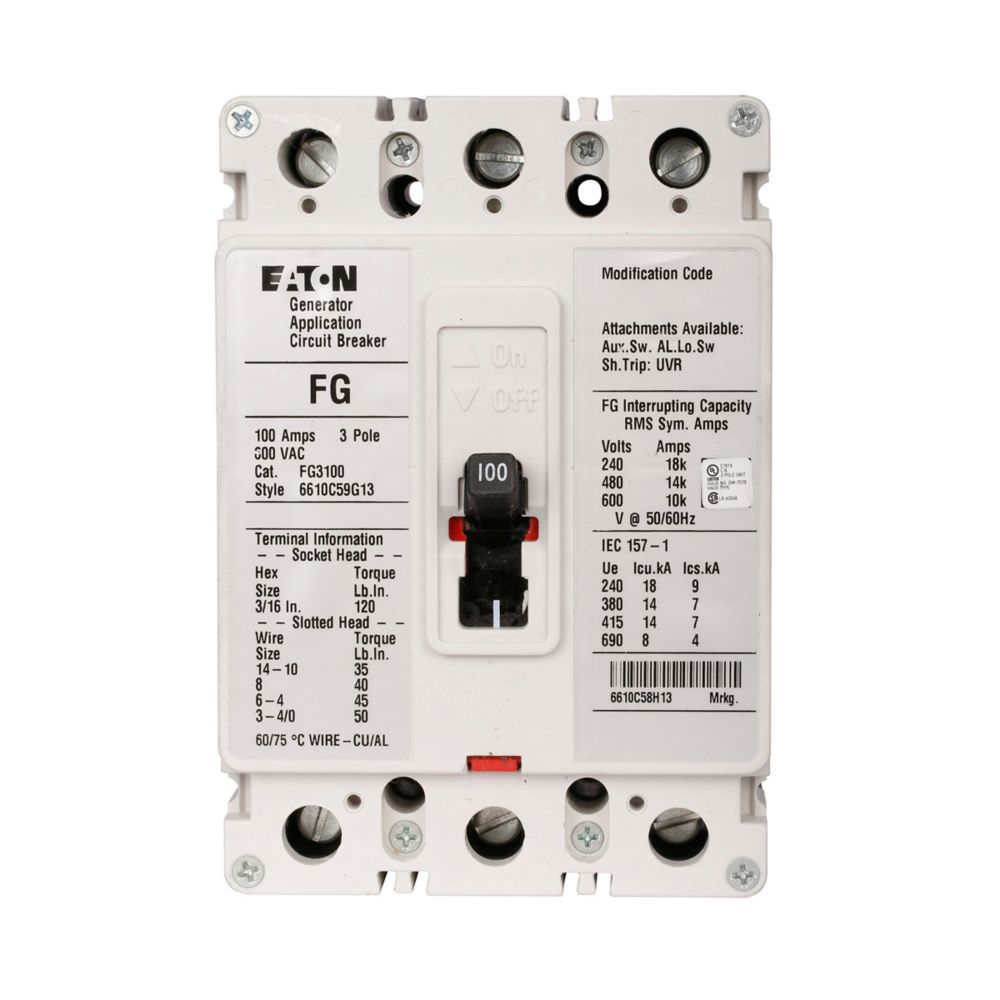

FG3100A12S03 is a 100 amp, 600 volt, 3-pole molded case circuit breaker from Eaton's Series C FG frame. It features fixed thermal and magnetic trip units for reliable protection.This circuit breaker is designed for industrial and commercial electrical distribution with a 600 VAC maximum voltage rating and a 100 ampere current rating. It includes a fixed trip type T186 and offers interrupt ratings suitable for various applications. The breaker is UL listed and built to Eaton's high standards for safety and performance.
- Amperage: 100 A
- Voltage Rating: 600 VAC
- Poles: 3
- Series/Frame: Series C FG Frame
- Trip Type: Fixed Thermal and Magnetic (T186)
- Interrupt Rating: 18 kAIC at 240 VAC, 14 kAIC at 480 VAC
- Mounting Type: Fixed
- UL Listed
- Manufacturer: Eaton
Specifications
- Part Number: FG3100A12S03
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Feed-Thru
Product Data
- UPC : 786676021586
- GTIN : 00786676000000
- Dimensions : 7 in x 6 in x 5 in (Length/Depth x Height x Width)
- Weight : 4
