Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
FG3045S02

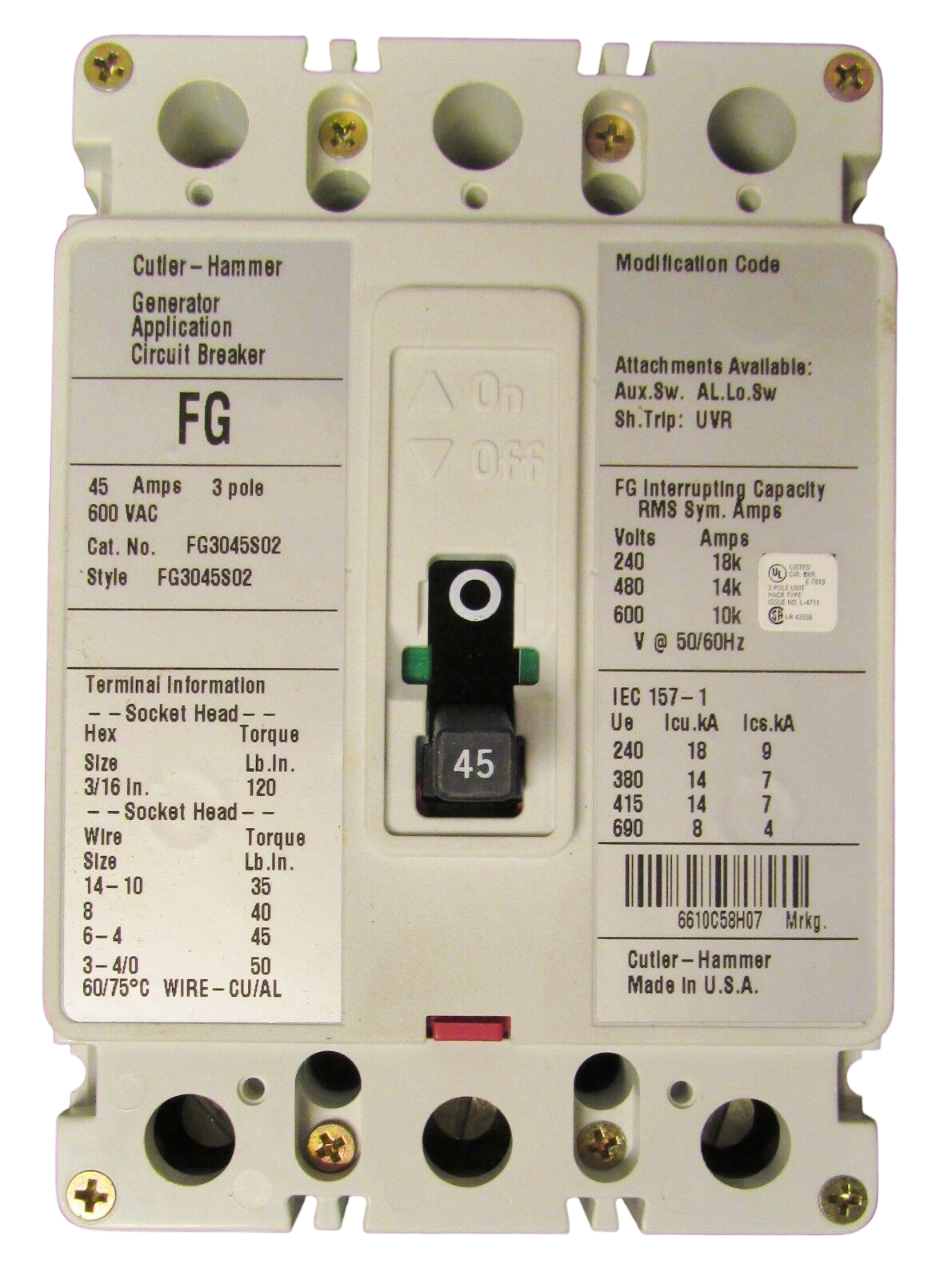

FG3045S02 is an Eaton Series C complete engine generator molded case circuit breaker designed for generator protection applications.
This FG frame circuit breaker features a fixed thermal and magnetic trip unit with non-interchangeable design, rated for 45 amperes at 40 degrees Celsius. The breaker operates at 600 VAC and 50/60 Hz with line and load terminals. It provides an interrupt rating of 18 kA at 240 VAC and 14 kA at 480 VAC, delivering reliable protection in demanding generator environments. The patented contact design features high-speed blow-open action for superior performance and durability.
- Amperage Rating: 45 Amp
- Voltage Rating: 600 VAC
- Poles: 3 Pole
- Frame Type: FG Frame
- Trip Unit: Fixed Thermal Magnetic
- Interrupt Rating: 18 kA @ 240V, 14 kA @ 480V
- Frequency: 50/60 Hz
- UL Listed: UL 489
- Application: Engine Generator
- Terminal Configuration: Line and Load
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FG3045S02
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FG
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 4
