Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Panel Mount
Description
FDPW365J

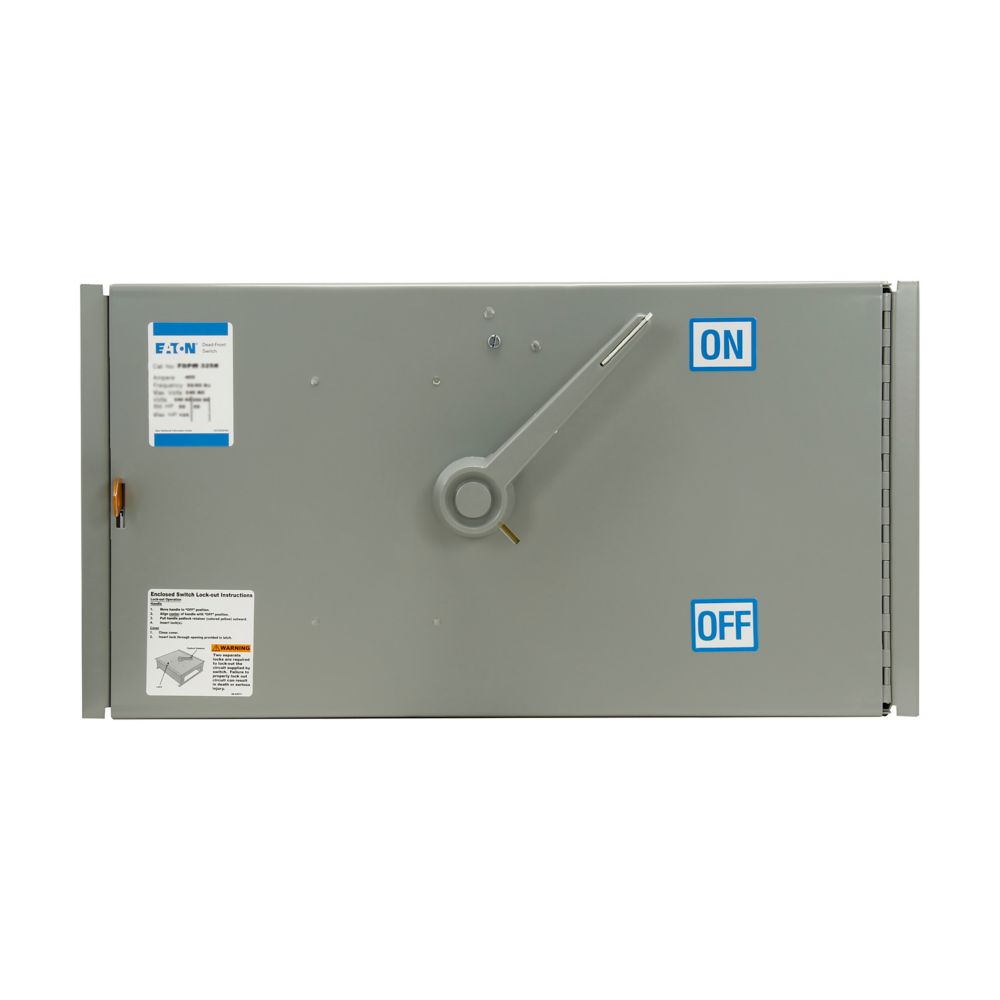

FDPW365J is a Cutler Hammer Type FDPW fusible panelboard switch rated for 400 amps, 600 volts, and 3 poles with Class J fuse provision.This switch is designed for panel mount applications with a NEMA 1 rating and an interrupt rating of 200 kAIC. It supports wire sizes from (1) 250-750 kcmil or (2) #3/0 AWG-250 kcmil and has a horsepower rating of 125 hp at 240 Vac, 250 hp at 480 Vac, and 350 hp at 600 Vac. The switch is UL listed and suitable for branch circuit protection in motor control centers and panelboards.
- Key Specifications
- Amperage: 400A
- Voltage: 600 Vac
- Poles: 3
- Fuse Class: Class J
- Interrupt Rating: 200 kAIC
- Mounting Type: Panel Mount
- Horsepower Rating: 125 hp @ 240 Vac, 250 hp @ 480 Vac, 350 hp @ 600 Vac
- Wire Size: (1) 250-750 kcmil or (2) #3/0-250 kcmil
- Series/Frame: FDPW
- Certifications: UL Listed
- NEMA Rating: 1
Specifications
- Part Number: FDPW365J
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Type FDP
- Type : FDPW
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : J
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : SGLA
Product Data
- UPC : 786679783306
- GTIN : 00785901505655
- Country of Origin : Mexico
- Dimensions : 25 in x 10 in x 17 in (Length/Depth x Height x Width)
- Weight : 43
- Certification : UL Listed
