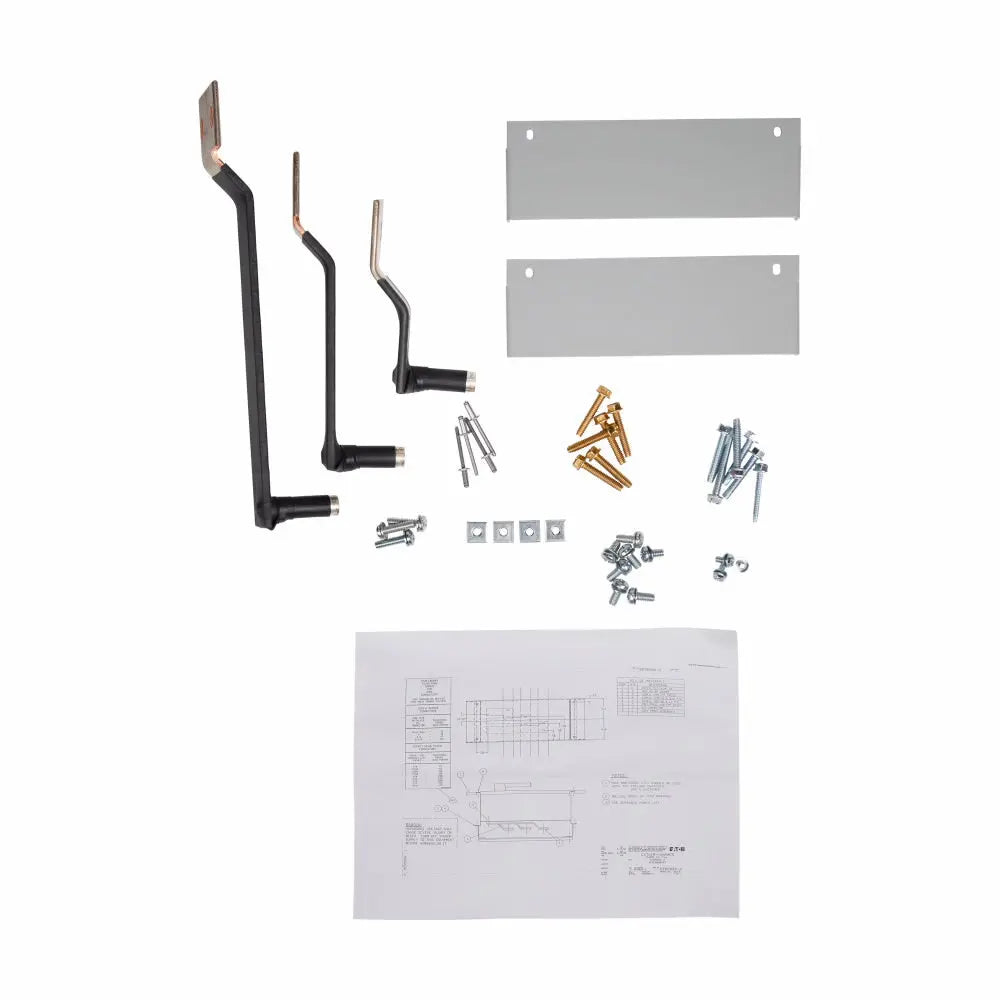

FDPBS324F - Cutler Hammer 200A 240V 3-Pole Fusible Panelboard Switch

FDPBS324F

FDPBS324F is a Type FDPB Class F fusible panelboard switch designed for commercial, industrial, and service entrance applications to protect and switch feeder and branch circuits. This three-pole disconnect switch operates at 240 V AC and 250 V DC with a 200 ampere rating and horizontal single branch mounting configuration. The switch accommodates Class F fuses rated for #4-300 kcmil conductors and delivers 200 kAIC interrupt rating at 240 V AC and 10 kAIC at 250 V DC, providing reliable short-circuit protection.

• Amperage: 200 A
• Voltage: 240 V AC / 250 V DC
• Poles: Three-pole
• Type: FDPB Class F Fusible
• Mounting: Horizontal Single Branch
• Interrupt Rating: 200 kAIC at 240 V AC, 10 kAIC at 250 V DC
• Fuse Class: Class F
• Conductor Range: #4-300 kcmil
• Horsepower: 60 HP at 240 V AC, 40 HP at 250 V DC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FDPBS324F
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Type FDP
• Type : FDPBS
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Breaker Type : FD
• Configuration : Single
• Switch Style : Breaker Type
• Nema Rating : 1
• Compatible Frames : FD

Product Data

• UPC : 782114895184
• GTIN : 00782114895184
• Country of Origin : Mexico
• Dimensions : 22 in x 10 in x 9.5 in (Length/Depth x Height x Width)
• Weight : 23
• Certification : UL Listed
