Product Info
- Manufacturer:Eaton
- Sub-Category:Panel Mount
Description
FDP366BRDS

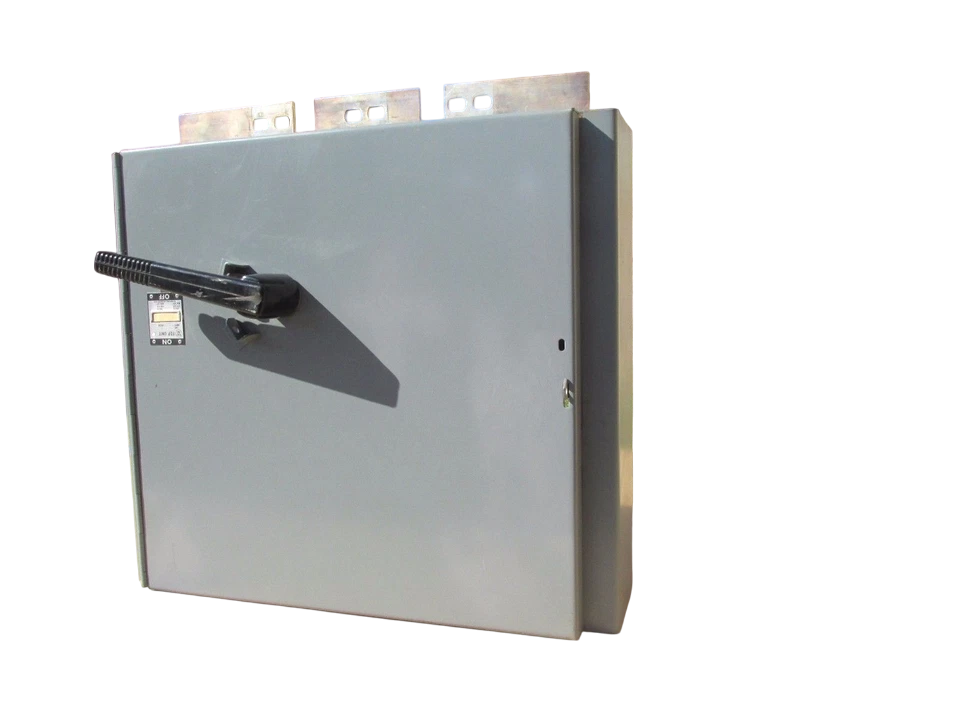

FDP366BRDS is an Eaton Type FDP fusible panelboard switch rated for 600 amperes at 600 volts AC with three poles, designed for commercial, industrial, and service entrance applications to protect and switch feeder and branch circuits. This fusible switch features 100% load break and load make capability with a maximum interrupting capacity of 200,000 A rms symmetrical at 600 VAC. The unit is constructed with pressure terminals and horizontal mounting configuration for reliable performance in panelboard and switchboard installations.
- Amperage Rating: 600 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Switch Type: Fusible Panelboard
- Interrupting Capacity: 200,000 A rms symmetrical
- Fuse Type: Class R
- Terminal Type: Pressure
- Mounting: Horizontal
- Horsepower Rating: 200 hp at 240V AC, 400 hp at 480V AC, 500 hp at 600V AC
- Conductor Capacity: #4 AWG to 600 kcmil or #3/0 AWG to 250 kcmil
Specifications
- Part Number: FDP366BRDS
- Manufacturer : Eaton
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Type FDP
- Type : FDP
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : HED
Product Data
- UPC : 078667977420
- GTIN : 00786679774205
- Weight : 85
