FDB3045 - Cutler Hammer 45A 600V 3-Pole F Frame Molded Case Circuit Breaker Thermal Magnetic

FDB3045

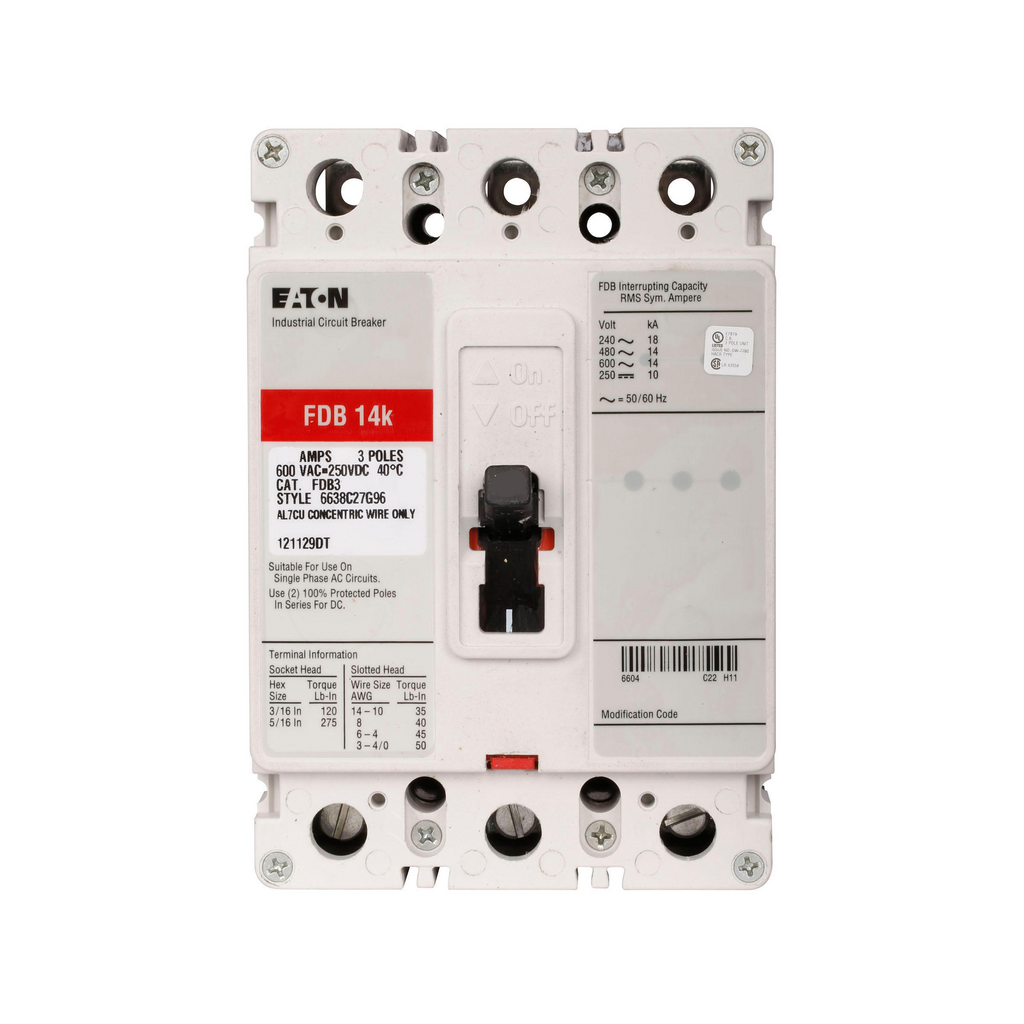

FDB3045 is a Cutler Hammer 45 Amp, 3-pole molded case circuit breaker designed for panel mounting and thermal magnetic trip protection.This Eaton Series C F-frame breaker features a fixed thermal and magnetic trip unit, rated for 600 VAC and 250 VDC operation. It has an interrupt rating of 18 kA at 240 VAC and 14 kA at 480 VAC, suitable for industrial applications. The breaker is UL and CSA certified and uses standard pressure line and load terminals.

• Amperage: 45 Amps
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Mounting Type: Panel mount
• Interrupt Rating: 18 kA at 240 VAC, 14 kA at 480 VAC
• Series/Frame: Eaton Series C, F Frame (FDB)
• Trip Unit: Fixed thermal magnetic
• Connection: Standard pressure terminals
• Certifications: UL Listed, CSA
• Dimensions: Approx. 4.13" W x 3.38" D x 6" H
• Weight: Approx. 4.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FDB3045
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FDB
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679312520
• GTIN : 00786679312520
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
