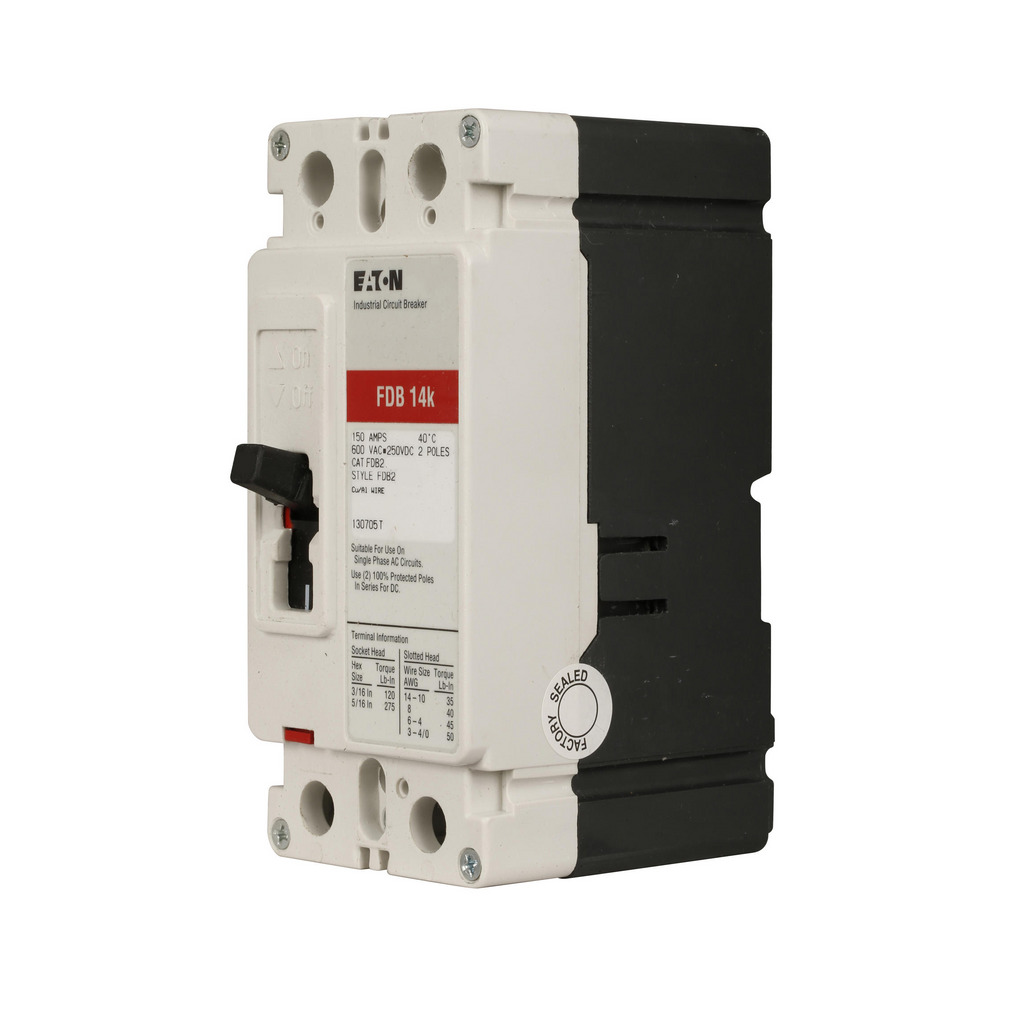

FDB2030 - Cutler Hammer 30A 600VAC 2 Pole Series C Molded Case Circuit Breaker

FDB2030

FDB2030 is a Cutler Hammer Series C molded case circuit breaker designed for reliable protection in electrical systems.This 2 pole, 30 ampere breaker features a thermal magnetic trip unit with fixed thermal and magnetic trip characteristics. It is rated for 600 VAC and 250 VDC operation, with a 14kA interrupting rating at 480 VAC and 18kA at 240 VAC. The breaker is panel mount type with standard pressure line and load terminals, and it meets UL and CSA certifications. The F frame type breaker includes long-time and instantaneous trip functions and is suitable for industrial applications.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Series: C, Type FDB
• Amperage: 30A
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 2
• Interrupt Rating: 14kA @ 480 VAC, 18kA @ 240 VAC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting Type: Panel Mount
• Frame Type: F Frame
• Terminal Type: Standard Pressure Line and Load Terminals
• Certifications: UL, CSA
• Dimensions: Approx. 6" H x 3.38" D x 2.75" W
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FDB2030
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FDB
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 14kA@600V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 786679312391
• GTIN : 00786679312391
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL Listed
