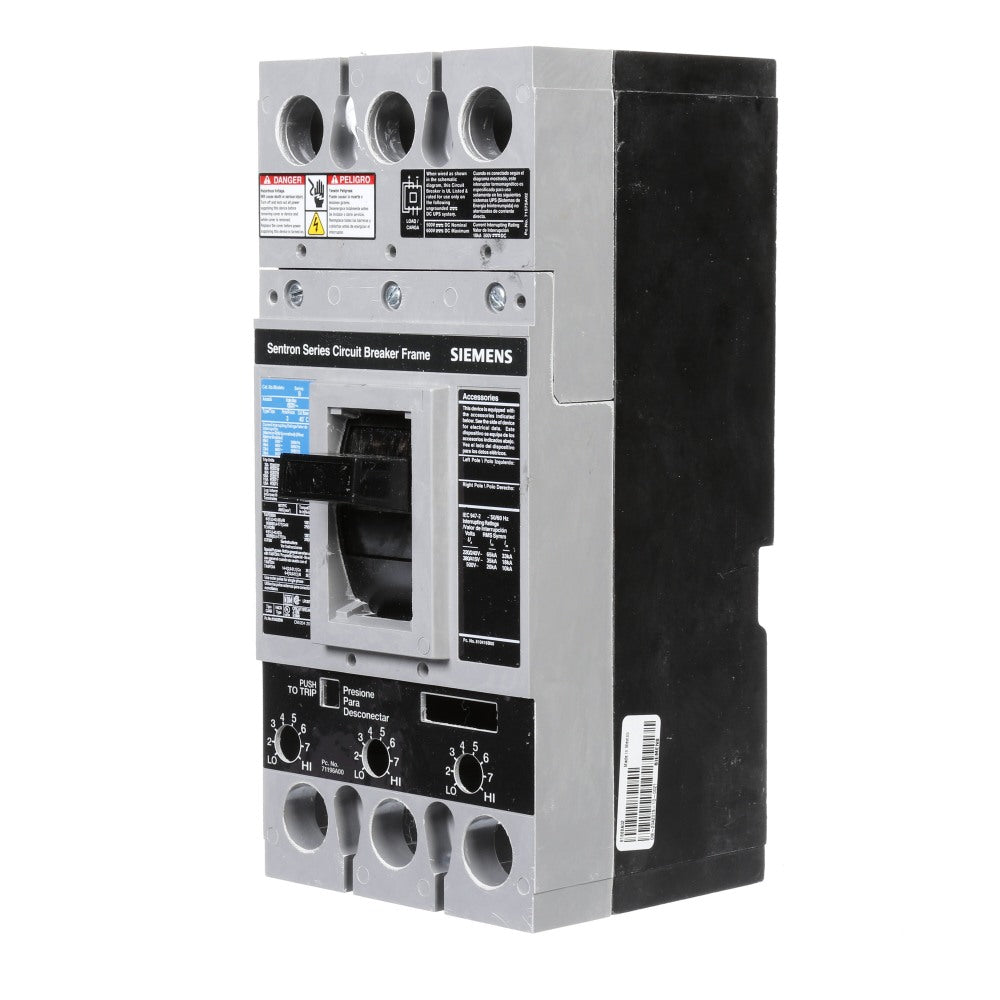

FD63B250L - Siemens 250A 600V 3-Pole FD Frame Molded Case Circuit Breaker Thermal Magnetic

FD63B250L

FD63B250L is a Siemens 250 amp, 600 volt, 3-pole molded case circuit breaker with thermal-magnetic trip unit designed for reliable circuit protection.This Siemens FD frame breaker features a standard 40¡C thermal-magnetic trip unit with a breaking capacity of 22 kA at 600V and 35 kA at 480V. It is UL 489 and IEC 60947-2 certified, ensuring compliance with industry safety standards. The breaker is designed for feed-thru connection and does not include lugs. It is suitable for low voltage applications requiring robust and standard interrupting performance.

Key Specifications
• Amperage: 250A
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: FD
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 22 kA at 600V, 35 kA at 480V
• Mounting Type: Feed-Thru
• Certifications: UL 489, IEC 60947-2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Line and load side lugs included (TA1FD350A)




Specifications

• Part Number: FD63B250L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643005358
• GTIN : 00783643005358
• Country of Origin : Mexico
• Dimensions : 10.63 x 5.906 x 6.693 inch
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
