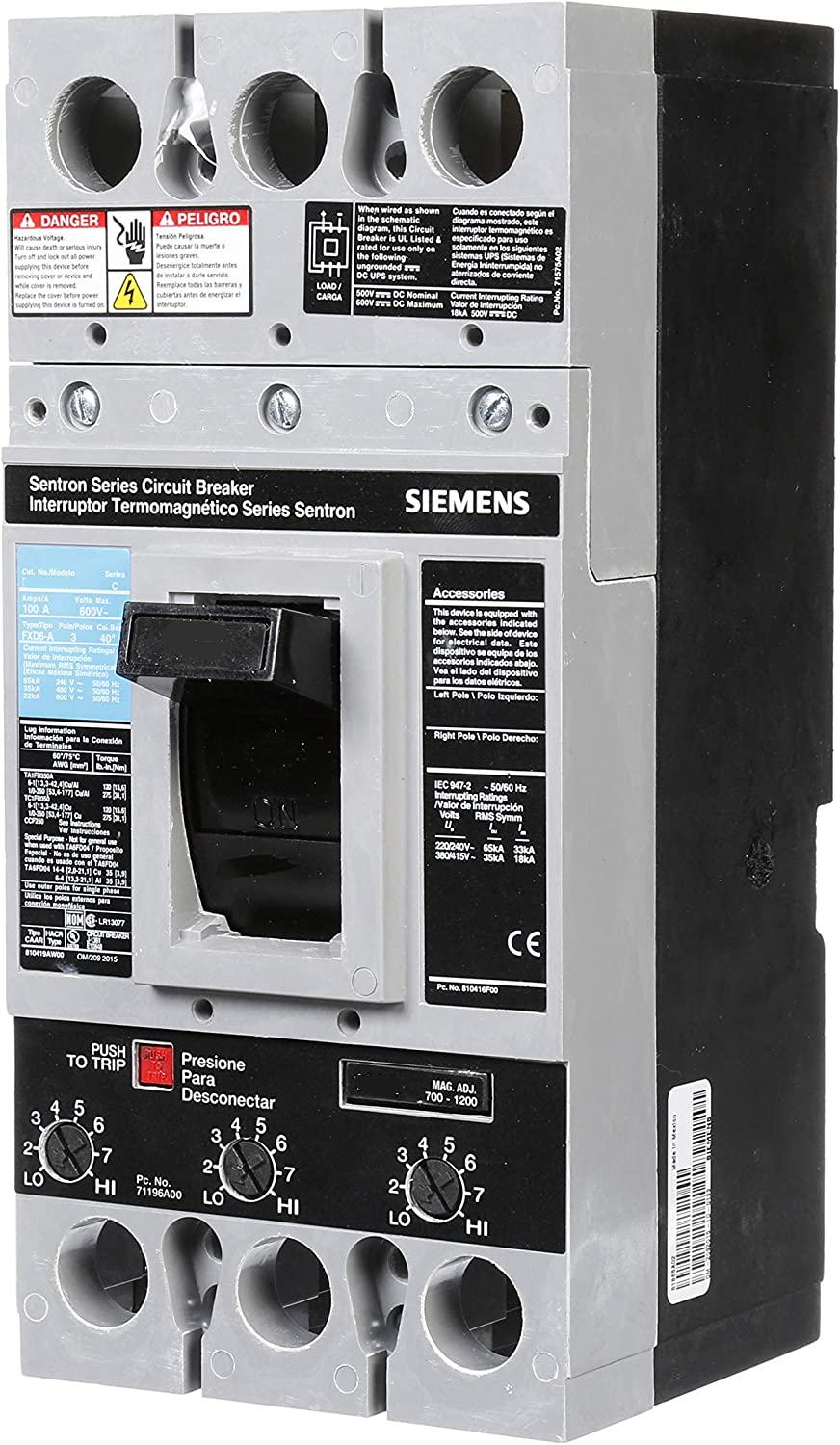

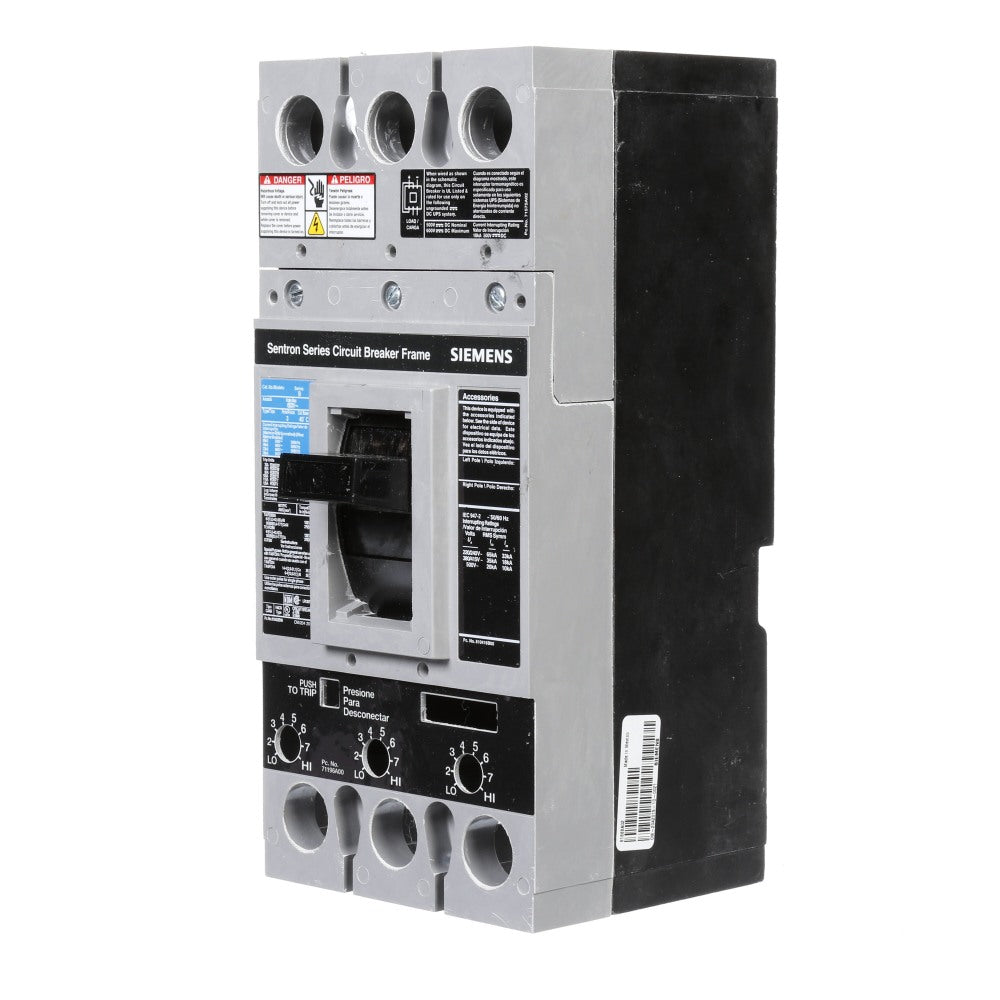

FD63B225L - Siemens 225A 600V 3 Pole Molded Case Circuit Breaker FD Frame

FD63B225L

FD63B225L is a Siemens 3 pole molded case circuit breaker rated for 225 amps and 600 volts, designed for reliable power distribution protection.This Siemens FD63B225L circuit breaker features a 3-pole configuration with a 225 ampere rating and 600 volt capacity. It has a frame type FD and offers an interrupt rating of 22kA at 600V and 35kA at 480V. The breaker includes an interchangeable trip unit and is suitable for bolt-on mounting. It provides thermal/magnetic trip protection and meets industry certifications for safety and performance.

Key Specifications
• Amperage: 225A
• Voltage: 600V
• Poles: 3
• Frame/Series: FD
• Interrupt Rating: 22kA @ 600V, 35kA @ 480V
• Trip Unit: Interchangeable Thermal/Magnetic
• Mounting Type: Bolt-On
• Phase: 3
• Connection Type: Bolt-On
• Certifications: Industry Standard Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Line and load side lugs included (TA1FD350A)




Specifications

• Part Number: FD63B225L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643005341
• GTIN : 00783643005341
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
