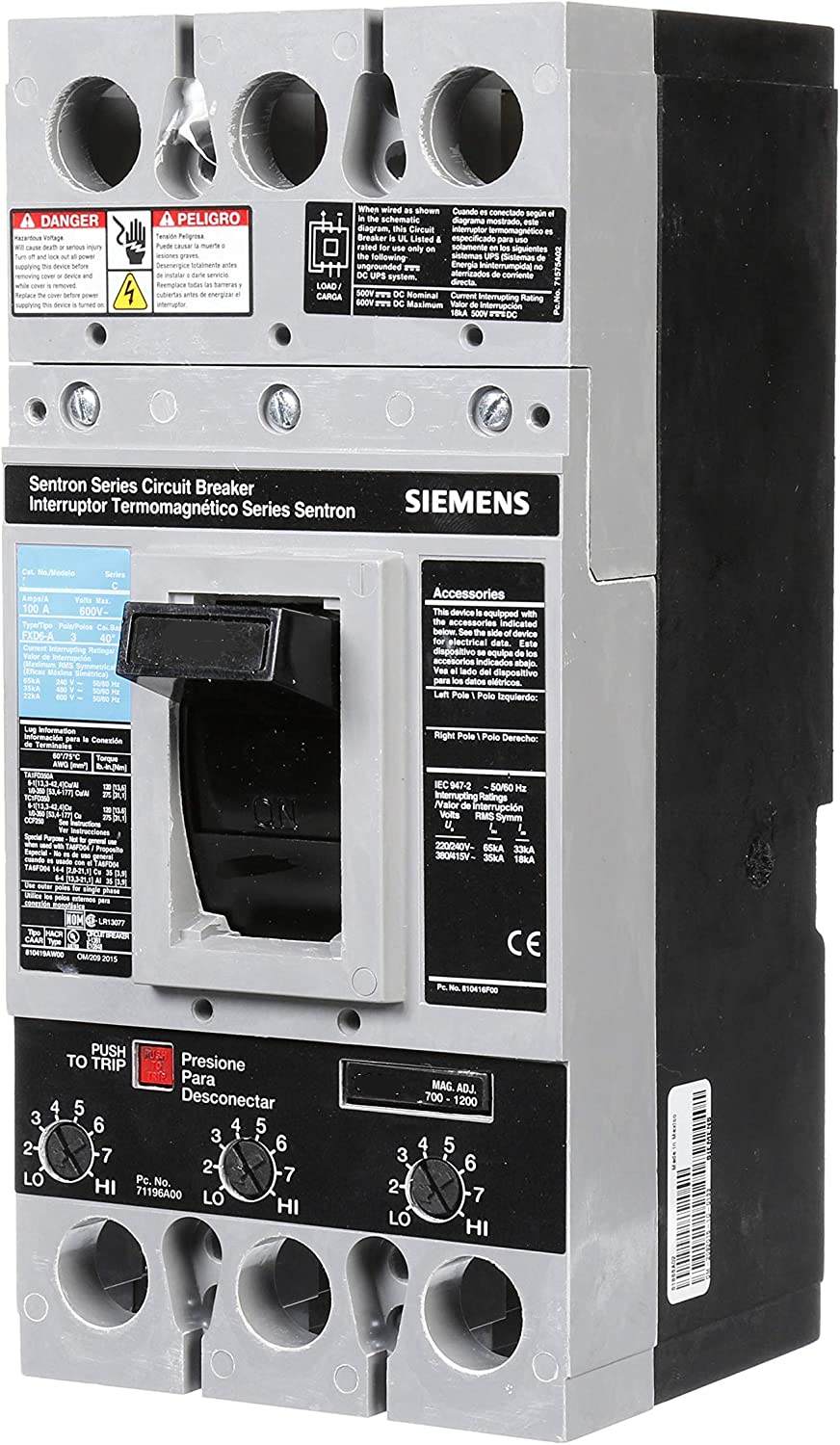

FD63B090L - Siemens 90A 600V 3-Pole FD Frame Molded Case Circuit Breaker Thermal Magnetic Trip

FD63B090L

FD63B090L is a Siemens FD Frame molded case circuit breaker designed for low voltage power distribution applications.This circuit breaker features a 90 ampere rating, 600 VAC/500 VDC voltage capacity, and 3 poles. It has a thermal magnetic trip unit and a 22 kA interrupt rating at 600 volts. The breaker uses a bolt-on mounting type and is part of the Siemens FD series frame, suitable for industrial and commercial electrical protection.

Key Specifications
• Amperage: 90 A
• Voltage: 600 VAC / 500 VDC
• Poles: 3
• Interrupt Rating: 22 kA at 600 V
• Frame/Series: FD Frame
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Line and load side lugs included (TA1FD350A)




Specifications

• Part Number: FD63B090L
• Manufacturer : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643005273
• GTIN : 00783643005273
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 10.031
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : UL, CSA, IEC
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL
