Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FD62B250

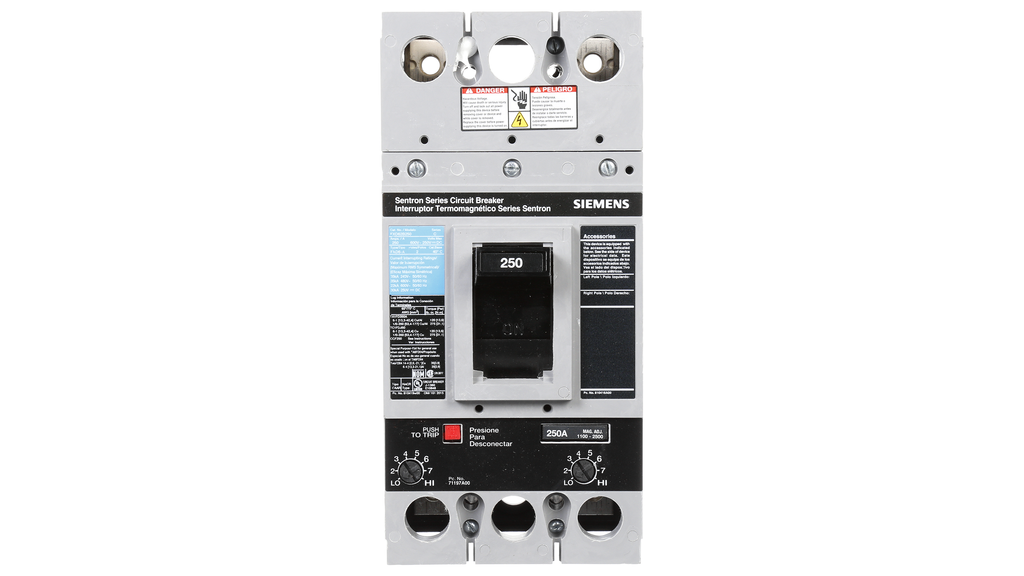

FD62B250 is a Siemens Sentron FD-frame low voltage molded case circuit breaker rated for 250 amperes at 600 VAC with a 22 kA interrupt rating and thermal/magnetic trip unit. This 2-pole breaker is designed for industrial and commercial power distribution applications requiring reliable overcurrent protection. The FD62B250 features line and load side lugs for secure terminal connections and is part of the Sentron FD General frame series, delivering consistent performance in demanding electrical systems.
- Amperage Rating: 250 A
- Voltage: 600 VAC / 250 VDC
- Poles: 2
- Interrupt Rating: 22 kA RMS Symmetrical
- Series: Sentron FD-Frame
- Trip Unit: Thermal/Magnetic
- Breaker Type: Low Voltage Molded Case
- Terminal Configuration: Line and Load Side Lugs
- Wire Range: #6-350 kcmil Cu / #4-350 kcmil Al
Specifications
- Part Number: FD62B250
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FD
- Voltage : 600
- Amperage : 250
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211407
- GTIN : 00783643211407
- Country of Origin : Mexico
- Weight : 8.201
