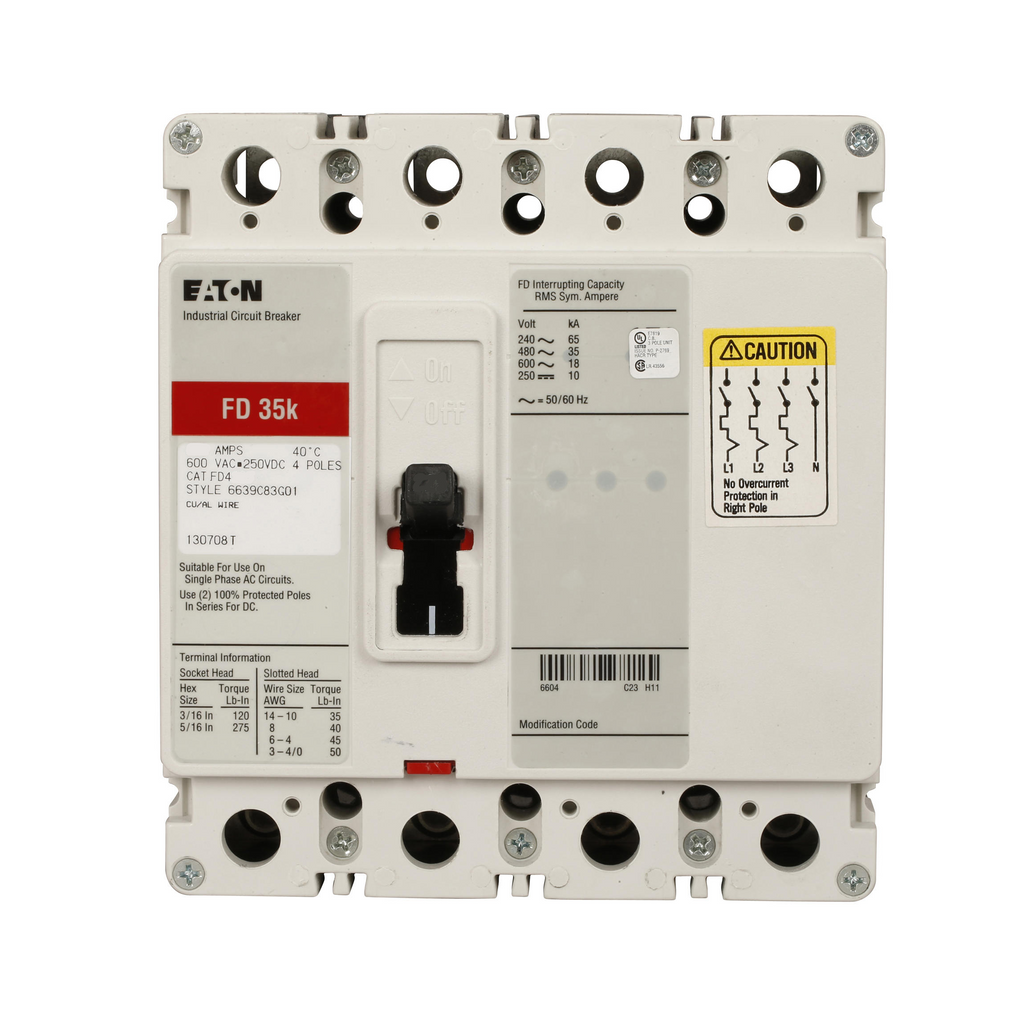

FD4020 - Eaton 20 Amp 600 Vac 4 Pole Molded Case Circuit Breaker Series C HFD Frame

FD4020

This Eaton FD4020 circuit breaker is designed for industrial and commercial power distribution applications. It supports a maximum voltage of 600 Vac and 250 Vdc, with a 4-pole configuration suitable for three-phase systems. The breaker has a fixed thermal/fixed magnetic trip type (T186) and interrupt ratings up to 65 kA at 480 Vac and 100 kA at 240 Vac, ensuring high fault current interruption capability. It mounts in standard panel or switchgear applications and meets industry certifications for safety and performance.

Key Specifications
• Amperage: 20 A
• Voltage Rating: 600 Vac / 250 Vdc
• Poles: 4
• Series/Frame: Eaton Series C HFD
• Trip Unit: Fixed Thermal / Fixed Magnetic (T186)
• Interrupt Rating: 65 kA @ 480 Vac, 100 kA @ 240 Vac
• Mounting Type: Panel or Switchgear Mount
• Circuit Breaker Type: Molded Case
• Certifications: Industry Standard Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FD4020
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 4
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic



Product Data

• Weight : 5
