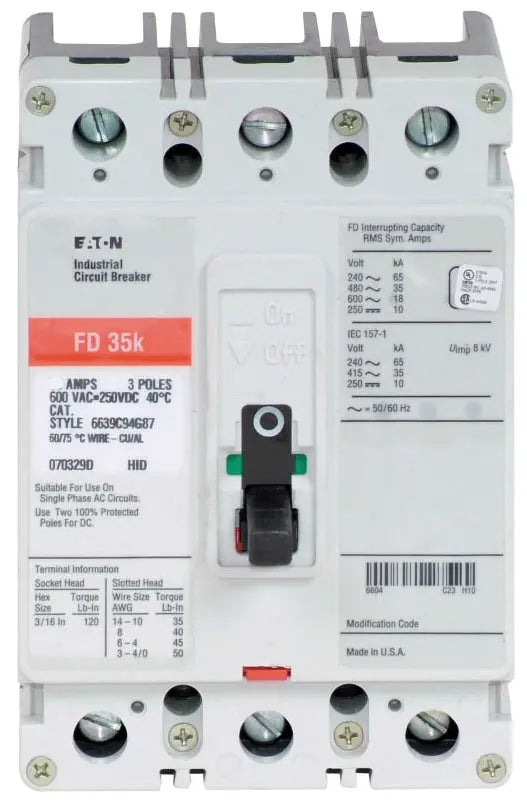

FD3040LBP10 - Eaton Series C F-Frame 40A 3-Pole Molded Case Circuit Breaker 600VAC 250VDC

FD3040LBP10

FD3040LBP10 is a Series C F-frame molded case circuit breaker from Eaton, designed for reliable protection in industrial and commercial power distribution systems. This three-pole breaker features a 40A amperage rating and is rated for 600 Vac and 250 Vdc, making it suitable for a wide range of applications. The breaker is equipped with a fixed thermal and fixed magnetic trip unit for precise overload and short-circuit protection. It is UL listed and supports line and load connections for flexible installation. The robust F-frame design ensures durability and compatibility with standard panel layouts. This Eaton Series C circuit breaker is engineered for high performance and safety in demanding environments. The breaker's interrupt rating is 18 kAIC at 240 Vac and 14 kAIC at 480 Vac, providing strong protection against short circuits. The three-pole configuration allows for balanced three-phase protection, and the fixed thermal-magnetic trip unit ensures consistent operation. The breaker is designed for easy mounting and integration into existing systems, with a compact footprint and standard terminal connections.

• Part Number: FD3040LBP10
• Manufacturer: Eaton
• Series: Series C
• Frame Type: F-frame
• Amperage Rating: 40 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: 3
• Interrupt Rating: 18 kAIC at 240 Vac, 14 kAIC at 480 Vac
• Mounting Type: Standard panel mount
• Terminal Type: Line and load
• Frequency Rating: 50/60 Hz
• Tripping Unit: Fixed thermal, fixed magnetic
• Certification: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD3040LBP10
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 2
