Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
FD3040L

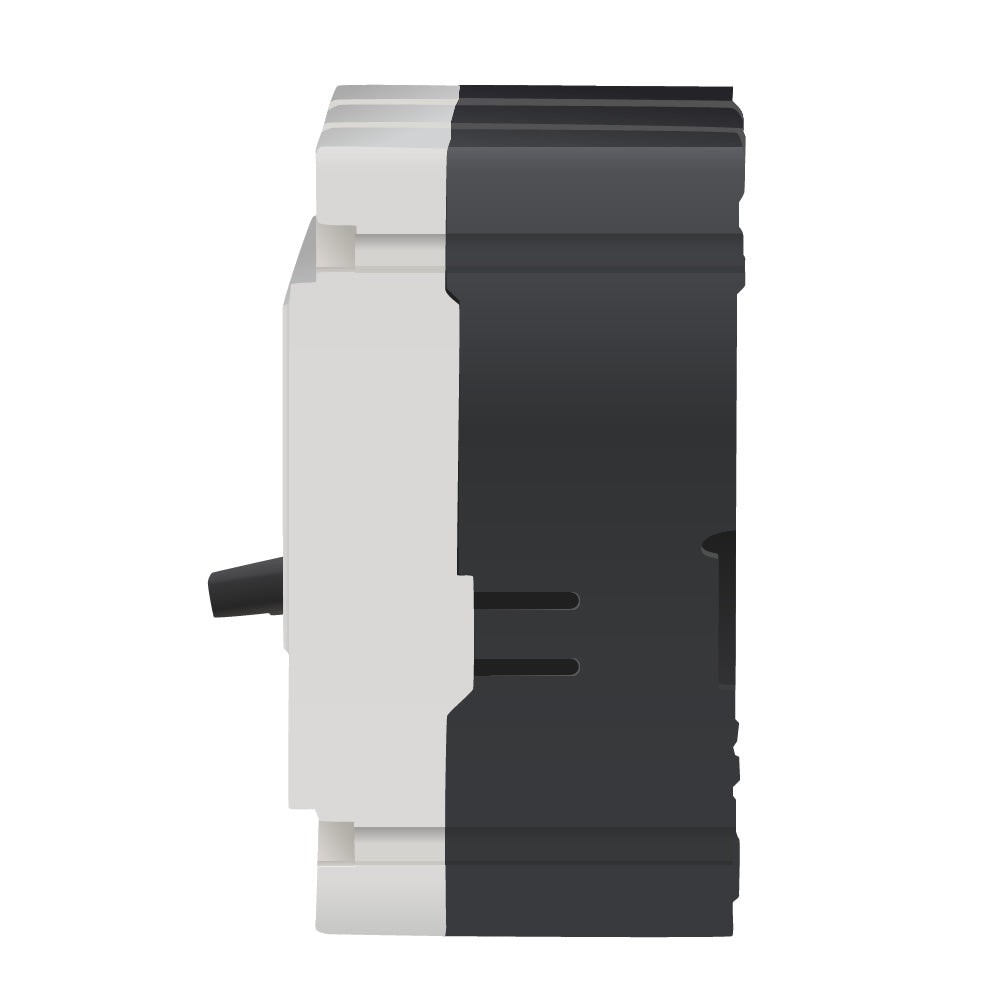

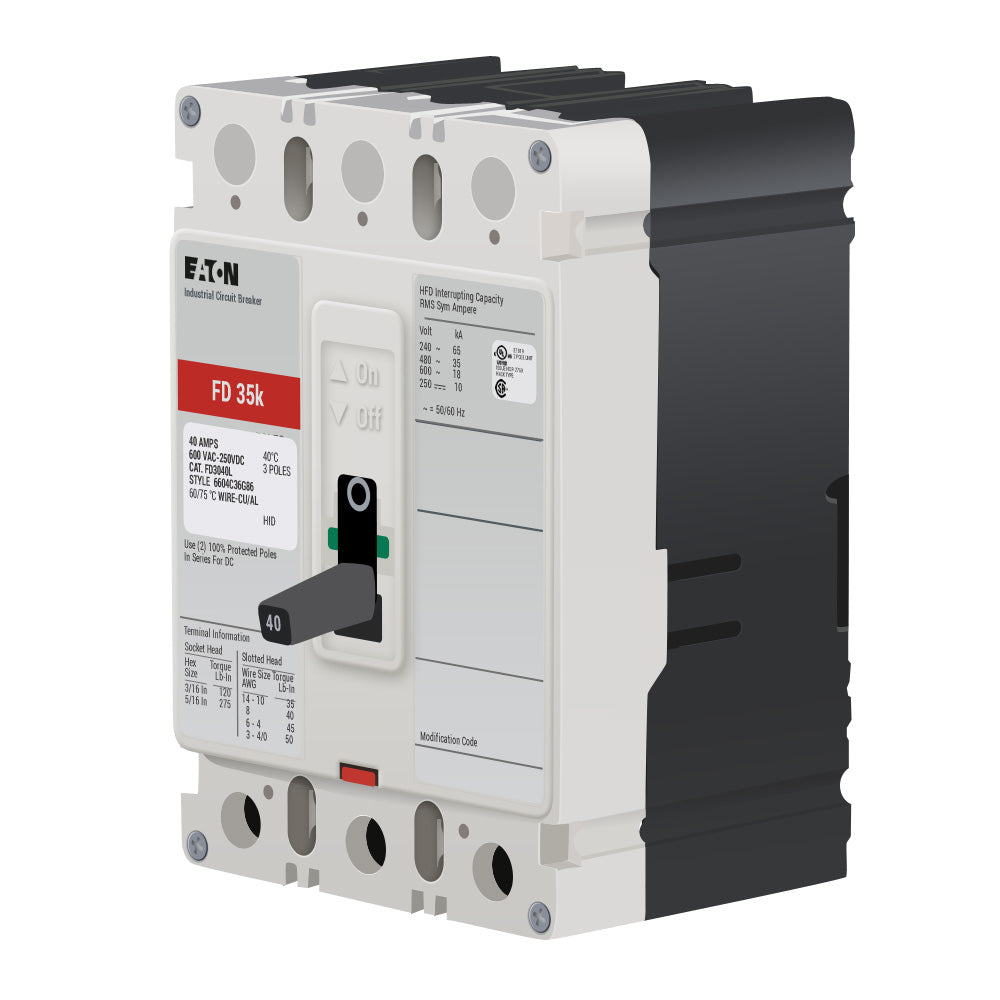

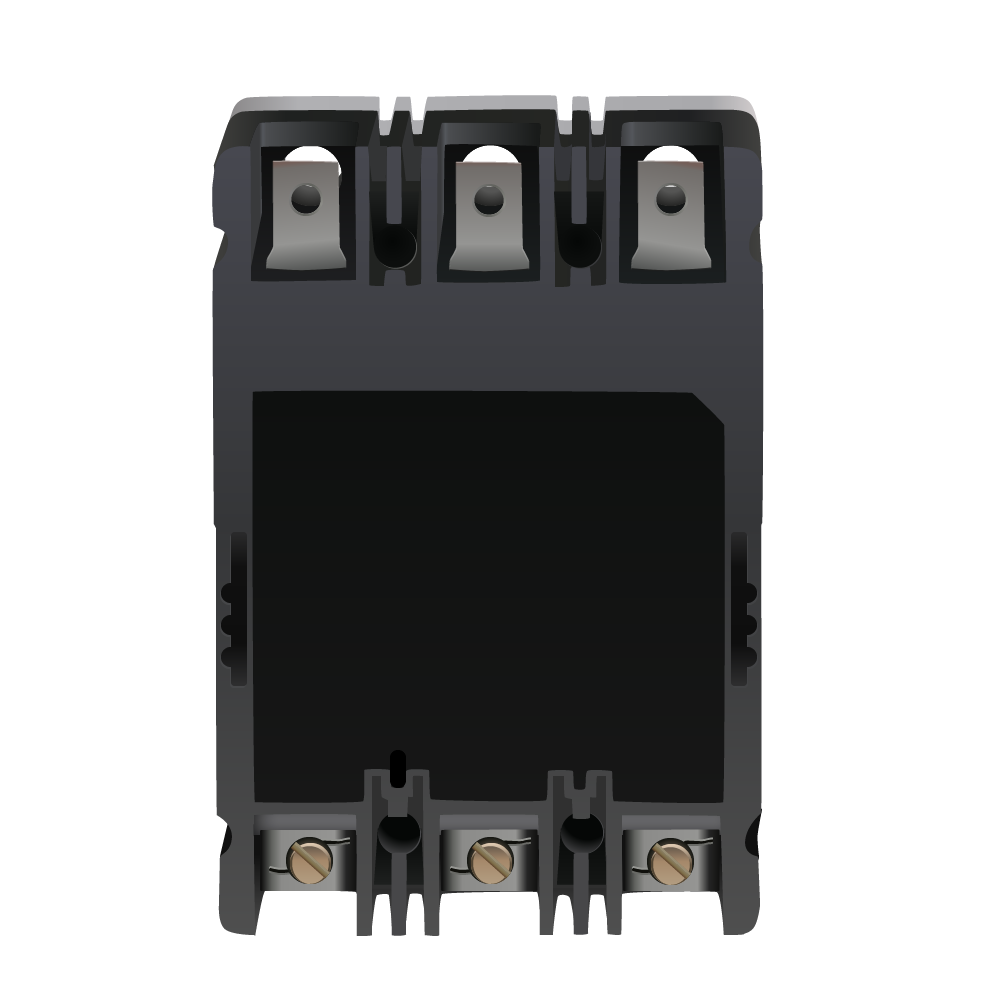

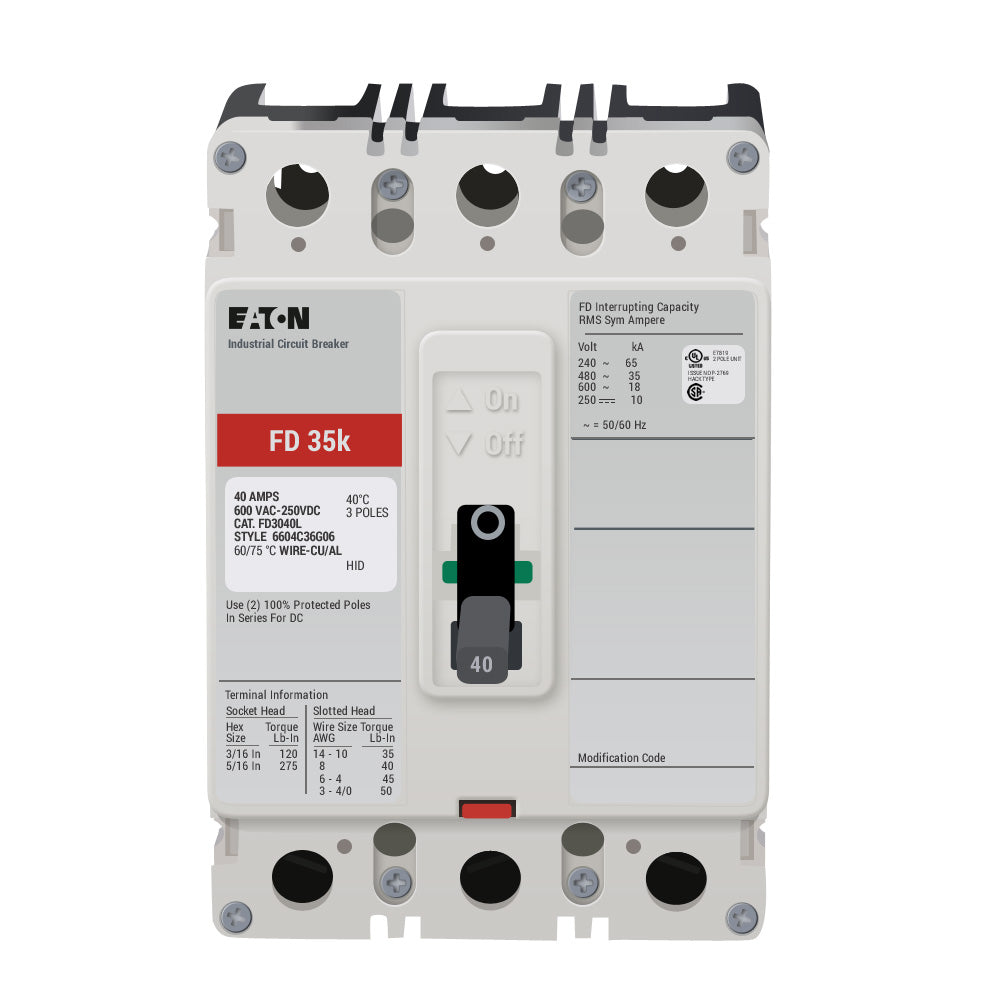

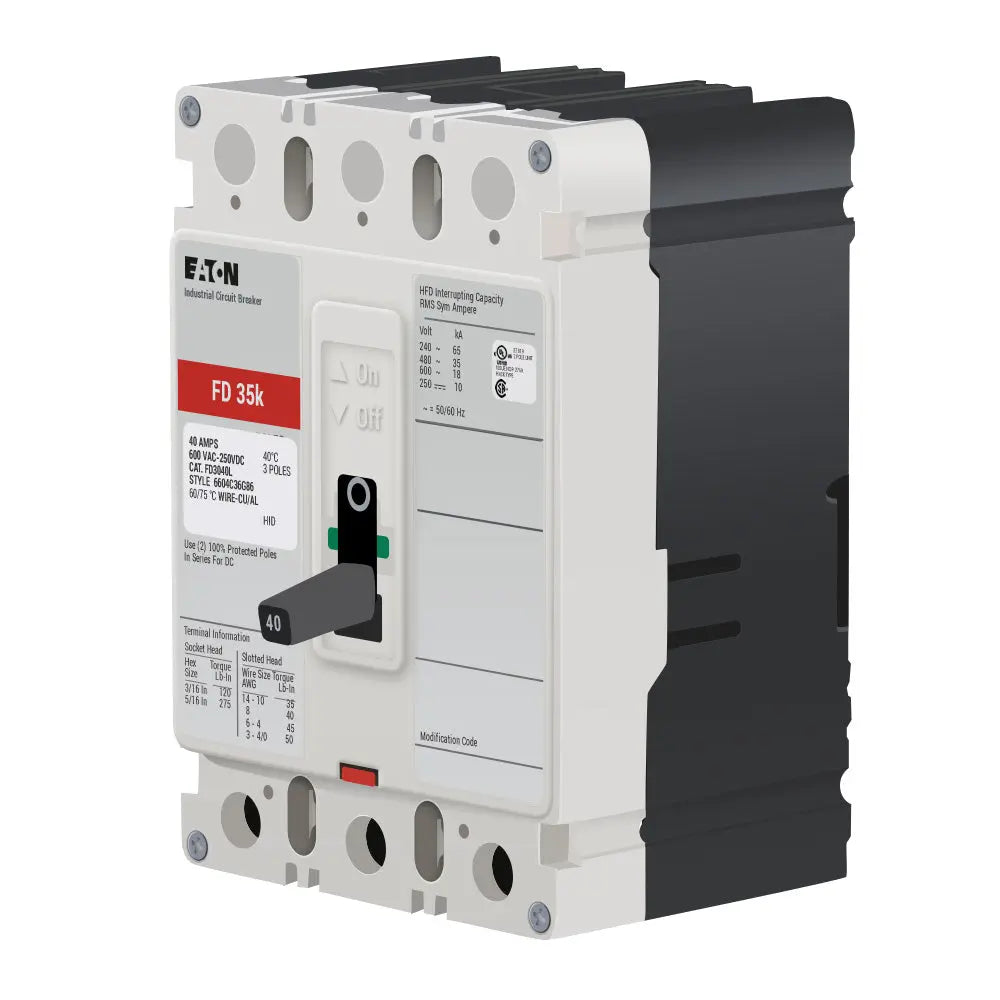

FD3040L is a 3-pole, 40 amp molded case circuit breaker from Westinghouse designed for 600V applications.This FD frame breaker features a thermal magnetic trip unit and is rated for 35kA interrupt capacity at 480V. It is part of the Series C line and suitable for industrial and commercial power distribution systems. The breaker supports feed-thru mounting and is UL listed for safety and reliability.
- Manufacturer: Westinghouse (Eaton / Cutler-Hammer)
- Frame Type: FD
- Amperage: 40A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Interrupt Rating: 35kA at 480V
- Trip Unit: Thermal Magnetic
- Series: C
- Mounting Type: Molded Case
- Feed-Thru Capability
- UL Listed
- Operating Temperature: 40°C
Specifications
- Part Number: FD3040L
- Manufacturer : Westinghouse
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679305683
- GTIN : 00786679305683
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
