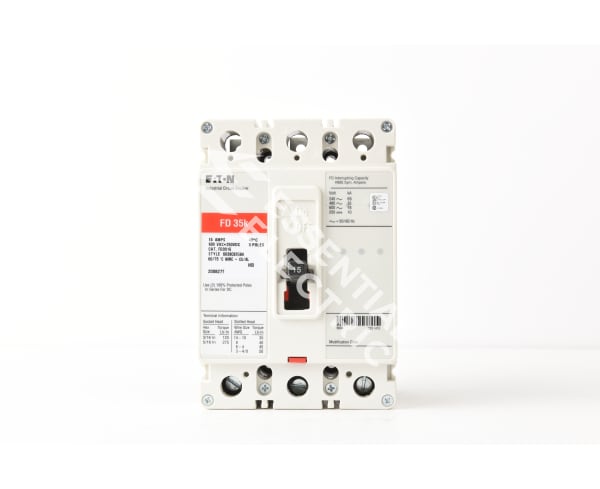

FD3015 - Westinghouse 15 Amp 600VAC 3 Pole Circuit Breaker FD Series Bolt-On

FD3015

FD3015 is a Westinghouse 15 Amp, 600VAC, 3 Pole circuit breaker designed for reliable overload and short circuit protection.This molded case circuit breaker features a bolt-on mounting type and belongs to the FD series/frame. It offers a standard interrupt rating of 35kA at 480V and is suitable for industrial and commercial electrical distribution applications. The breaker ensures safe and efficient power management with robust construction and compliance with industry certifications.

• Amperage: 15 Amps
• Voltage Rating: 600VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA @ 480V
• Series/Frame: FD Series
• Trip Unit: Thermal Magnetic
• Certifications: Industry Standard Compliant
• Type: Molded Case Circuit Breaker
• Application: Overload and Short Circuit Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD3015
• Manufacturer : Westinghouse
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679305607
• GTIN : 00786679305607
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
