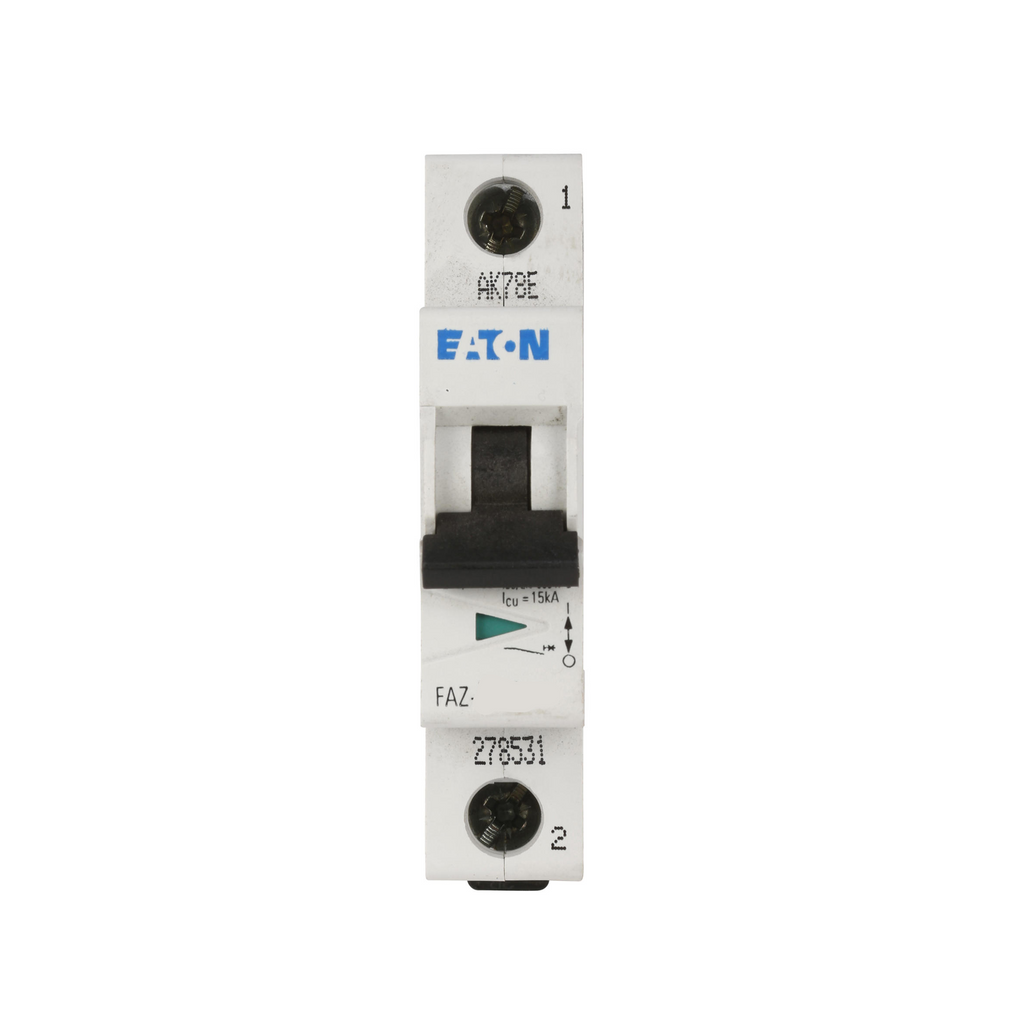

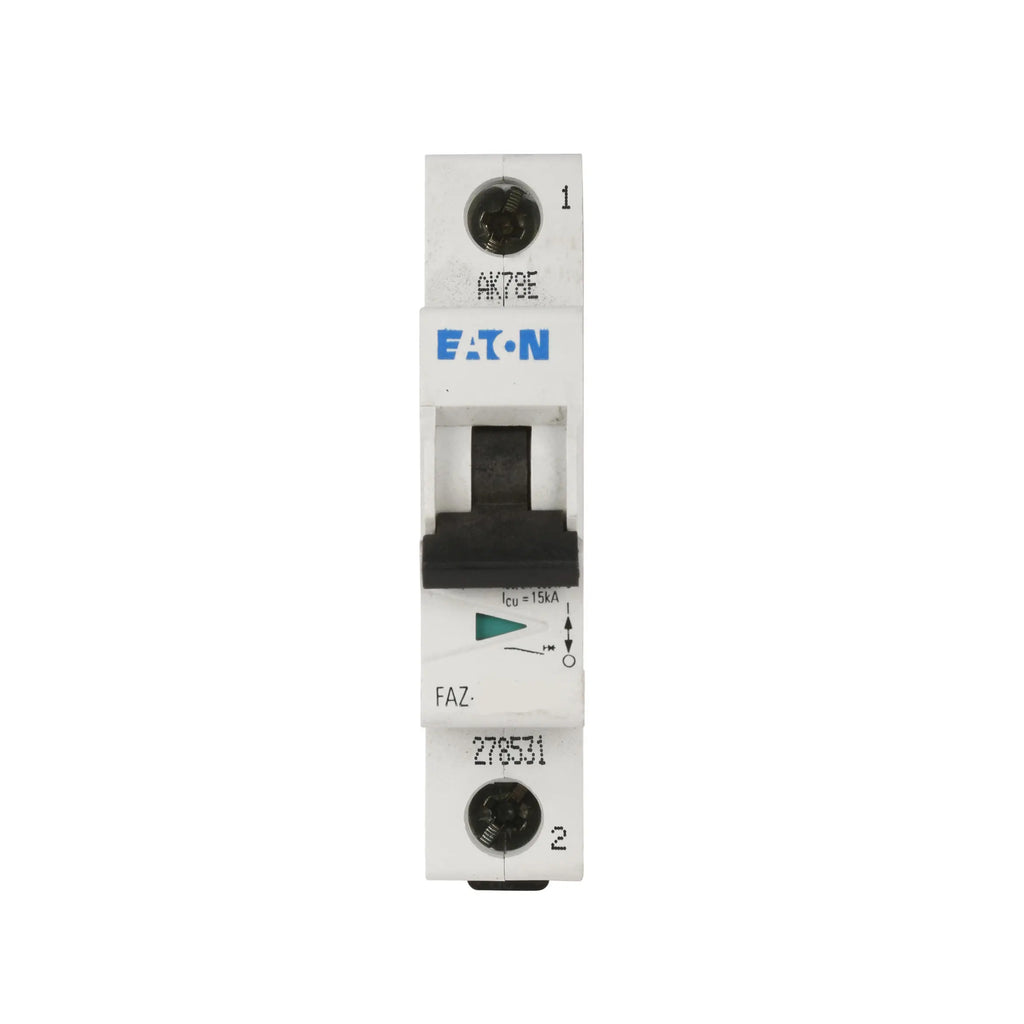

FAZ-D15/1-NA-SP - Eaton 15A 1 Pole Thermal Magnetic Circuit Breaker, 277/480VAC, 48VDC, DIN Rail Mount, 10kAIC, FAZ-NA Series

FAZ-D15/1-NA-SP

FAZ-D15/1-NA-SP is a 15A, 1 Pole thermal magnetic circuit breaker designed for reliable protection in industrial and commercial applications. This Eaton FAZ-NA series breaker features a D-curve trip unit for high inrush current tolerance, DIN rail mounting, and a robust interrupting rating for safety and performance. Engineered for use in branch and control circuits, the FAZ-D15/1-NA-SP offers dual AC/DC voltage ratings, current limiting, and is certified to UL 489, CSA, IEC, CE, VDE, and CCC standards. Its compact design and screw terminal connections make it ideal for OEM panels and control cabinets.

• Manufacturer: Eaton
• Series/Frame: FAZ-NA
• Amperage: 15A
• Poles: 1
• Voltage Rating: 277/480VAC, 48VDC
• Mounting Type: DIN Rail
• Interrupting Rating: 10kAIC
• Protection Type: Thermal Magnetic
• Functions: LI - Long Time and Instantaneous
• Actuator Type: Toggle
• Terminal Connection: Screw
• Certifications: UL 489, CSA, IEC, CE, VDE, CCC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D15/1-NA-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@480/277V
• Connection : Din Rail
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 015081636727
• Country of Origin : Spain
• Dimensions : 1 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.5
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
