FAZ-D15/3 - Eaton 15A 3-Pole 480V D Curve Industrial Miniature Circuit Breaker UL 1077

FAZ-D15/3

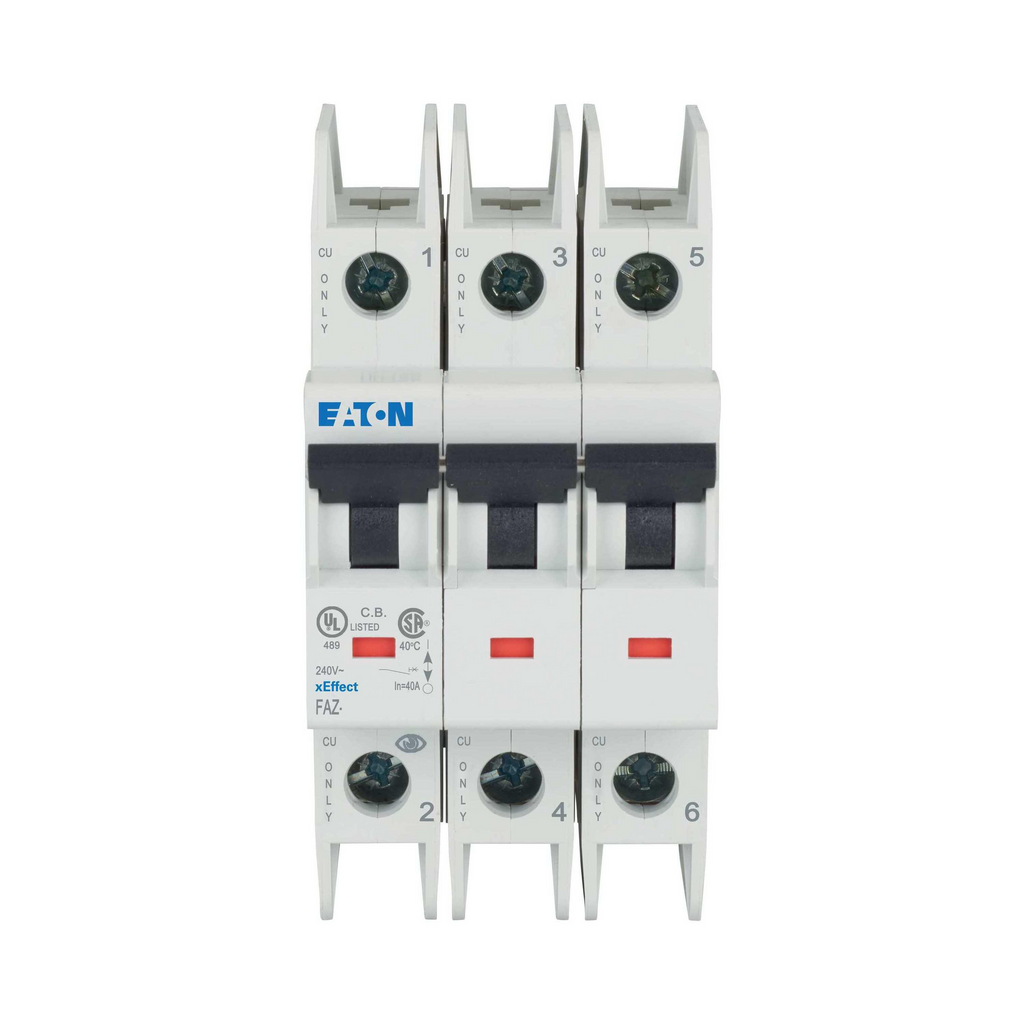

FAZ-D15/3 is a 15 amp, 3-pole Eaton industrial miniature circuit breaker designed as a supplementary protector for high inrush current applications.FAZ-D15/3 features a D curve thermal magnetic trip unit with a 10-20X/n trip type, suitable for motors, transformers, and other high inductive loads. It is rated for 277/480 V AC, with a 15 kA interrupting rating and standard screw terminals. This UL 1077 certified breaker offers reliable protection in a compact 3x3x3 inch form factor and includes a 1-year warranty.

Key Specifications
• Amperage: 15 A
• Poles: 3-pole
• Voltage Rating: 277/480 V AC
• Interrupt Rating: 15 kAIC
• Trip Unit: D Curve, 10-20X/n magnetic range
• Mounting Type: DIN rail compatible
• Terminals: Standard screw terminals
• Certifications: UL 1077, CSA Std. C22.2 No. 235, IEC 60947-2
• Dimensions: 3 in x 3 in x 3 in
• Weight: 1 lb
• Warranty: 1 year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D15/3
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 015082788951
• Country of Origin : Romania
• Dimensions : 3 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 1
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
