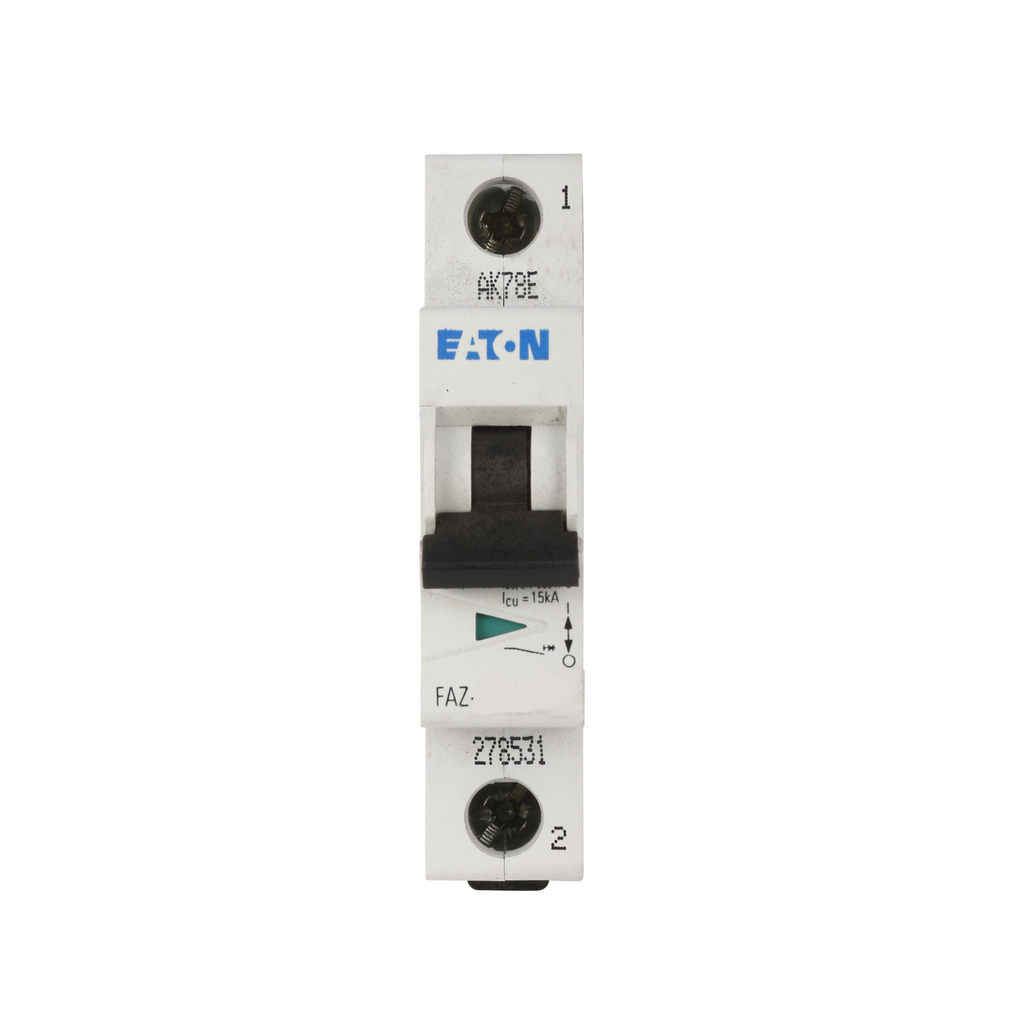

FAZ-C5/1-SP - Eaton 5A 277V 1-Pole Miniature Circuit Breaker Supplementary Protector C Curve

FAZ-C5/1-SP

FAZ-C5/1-SP is an Eaton 5 Amp, 1-pole miniature circuit breaker supplementary protector designed for medium inrush current applications.This Eaton FAZ series circuit breaker features a 277 VAC voltage rating, C curve thermal magnetic trip unit, and a 15 kA interrupting rating. It mounts on a 35mm DIN rail and is UL 1077, IEC 60947-2, and CSA certified. The breaker is suitable for protecting small transformers and pilot devices with standard screw terminals and a compact design.

• Amperage: 5 A
• Voltage Rating: 277 VAC
• Number of Poles: 1
• Trip Curve: C Curve
• Interrupting Rating: 15 kAIC
• Mounting Type: 35mm DIN Rail
• Trip Type: Thermal Magnetic (5-10X Rated Current)
• Certifications: UL 1077, IEC 60947-2, CSA Std. C22.2 No. 235
• Terminal Type: Standard Screw Terminals
• Frequency Rating: 50-60 Hz
• Application: Medium inrush current protection for small transformers and pilot devices
• Series: FAZ

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-C5/1-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 277
• Amperage : 5
• Phase : 1
• Poles : 1
• AIC rating : 10kA@277V
• Connection : Din Rail
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163758
• GTIN : 04015081637584
• Country of Origin : Romania
• Dimensions : 0.69 in x 0.69 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.27
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
