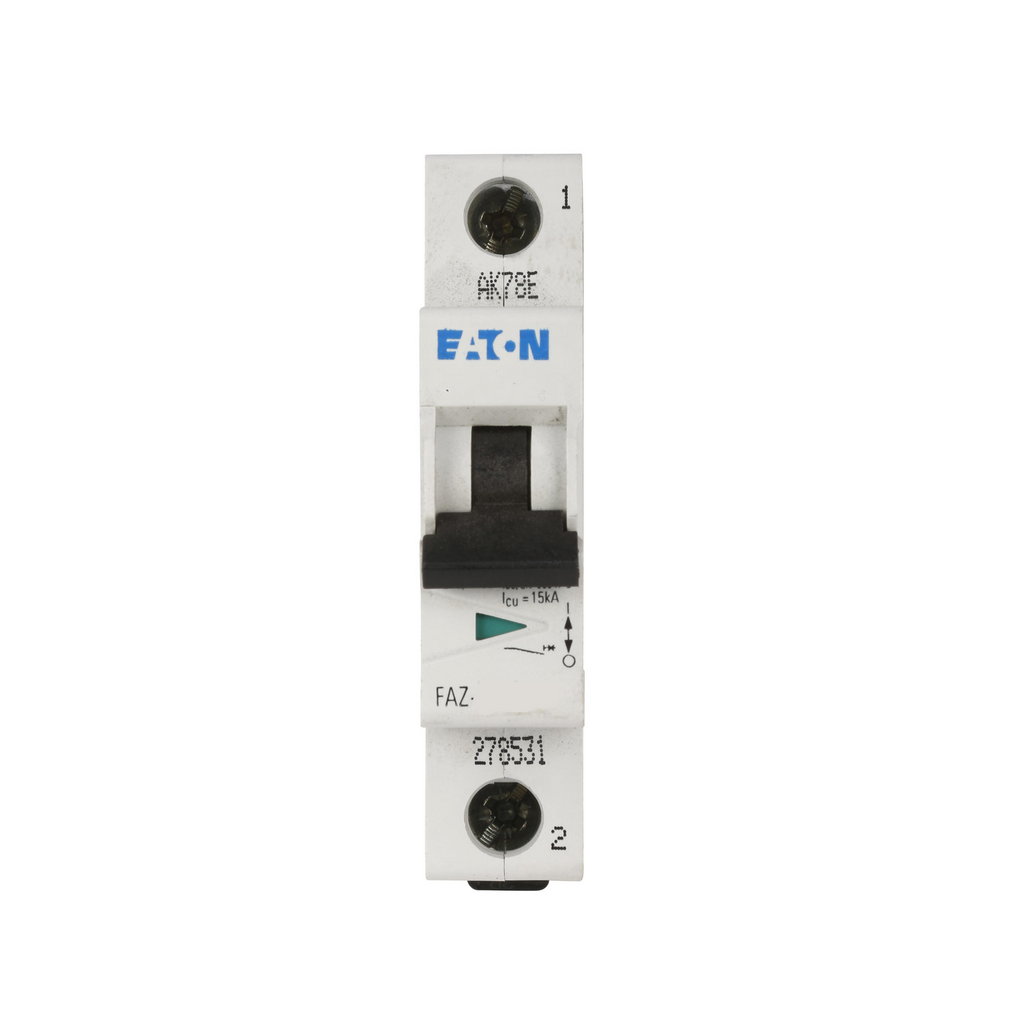

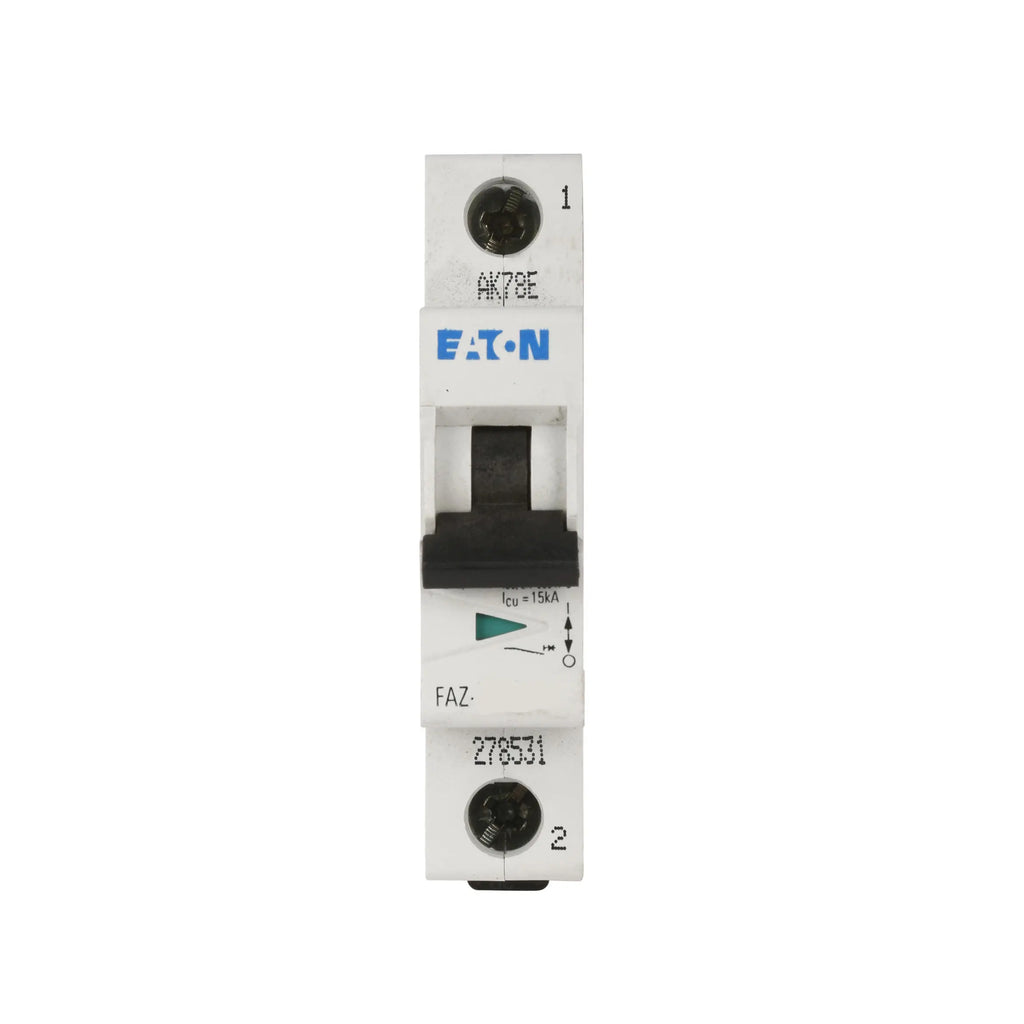

FAZ-C5/1-NA-SP - Eaton 5A 277/480VAC 1 Pole C Curve Thermal Magnetic Circuit Breaker DIN Rail Mount

FAZ-C5/1-NA-SP

FAZ-C5/1-NA-SP is a 5 Amp, 1 Pole Eaton miniature circuit breaker designed for branch and feeder protection with thermal magnetic trip and C curve characteristics.This Eaton FAZ-NA series circuit breaker features a 10kA interrupting rating at 277 VAC, supports 277/480 VAC and 48 VDC voltages, and mounts easily on a 35mm DIN rail. It includes long time and instantaneous trip functions, UL 489 listing, and multiple agency approvals including UL, CSA, IEC, CE, and VDE. The breaker supports wire sizes from 18 to 6 AWG and is RoHS compliant.

Key Specifications
• Amperage: 5A
• Voltage Rating: 277/480 VAC, 48 VDC
• Poles: 1
• Trip Curve: C Curve (thermal magnetic)
• Interrupting Rating: 10kA @ 277 VAC
• Mounting Type: 35mm DIN Rail
• Approvals: UL, CSA, IEC, CE, VDE, CCC
• Connection Type: Feed-Thru Terminals
• Wire Size Range: 18 to 6 AWG
• Operating Temperature: -4 to 140°F
• Series/Frame: FAZ-NA
• Standards: RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-C5/1-NA-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 5
• Phase : 1
• Poles : 1
• AIC rating : 10kA@480/277V
• Connection : Din Rail
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163629
• GTIN : 04015081636297
• Country of Origin : Spain
• Dimensions : 0.7 in x 4.13 in x 2.97 in (Length/Depth x Height x Width)
• Weight : 1
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
