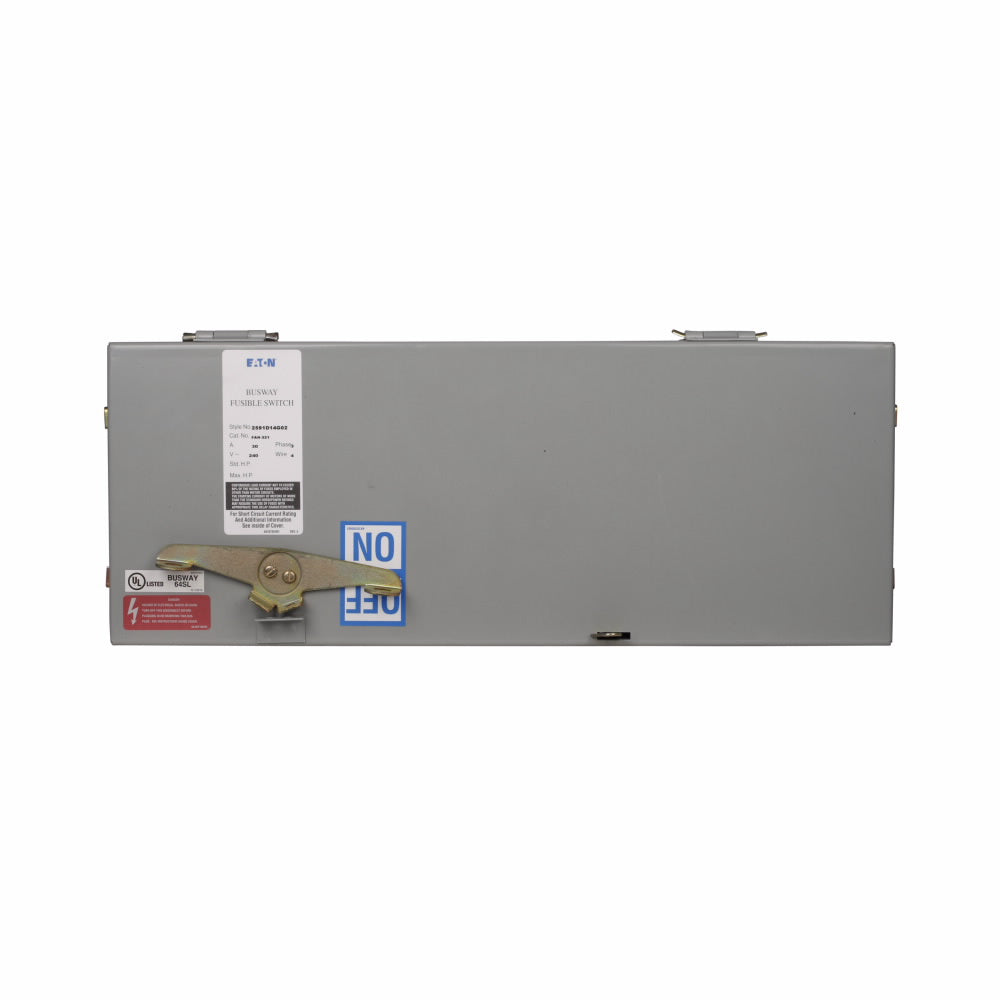

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Westinghouse
- Sub-Category
- Bus Plug Fuse
- Series
- 100AMP Busway
- Frame
- FAN
- Rated current
- 100
- Voltage
- 240V
- Phases
- 3
- Interrupting rating
- 200kA@240V
- Wires
- 4
- Fuse class
- R, H, K
- Country of origin
- United States
- UPC
- 786683104104
- Weight
- 30
Show all specifications (1 more)
- Certification
- UL 857,IEEE Certified,ANSI,CSA Certified,NEMA Compliant
Product description & additional details
FAN323
FAN323 is a 100-amp, 240-volt, 3-pole fusible bus plug designed for plug-in bus duct applications. This bus plug is compatible with Westinghouse Standard and Lifeline series plug-in bus duct systems and features mechanical lugs for secure connections. The unit is configured for R-class fuses and supports over-current protection ratings between 70-amp and 100-amp with proper fusing. Key Specifications
- Amperage Rating: 100 Amp
- Voltage Rating: 240 Volt
- Poles: 3
- Wire Configuration: 3-wire
- Fuse Type: Fusible
- Compatible Series: Westinghouse Standard/Lifeline Busway
- Mounting: Plug-in
- Mechanical Lugs: Yes
Specifications
- Part Number: FAN323
- Manufacturer : Eaton
- Brand : Westinghouse
- Category : Bus Plug
- Item Subcategory : Bus Plug Fuse
- Family : 100AMP Busway
- Type : FAN
- Voltage : 240
- Amperage : 100
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : R, H, K
- Wire : 4
Product Data
- UPC : 786683104104
- Country of Origin : United States
- Weight : 30
- Certification : UL 857,IEEE Certified,ANSI,CSA Certified,NEMA Compliant
