Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL36100V

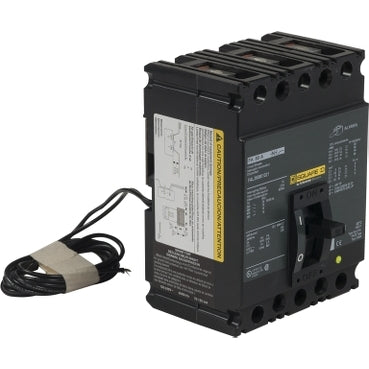

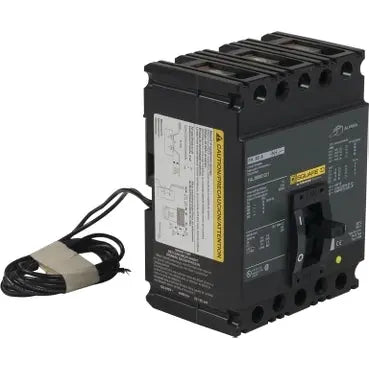

FAL36100V is a Schneider Electric molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3-pole breaker features a 100A current rating and 600V AC maximum voltage, making it suitable for a wide range of applications. Engineered with a thermal-magnetic trip unit, the FAL36100V offers both overload and short-circuit protection. It is unit mount style and compatible with standard DIN rail or panel mounting. The breaker is part of the FA/LA series and is built to meet rigorous safety and performance standards.
- Part Number: FAL36100V
- Manufacturer: Schneider Electric
- Series: FA/LA
- Mounting Type: Unit Mount
- Rated Current: 100 A
- Rated Voltage: 600 V AC
- Number of Poles: 3P
- Interrupt Rating: 14 kA at 600 V AC
- Wire Gauge: AWG 14–1/0 Copper, AWG 12–1/0 Aluminum
- Terminal Type: AL100FA
- Height: 6.4 in (162.56 mm)
- Width: 4.5 in (114.30 mm)
- Maximum Depth: 4.13 in (104.90 mm)
- Electrical Connection: Lugs Line and Load
- Phase Connection: ABC
- Warranty: 18 months
- Compliance: UL Listed
Specifications
- Part Number: FAL36100V
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Country of Origin : Mexico
- Weight : 5
