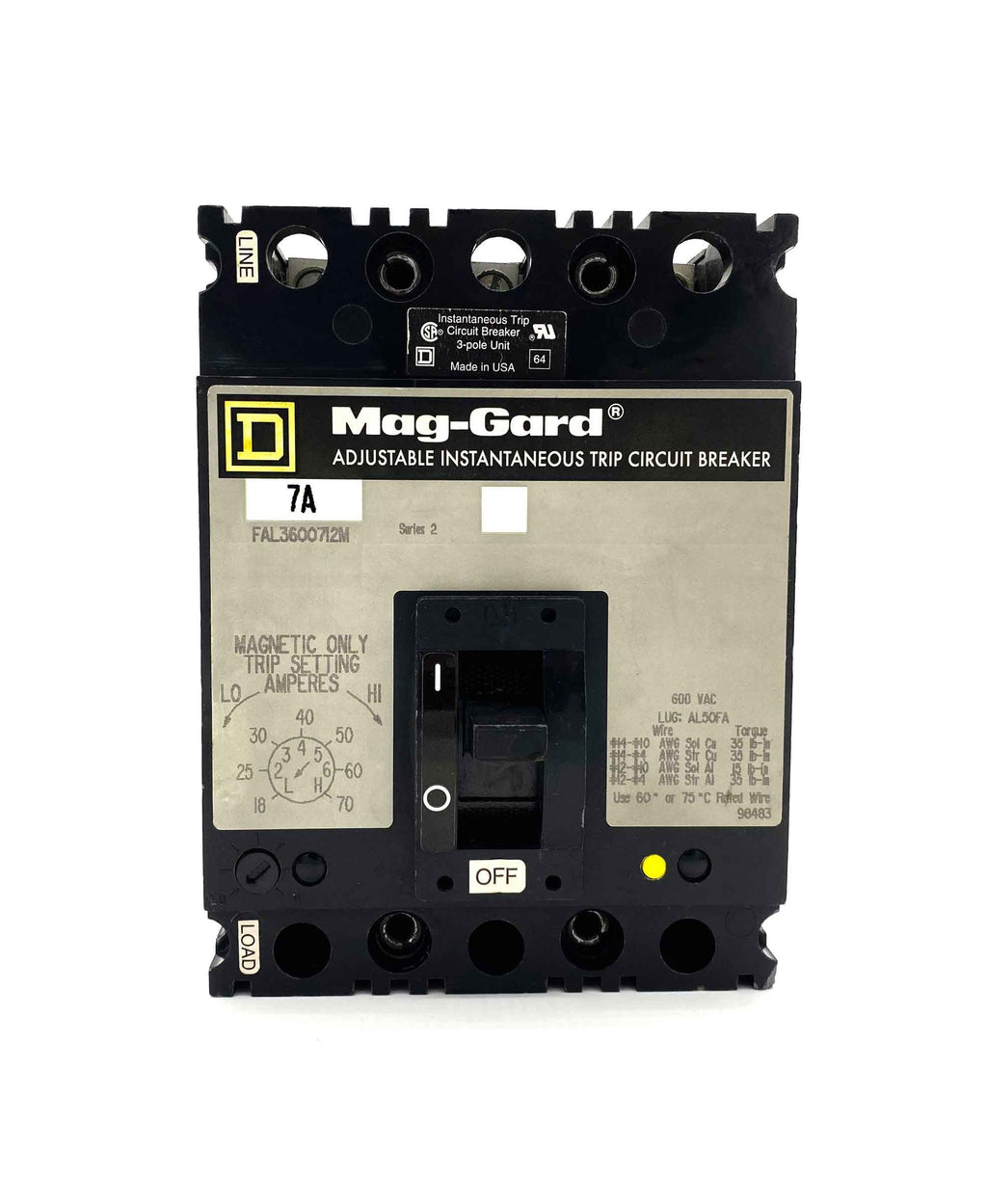

FAL3600712M - Square D 7A 600V 3 Pole Molded Case Circuit Breaker with 18kA@480V Interrupt Rating

FAL3600712M

FAL3600712M is a 3 pole, 600V, 7A molded case circuit breaker designed for reliable motor circuit protection in industrial applications. This Square D FAL Series breaker features a feed-thru design with line and load side lugs, magnetic-only trip unit, and adjustable instantaneous trip range of 18-70A. It is UL listed and suitable for use in 3-phase systems requiring high interrupting capacity. The FAL3600712M is part of the MAG-GARD MCP line, offering robust performance and safety for motor protection circuits. Its F-frame construction supports a wide range of amperages and provides compatibility with various panel configurations. The breaker is rated for 18kA interrupting capacity at 480V, ensuring reliable operation under fault conditions.

• Part Number: FAL3600712M
• Manufacturer: Square D
• Series/Frame: FAL Series, F-Frame
• Amperage: 7A
• Voltage: 600V AC
• Poles: 3 Pole
• Mounting Type: Feed-Thru, Lugs Both Ends
• Interrupt Rating: 18kA@480V
• Phase: 3 Phase
• Trip Unit: Magnetic Only, Adjustable Instantaneous Trip (18-70A)
• Certifications: UL Listed
• Application: Motor Circuit Protector

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL3600712M
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 7
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : F Frame
• Protection : Magnetic Only

Product Data

• UPC : 785901650324
• Weight : 5
• Wire Size : 12 To 4 Awg (Aluminum)/14 To 4 Awg (Copper) Wire
