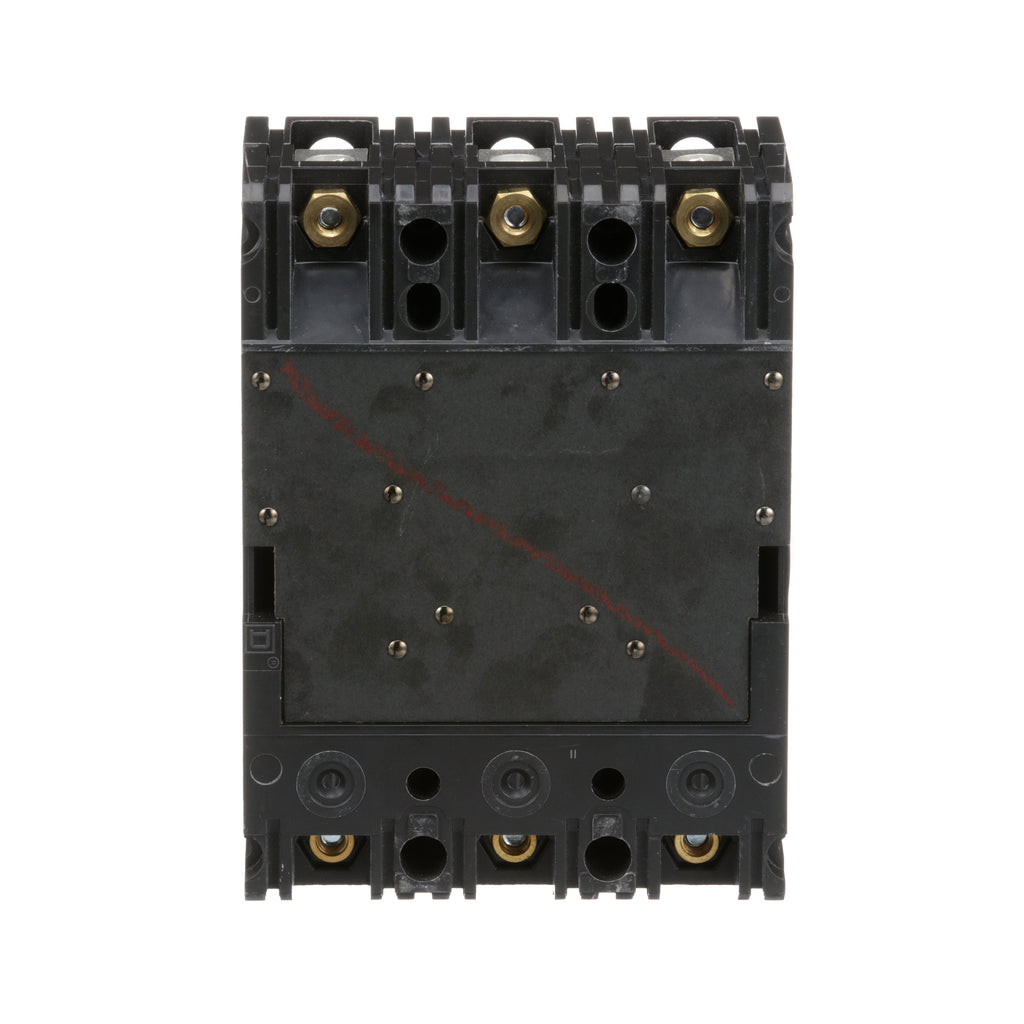

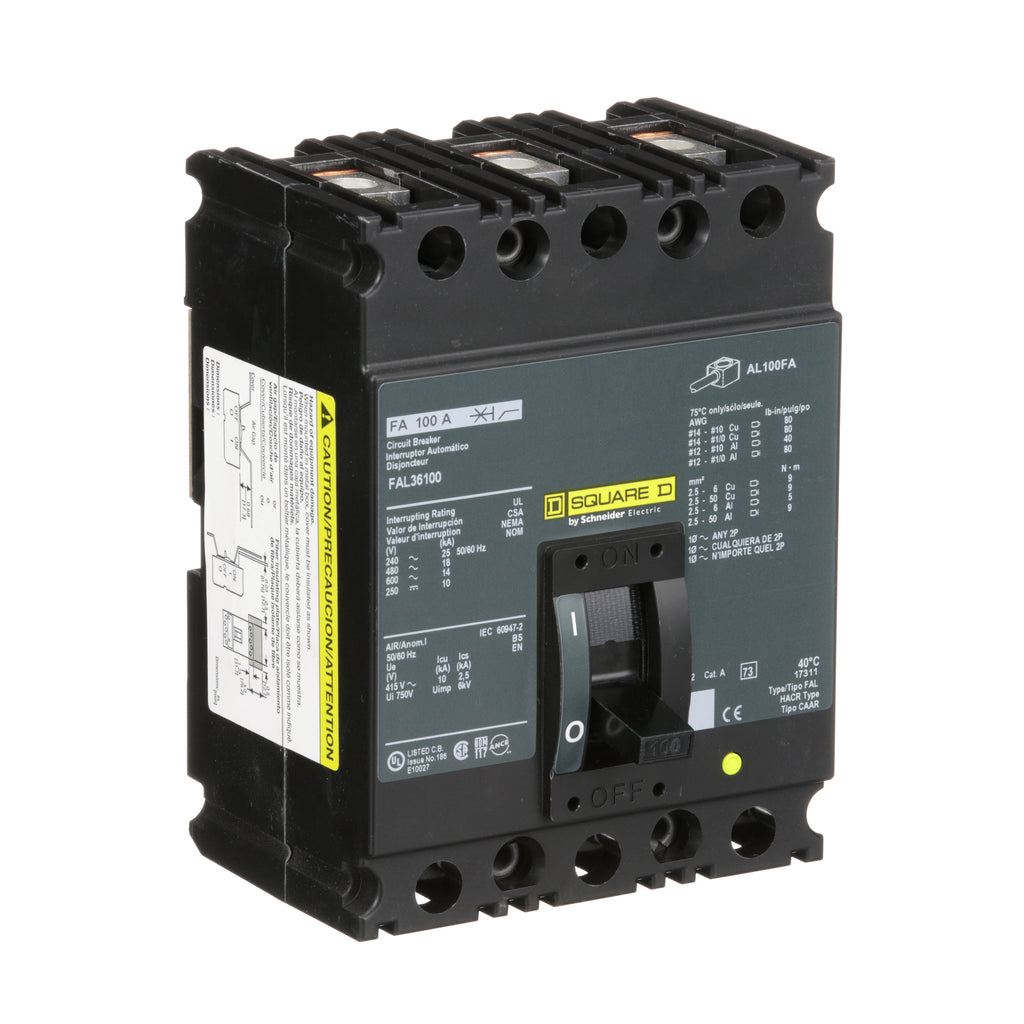

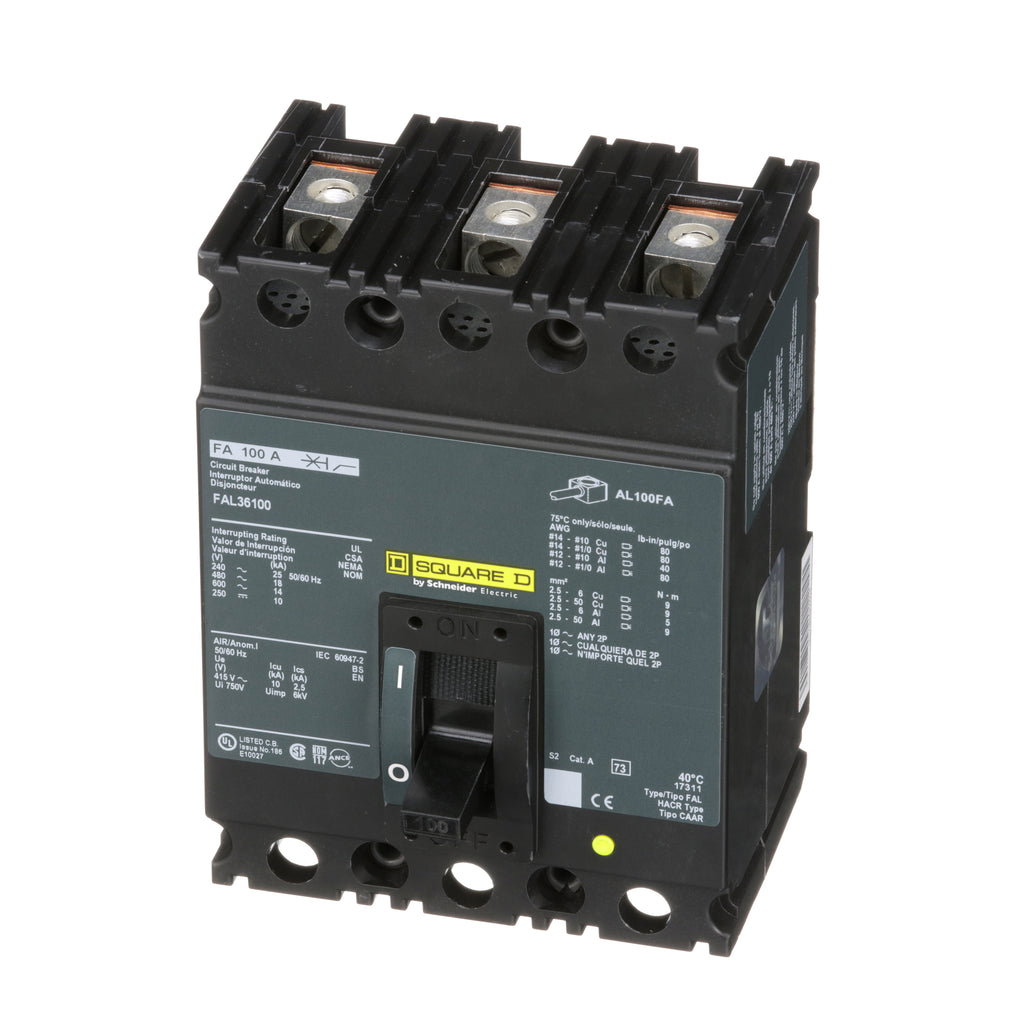

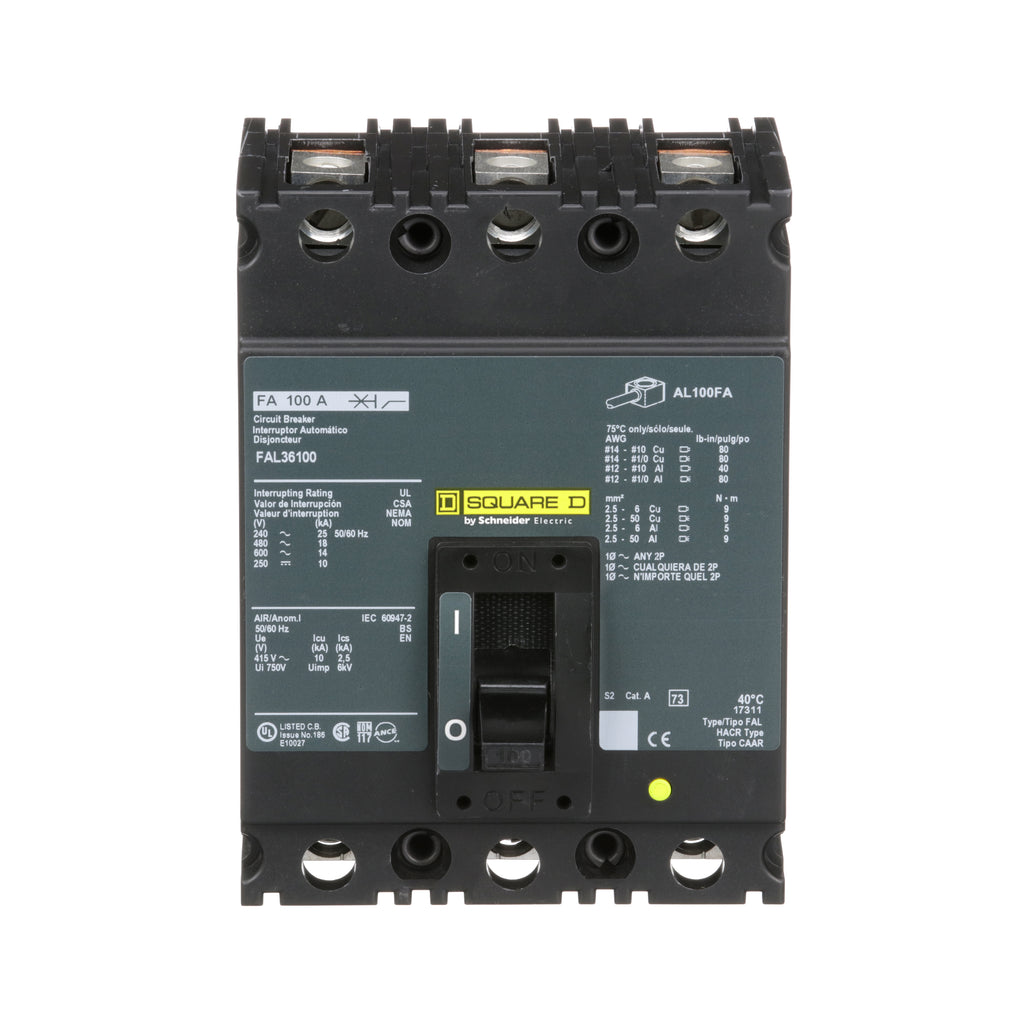

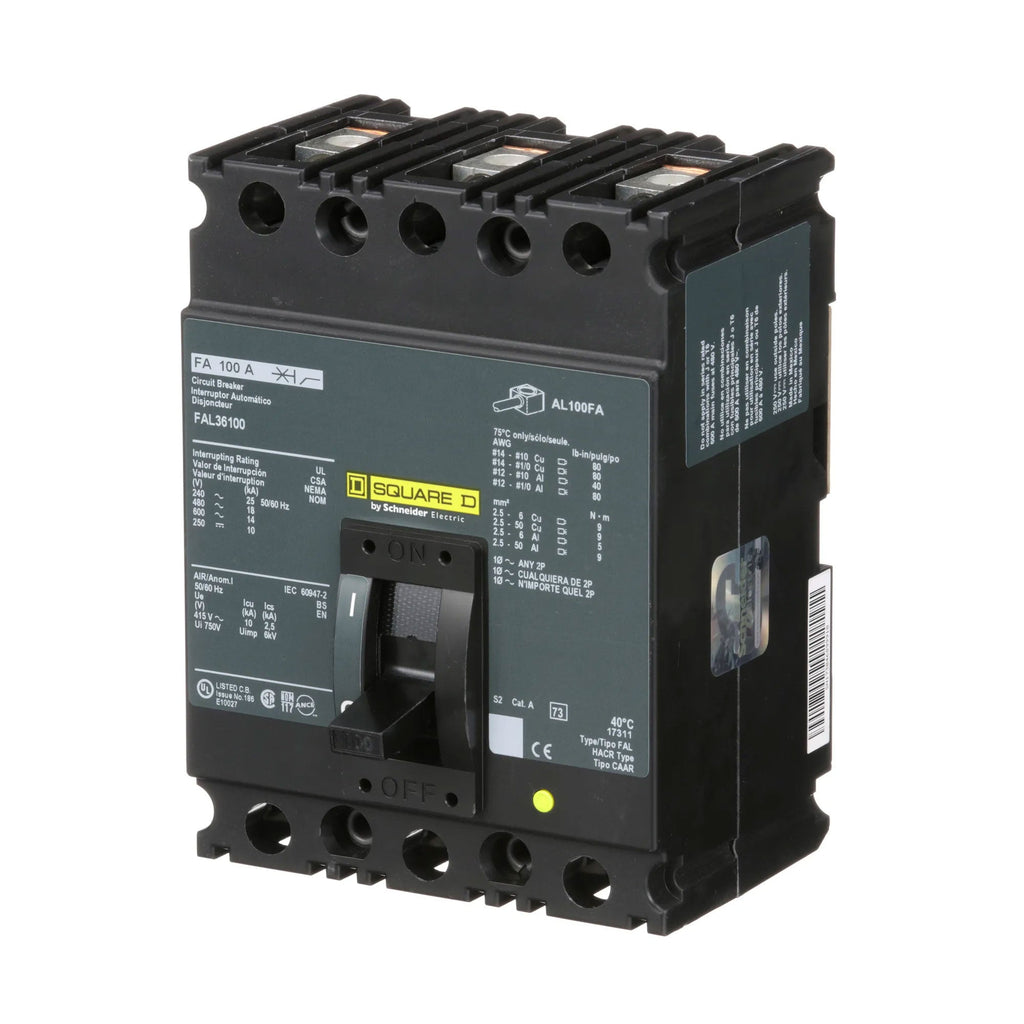

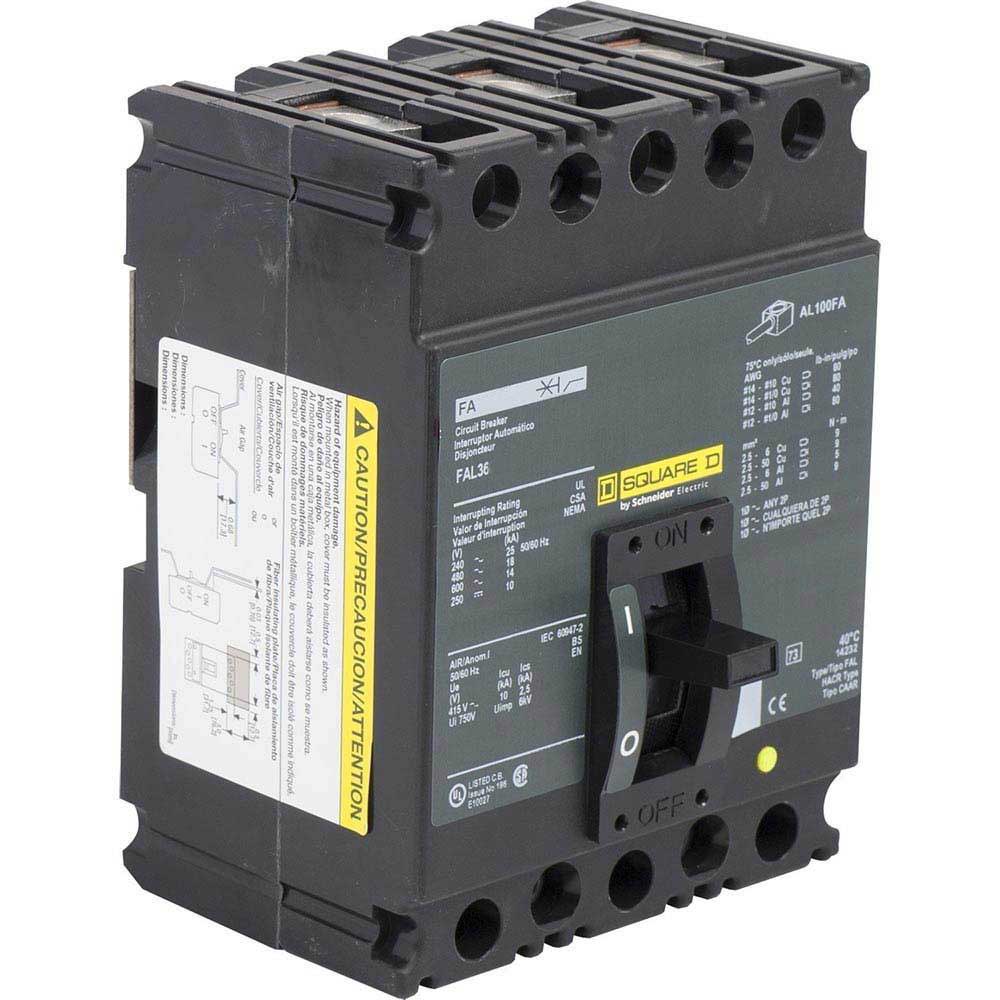

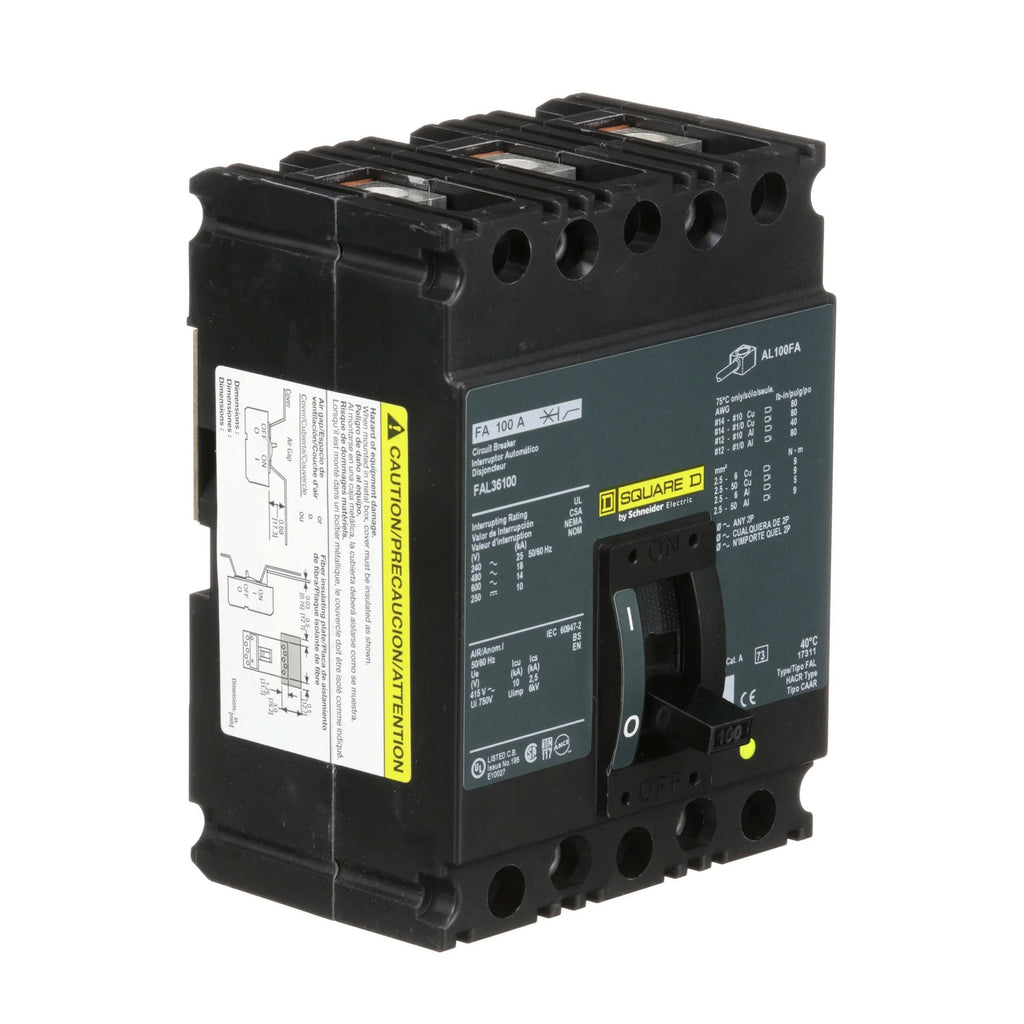

FAL36100 - Square D 100A 600V 3P Molded Case Circuit Breaker, FAL Series, Thermal Magnetic Trip, Feed-Thru Mount, 18kAIC @ 480V, UL/CSA Certified

FAL36100

FAL36100 is a Square D molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems.

This 3-pole, 100A, 600VAC circuit breaker features a thermal-magnetic trip unit for both long-time and instantaneous overcurrent protection, with a feed-thru mounting style for flexible installation. It is part of the FAL series and is certified to UL and CSA standards, ensuring compliance with North American electrical codes.

Key Specifications

• Amperage: 100A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Feed-Thru (Unit Mount)
• Interrupt Rating: 18kAIC @ 480VAC, 14kAIC @ 600VAC, 25kAIC @ 240VAC, 10kAIC @ 250VDC
• Series/Frame: FAL
• Trip Unit: Thermal-Magnetic (LI - Long-Time and Instantaneous)
• Certifications: UL, CSA, HACR
• Terminal Connection: Line and Load Side Lugs
• Wire Range: 14–1/0 AWG Copper, 12–1/0 AWG Aluminum
• Dimensions: 6.4" H x 4.5" W x 4.13" D
• Magnetic Hold Current: 900A
• Magnetic Tripping Current: 1700A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901423782
• GTIN : 00785901423782
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5
• Certification : UL LISTED, CSA, IEC
