FAL360801212 - Schneider Electric 80A 600V 3 Pole Molded Case Circuit Breaker FA Series

FAL360801212

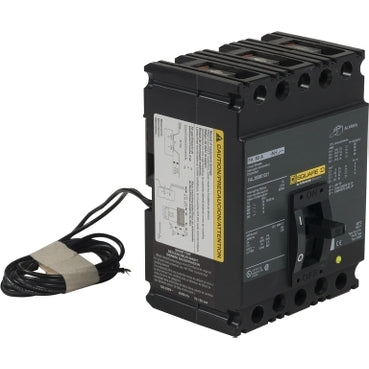

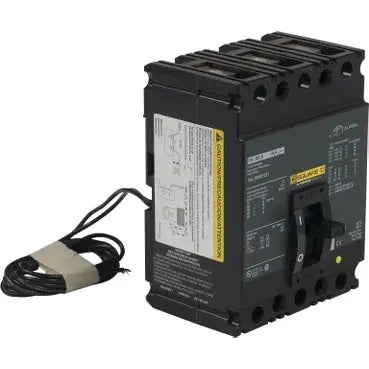

FAL360801212 is a Schneider Electric 3 pole molded case circuit breaker rated for 80 amps and 600 volts, designed for reliable power distribution protection.This circuit breaker features a thermal magnetic trip unit, unit mount installation, and an interrupting rating suitable for industrial applications. It belongs to the FA series with a 100 amp frame type and lug connections on both ends. The breaker meets UL 489 standards and offers a high interrupting capacity for enhanced safety.

• Amperage: 80 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Mounting Type: Unit mount
• Interrupting Rating: 18,000 AIC at 240 V, suitable for 480 V applications
• Series/Frame: FA Series, 100 amp frame
• Trip Unit: Thermal magnetic
• Certifications: UL 489
• Weight: Approximately 5 lbs
• Lugs on both ends for easy wiring

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL360801212
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5
