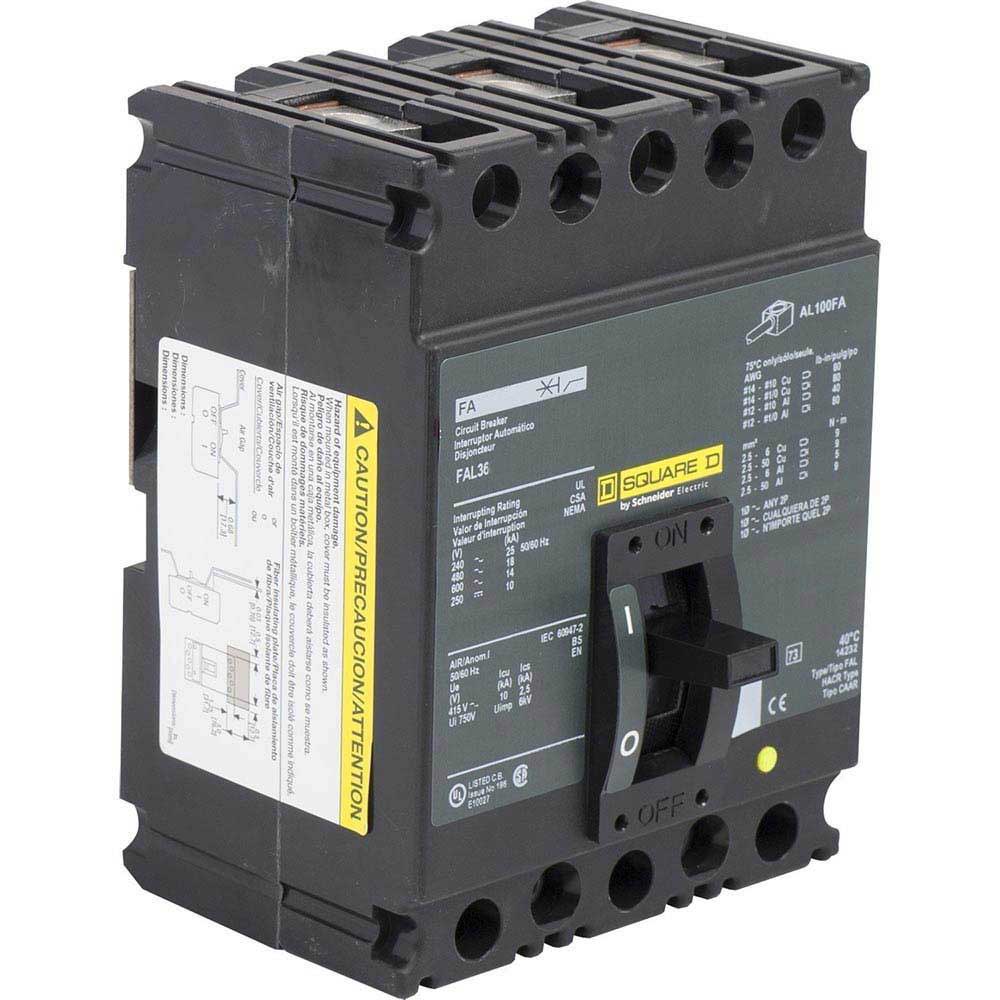

FAL36080 - Square D 80 Amp 600 Volt 3 Pole Thermal Magnetic Circuit Breaker

FAL36080

FAL36080 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 80 amps and 600 volts.This circuit breaker features a 3-pole design with a thermal magnetic trip unit, suitable for industrial and commercial power distribution applications. It has a frame rating of 100 amps and an interrupting rating typically up to 18kA at 600 VAC. The breaker includes line and load side lug terminals and is designed for feed-thru mounting. It complies with HACR rating standards and is part of the Square D FAL series.

Key Specifications
• Amperage: 80 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3
• Frame Amps: 100
• Interrupt Rating: 14kA to 18kA at 600 VAC
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Mounting Type: Feed-Thru
• Series/Frame: FAL
• Certifications: HACR Rated
• Dimensions: Approx. 6.4" H x 4.5" W x 4.13" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901529767
• GTIN : 00785901529767
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.93
• Certification : UL, CSA
