2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL36060

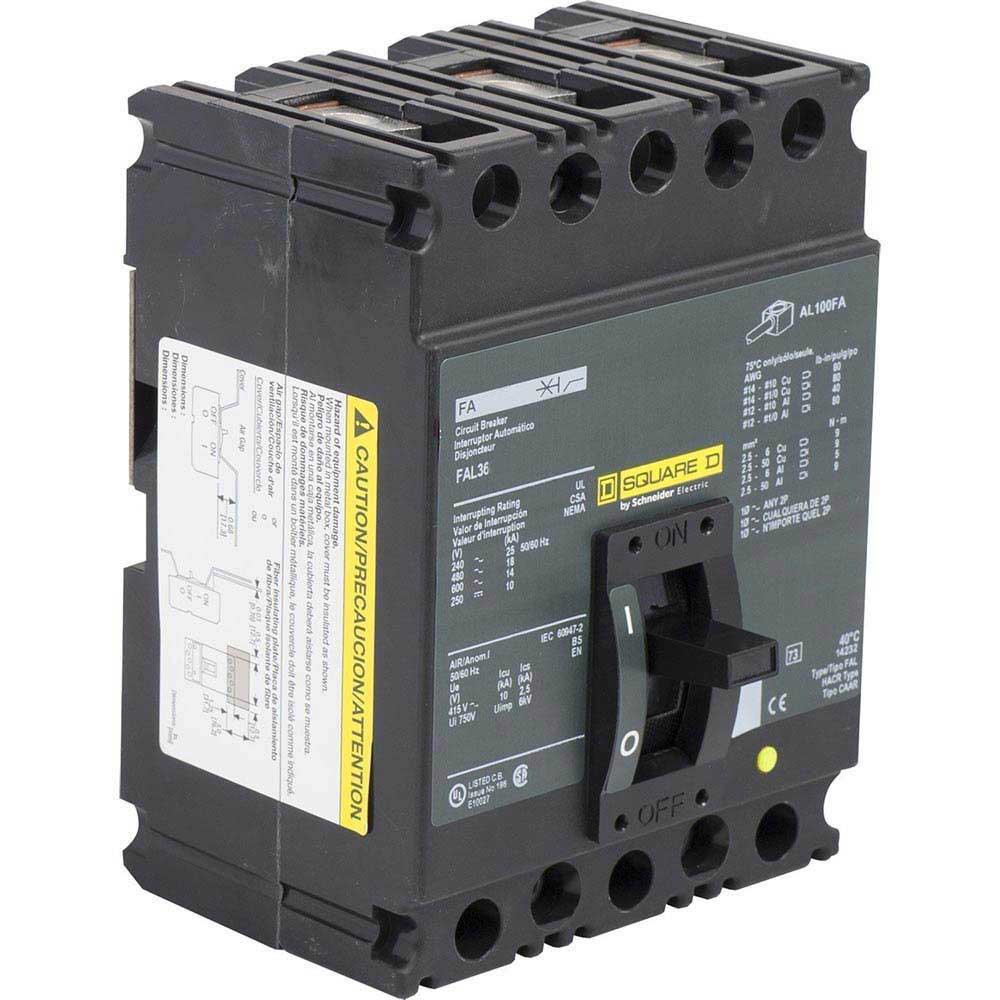

FAL36060 is a 3 pole, 60 amp, 600 volt thermal magnetic molded case circuit breaker from Square D's FAL Series.This circuit breaker features a feed-thru connection type with long-time and instantaneous (LI) trip functions, providing reliable protection for three-phase electrical systems. It has an interrupting rating of 18kAIC at 480V and is UL and CSA certified. The unit mounting type and line/load side lug terminals facilitate easy installation and secure connections.
- Manufacturer: Square D
- Series: FAL
- Amperage: 60 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Interrupting Rating: 18kAIC at 480V
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Mounting Type: Unit Mount
- Connection Type: Feed-Thru
- Terminal Connection: Line and Load Side Lug
- Certifications: UL, CSA
- Dimensions (HxWxD): 6.4 x 4.5 x 4.13 inches
Specifications
- Part Number: FAL36060
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901423720
- GTIN : 00785901423720
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 4.817
- Certification : UL, CSA
