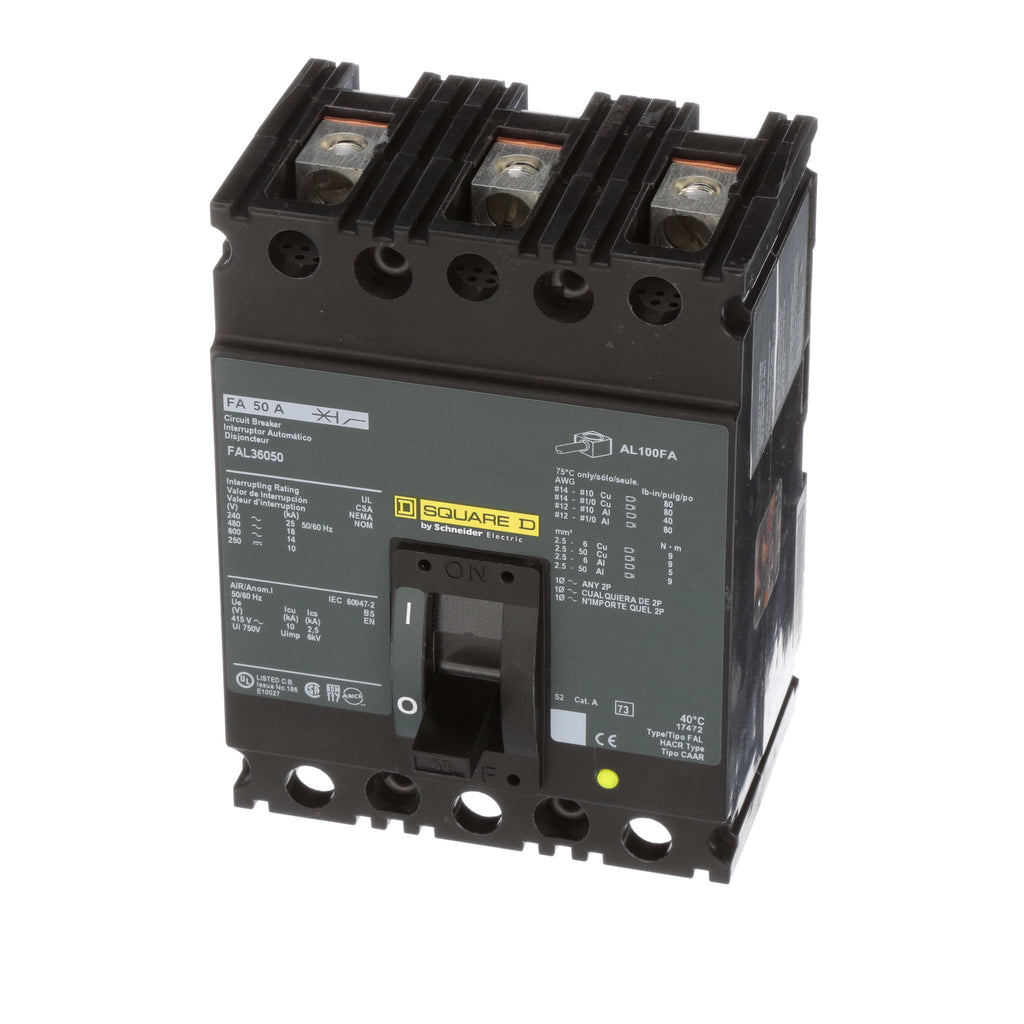

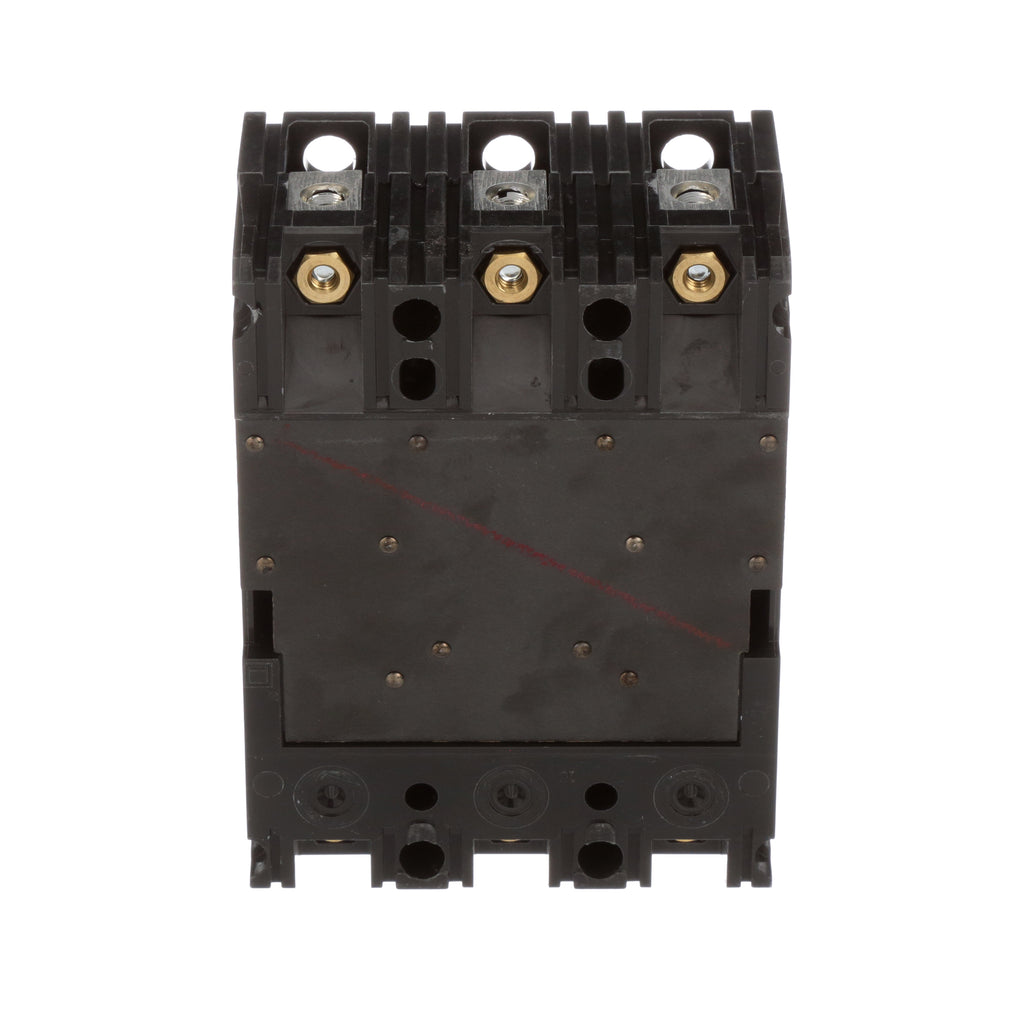

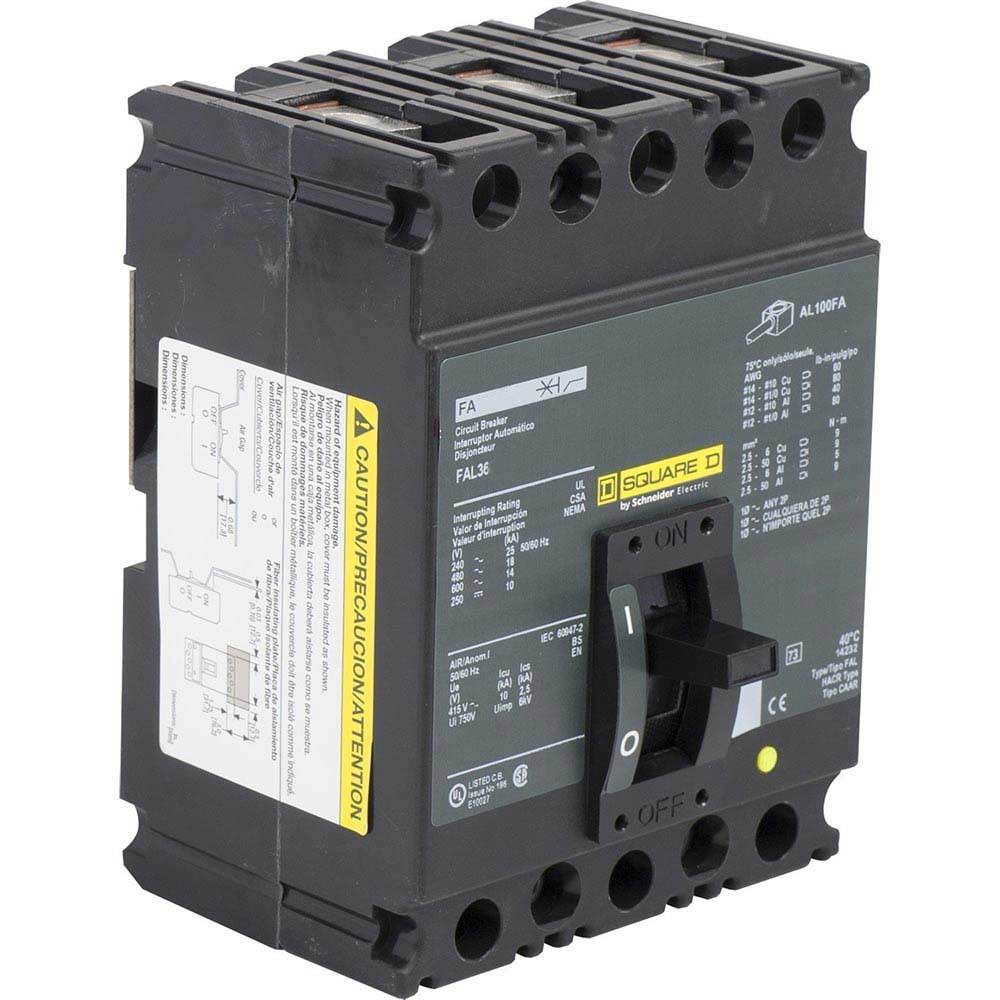

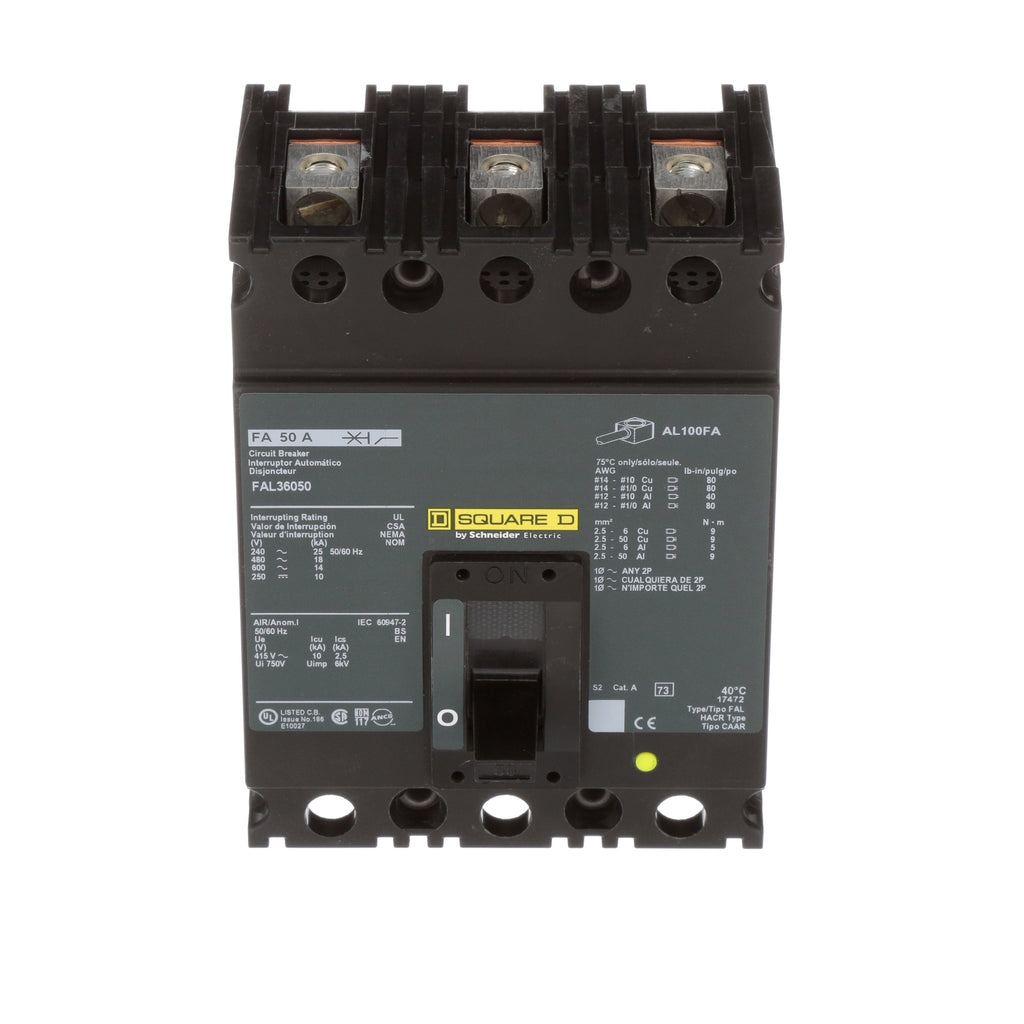

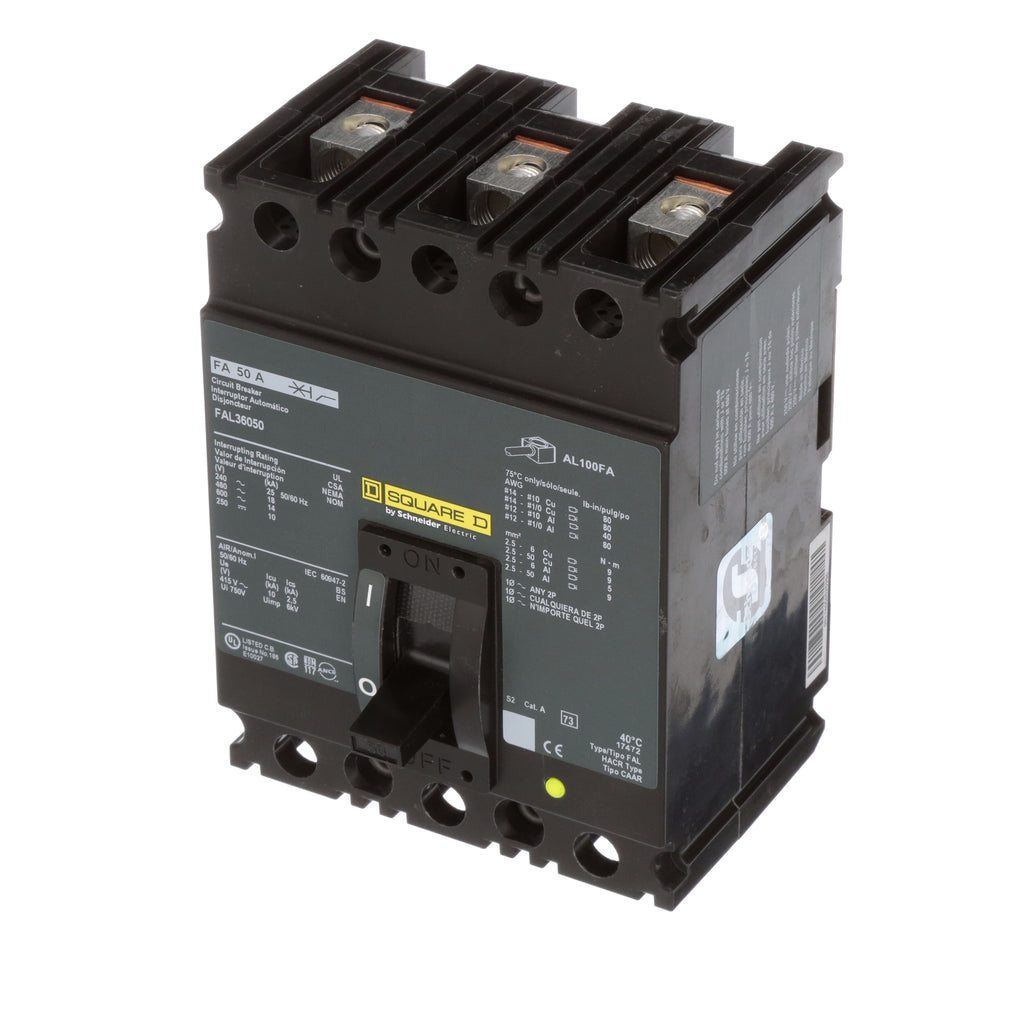

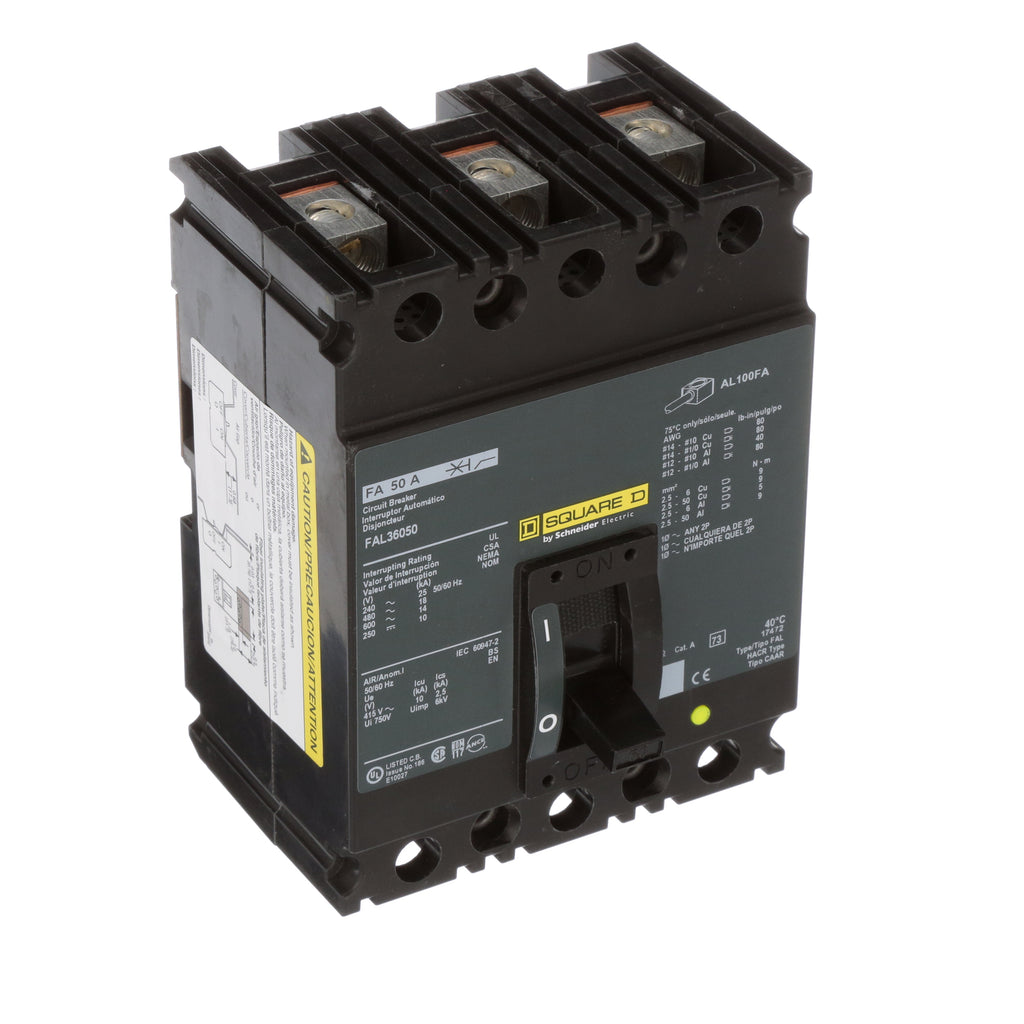

FAL36050 - Square D 50 Amp 600 Volt 3 Pole Thermal Magnetic Molded Case Circuit Breaker

FAL36050

FAL36050 is a 3 pole, 50 amp, 600 volt thermal magnetic molded case circuit breaker from Square D designed for reliable circuit protection.This circuit breaker features a feed-thru mounting type and belongs to the FAL series with an F-frame. It offers a thermal magnetic trip unit with long-time and instantaneous trip functions. The breaker has an interrupt rating of up to 14kA at 600V and is suitable for industrial and commercial applications requiring robust overload and short circuit protection.

• Amperage: 50 Amps
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 14kA at 600V
• Series/Frame: FAL Series, F-Frame
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Certifications: Standard industry certifications (UL listed, CE compliant typical for Square D)
• Line & Load Side Lug Terminals
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL36050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901423706
• GTIN : 00785901423706
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5.09
• Certification : UL, CSA
