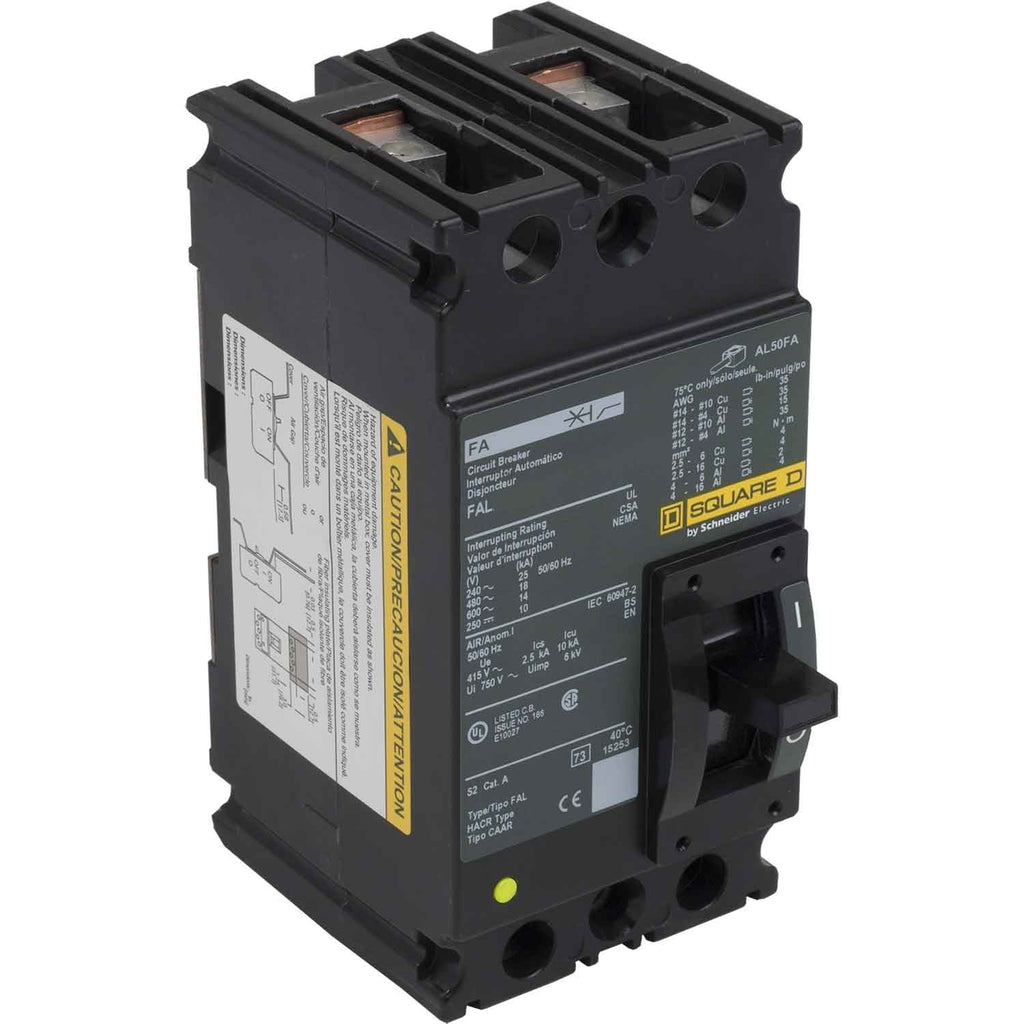

FAL26060 - Square D 60A 600V 2 Pole Feed-Thru Molded Case Circuit Breaker

FAL26060

FAL26060 is a Square D 2 pole, 60 amp, 600 volt feed-thru molded case circuit breaker designed for reliable circuit protection.This circuit breaker features thermal magnetic trip technology with long-time and instantaneous trip functions. It has an interrupting rating of 18kA at 480V and includes line and load side lug terminals. The breaker is part of the FAL series and is suitable for single-phase applications.

• Amperage: 60A
• Voltage Rating: 600V
• Poles: 2
• Type: Feed-Thru Molded Case
• Interrupting Capacity: 18kA @ 480V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Mounting: Panel Mount
• Series/Frame: FAL
• Phase: Single Phase
• Line & Load Side Lug Terminals
• Certifications: OEM Square D / Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL26060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901255024
• GTIN : 00785901255024
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3.35
• Certification : UL LISTED-CSA
