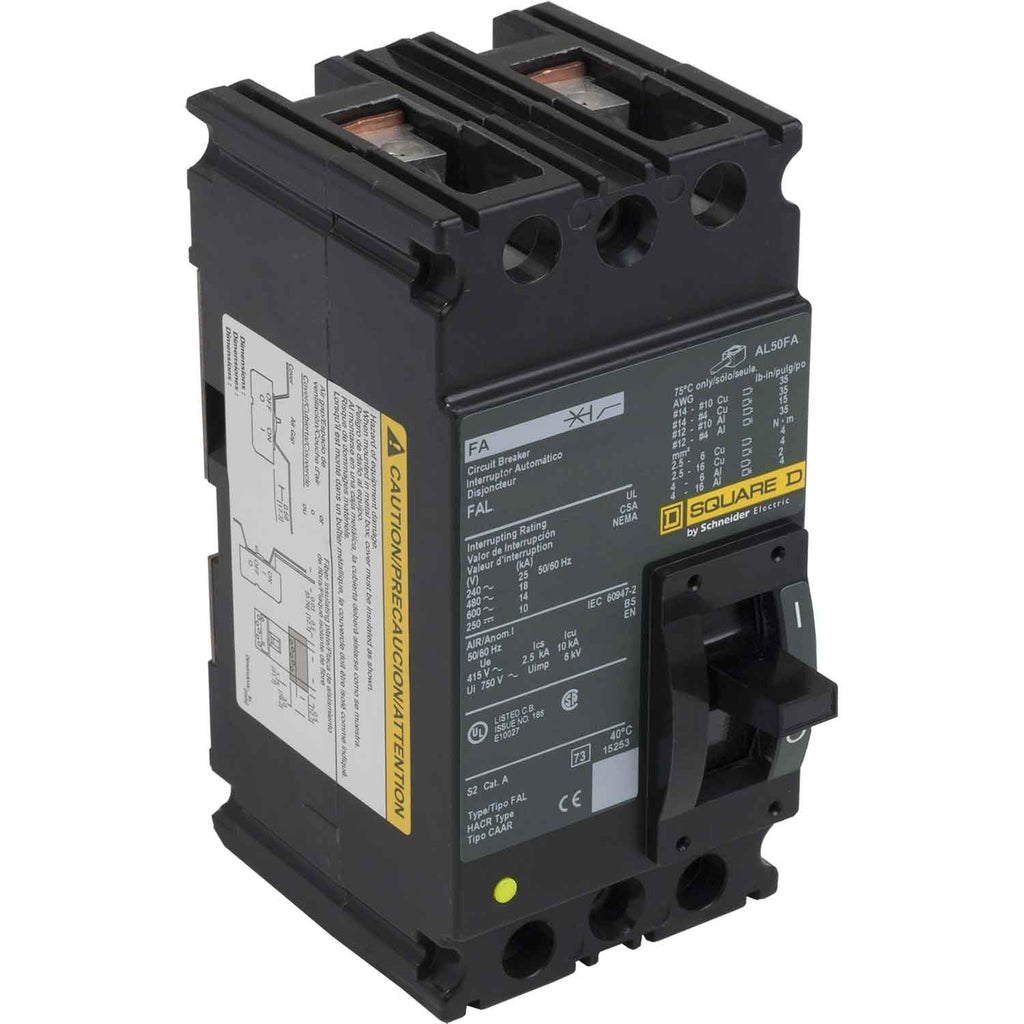

FAL26020 - Square D 20 Amp 600V 2 Pole Feed-Thru Thermal Magnetic Circuit Breaker

FAL26020

FAL26020 is a 2 pole, 20 amp, 600 volt feed-thru molded case circuit breaker from Square D designed for reliable thermal magnetic protection.This Square D FAL26020 circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions. It has an interrupting rating of 18kA at 480V and is UL and CSA certified. The breaker uses line and load side lug terminals and is designed for unit mounting. It complies with HACR standards and is part of the FAL series frame.

Key Specifications
• Amperage: 20A
• Voltage: 600VAC
• Poles: 2
• Mounting Type: Unit Mount
• Interrupt Rating: 18kAIC at 480V
• Series/Frame: FAL
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Certifications: UL, CSA
• Connection Type: Feed-Thru
• Terminal Connection: Line and Load Side Lug
• Standards: HACR
• Dimensions (LxWxH): 4.13 x 3 x 6.4 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL26020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901254980
• GTIN : 00785901254980
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3.08
• Certification : UL LISTED-CSA
