Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

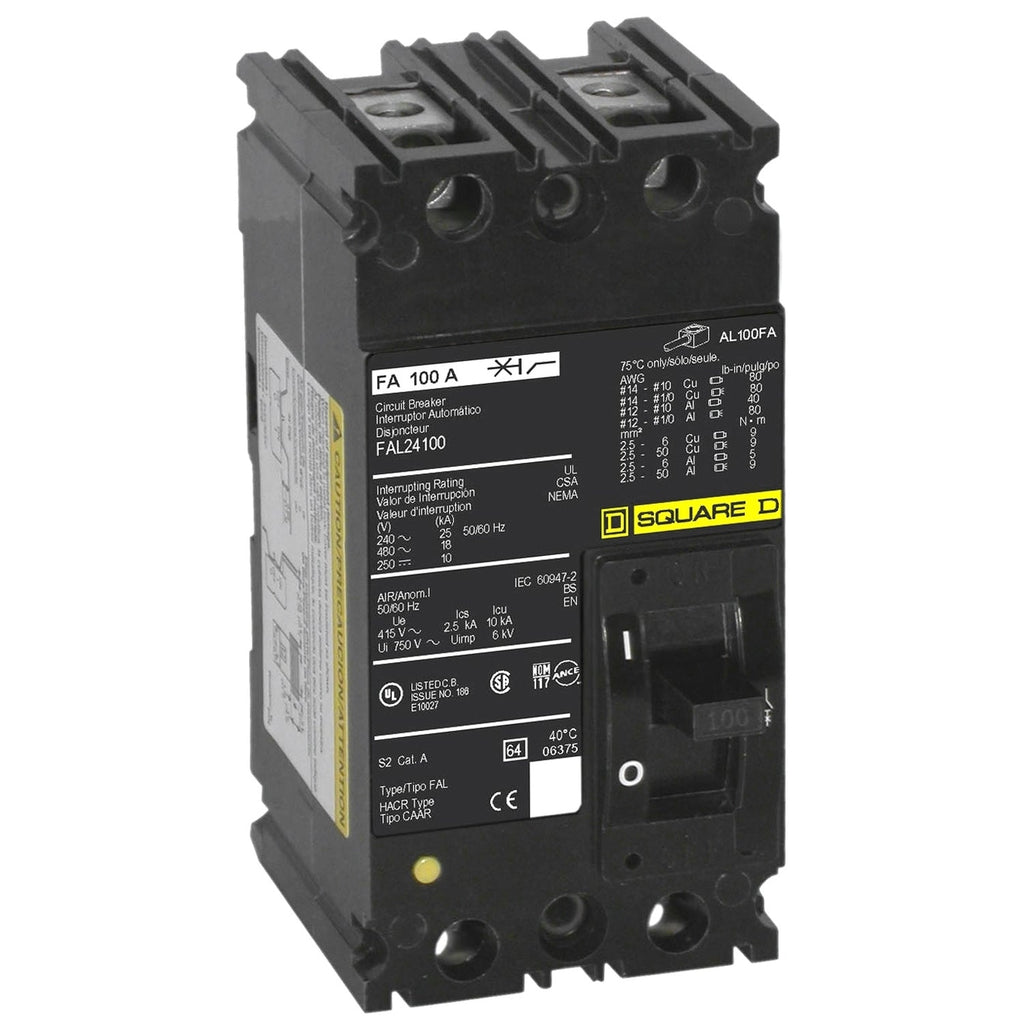

FAL24100
FAL24100 is a Square D 2 pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.
This thermal magnetic circuit breaker features a 100A current rating, 480VAC voltage rating, and an interrupting capacity of 18kAIC at 480V. It is part of the FAL series, offers feed-thru connection, and is certified to UL and CSA standards for safety and compliance.
Key Specifications
- Manufacturer: Square D
- Part Number: FAL24100
- Amperage: 100A
- Voltage: 480VAC
- Poles: 2
- Mounting Type: Unit
- Interrupt Rating: 18kAIC at 480V
- Series/Frame: FAL
- Trip Unit: Thermal Magnetic (Long-Time & Instantaneous)
- Connection Type: Feed-Thru
- Certifications: UL, CSA
- Application: HACR
- Terminal: Line and Load Side Lug
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FAL24100
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 480
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901254966
- GTIN : 00785901254966
- Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 3
- Certification : UL LISTED, CSA, IEC
