Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL24070

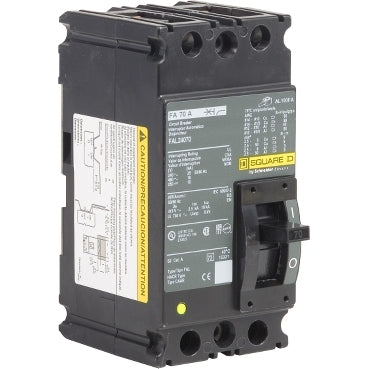

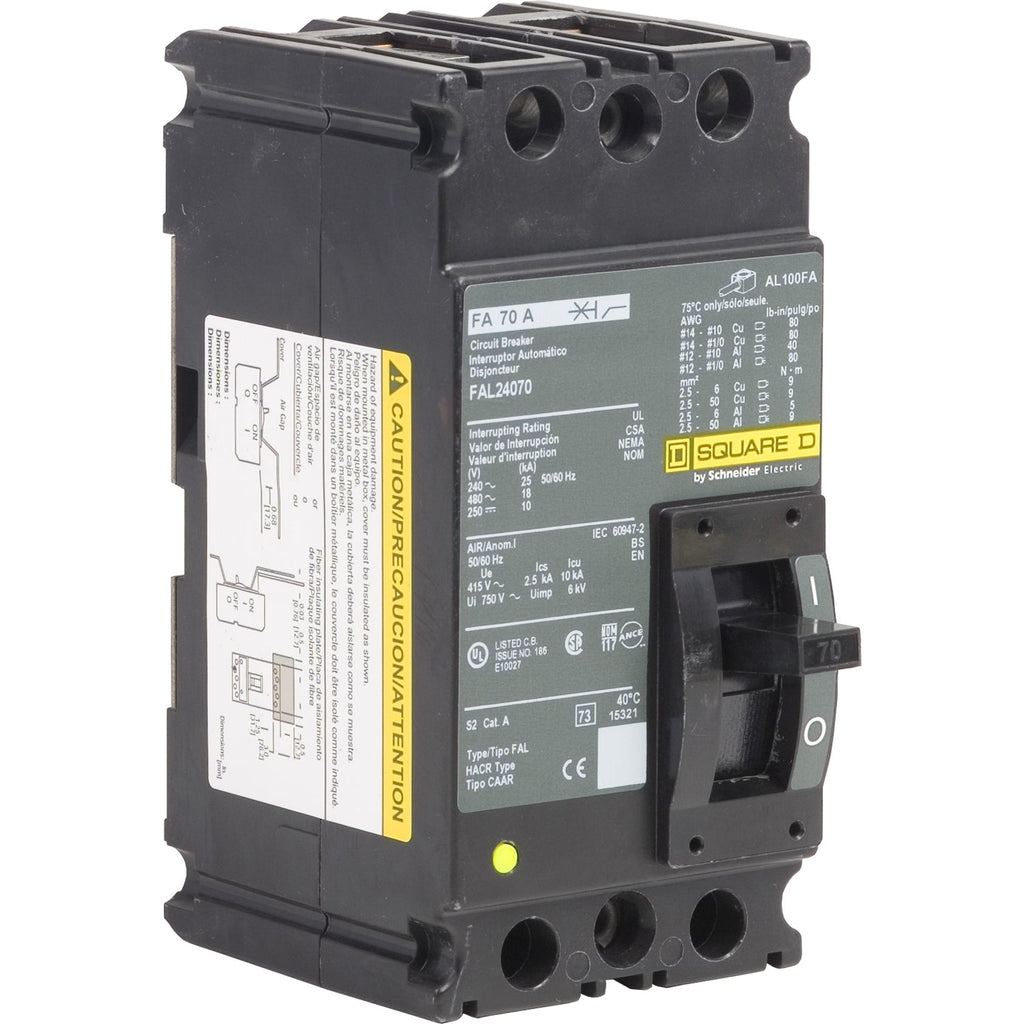

FAL24070 is a 2 pole, 70 amp, 480V thermal magnetic molded case circuit breaker designed for reliable power distribution and protection in commercial and industrial applications. This Square D FAL series breaker features a robust design for safe and efficient operation. The FAL24070 offers a 18kA interrupt rating at 480V, making it suitable for demanding electrical environments. It is HACR rated and compatible with standard mounting configurations for easy installation. The breaker is built to meet rigorous safety and performance standards for dependable circuit protection.
- Part Number: FAL24070
- Manufacturer: Square D
- Amperage: 70 Amps
- Voltage: 480V AC
- Poles: 2 Pole
- Interrupt Rating: 18kA @ 480V
- Series/Frame: FAL
- Mounting Type: Standard
- Thermal Magnetic Trip Unit
- HACR Rated
- UL Listed
- Dimensions: 6.4 x 3 x 4.13 inches
Specifications
- Part Number: FAL24070
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 480
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901254942
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 3.53
- Certification : UL LISTED
