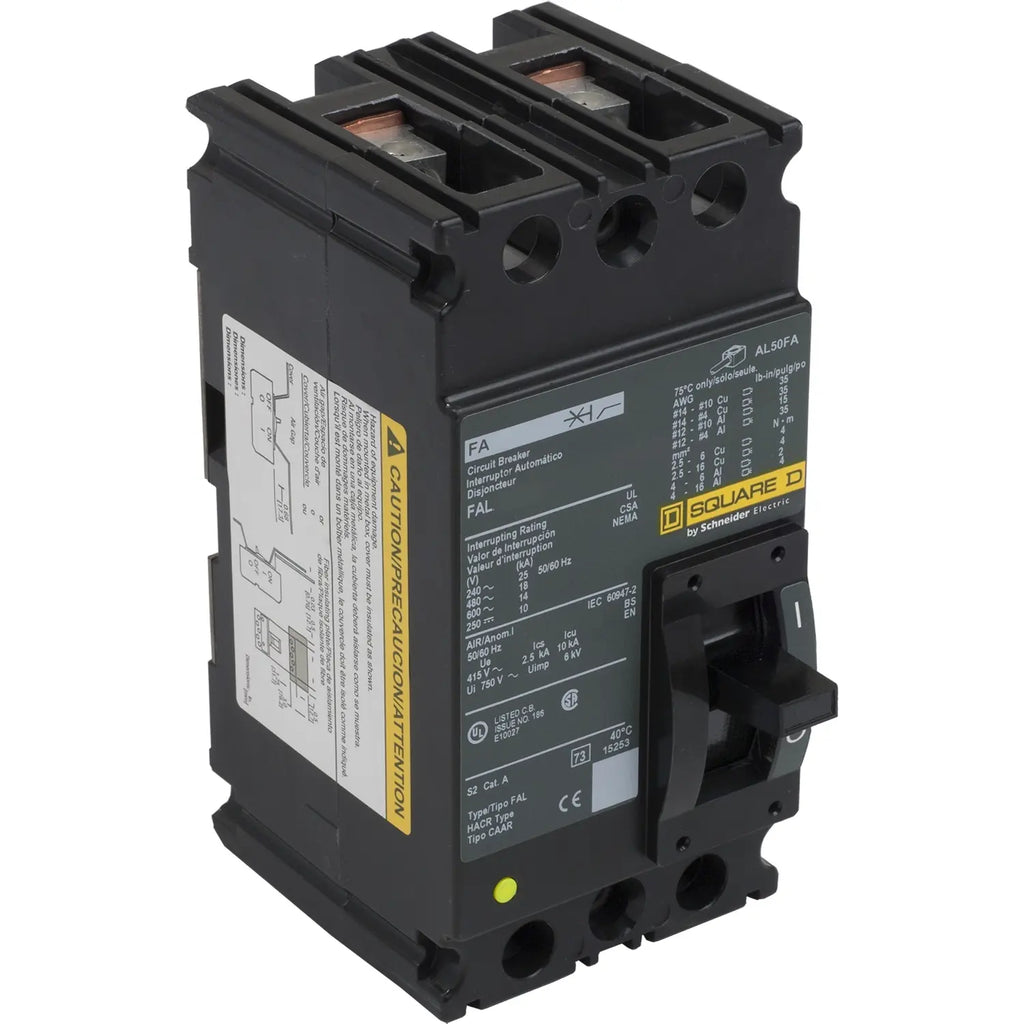

FAL24045 - Square D 45 Amp 480 Volt 2 Pole Molded Case Circuit Breaker FAL Series

FAL24045

FAL24045 is a Square D 2 pole molded case circuit breaker rated for 45 amps and 480 volts, designed for reliable power distribution protection.This circuit breaker features a thermal magnetic trip unit with long-time and instantaneous functions, suitable for 1 phase systems. It has a feed-thru mounting type and an interrupt rating of 18kA at 480V AC, 25kA at 240V AC, 10kA at 250V DC, and 10kA at 415V AC. The breaker is part of the FAL series with an F frame size, providing robust protection in industrial and commercial applications.

Key Specifications
• Manufacturer: Square D
• Part Number: FAL24045
• Series/Frame: FAL / F
• Amperage: 45 A
• Voltage Rating: 480 V AC
• Poles: 2
• Phase: 1
• Mounting Type: Feed-Thru
• Interrupt Rating: 18kA @ 480V AC, 25kA @ 240V AC, 10kA @ 250V DC
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Dimensions: 6.4" H x 3" W x 4.13" D
• Certifications: UL 489, ANSI C37 compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FAL24045
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 45
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 785901074274
• GTIN : 00785901074274
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3.627
• Certification : UL LISTED-CSA
• Wire Size : AWG 14, AWG 1/0 Copper)1, AWG 12, AWG 1/0 Aluminium)1
