Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL24040

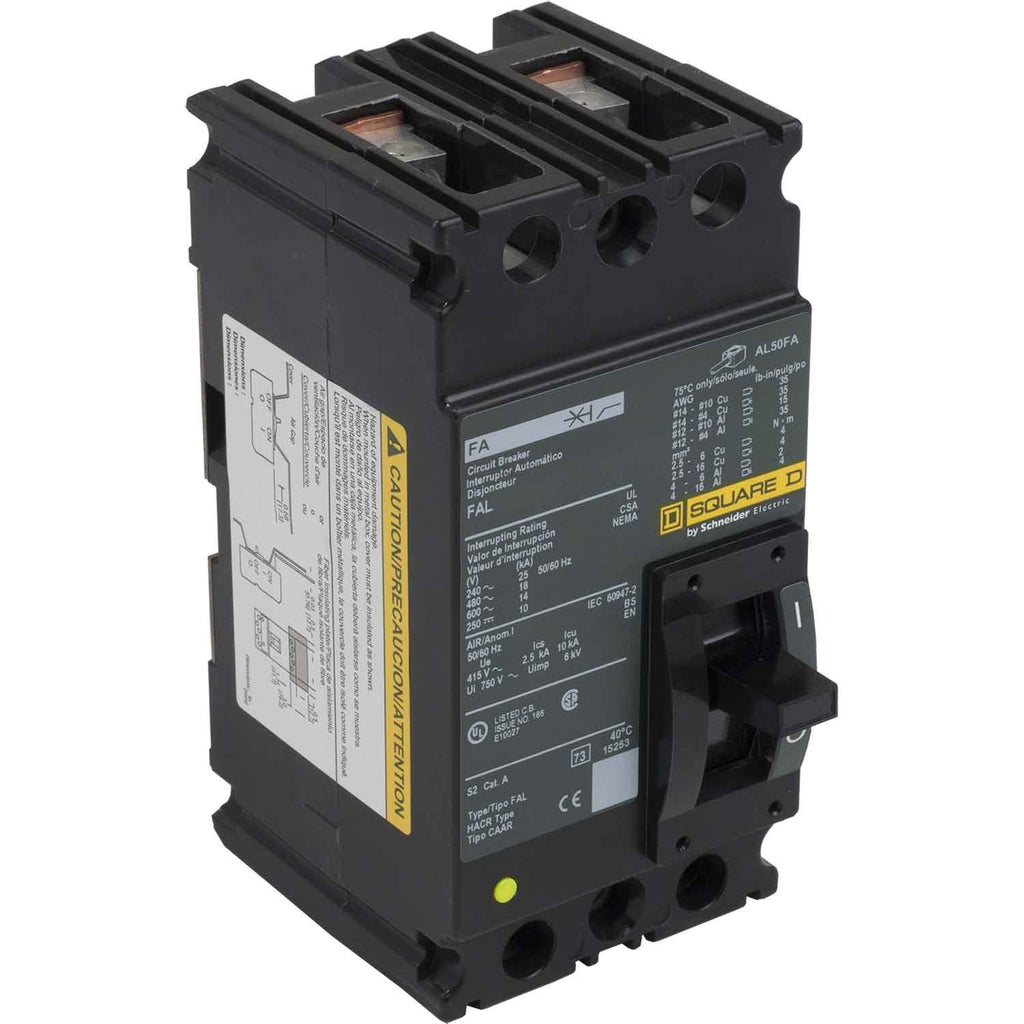

FAL24040 is a 40 Amp, 2-Pole molded case circuit breaker from Square D designed for panel mounting and rated for 480 Volt AC and 250 Volt DC applications.FAL24040 features an F frame with a thermal-magnetic trip unit, providing reliable protection with an interrupt rating of up to 18kA at 480VAC and 10kA at 250VDC. It supports a magnetic hold current of 400A and magnetic tripping at 850A, suitable for industrial and commercial power distribution.
- Key Specifications
- Amperage: 40A
- Voltage: 480VAC, 250VDC
- Poles: 2
- Mounting Type: Panel mount
- Interrupt Rating: 18kA @ 480VAC, 10kA @ 250VDC
- Frame: F Frame
- Trip Unit: Thermal-magnetic
- Magnetic Hold Current: 400A
- Magnetic Trip Current: 850A
- Type: Molded Case Circuit Breaker
- Certifications: Square D standard industrial certifications
Specifications
- Part Number: FAL24040
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 480
- Amperage : 40
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 078590125491
- GTIN : 00785901254911
- Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 3
