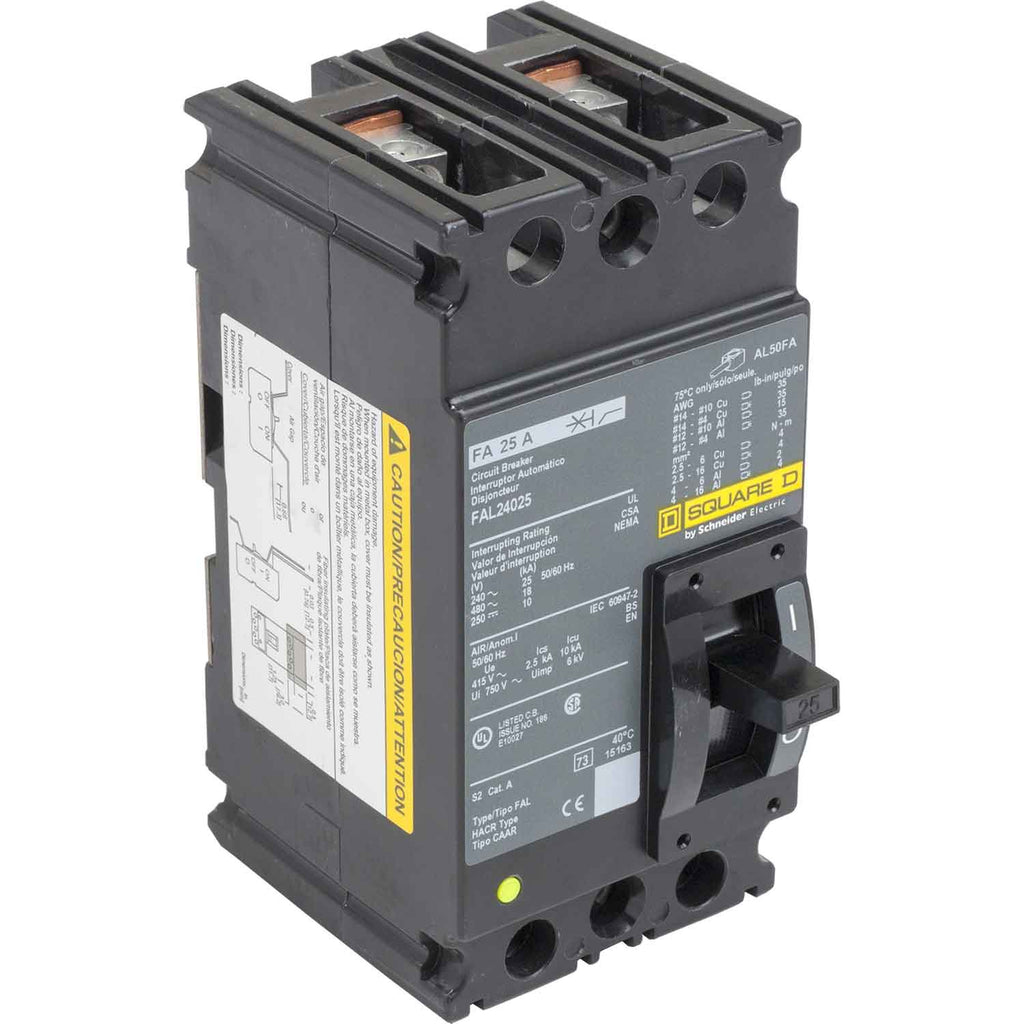

FAL24025 - Square D 25A 480V 2 Pole Molded Case Circuit Breaker, FAL Series, 18kAIC Interrupt Rating, Feed-Thru Connection

FAL24025

FAL24025 is a Square D FAL Series 2 Pole molded case circuit breaker rated for 25A at 480V, featuring thermal magnetic protection and feed-thru connections for reliable power distribution. This molded case circuit breaker is designed for industrial and commercial applications, offering long time and instantaneous trip functions, line and load side lug terminals, and an interrupting rating of 18kAIC at 480V. The FAL24025 is suitable for use in panelboards and switchgear requiring dependable overcurrent protection.

• Manufacturer: Square D
• Series: FAL
• Amperage: 25A
• Voltage: 480V
• Poles: 2
• Interrupting Rating: 18kAIC at 480V
• Connection Type: Feed-Thru
• Protection Type: Thermal Magnetic
• Mounting Type: Molded Case
• Phase: 1
• Terminal Connection: Load Side Lug
• Functions: Long Time and Instantaneous Trip

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL24025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901650195
• GTIN : 00785901650195
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3
• Certification : CSA-UL LISTED
