FAL14100 - Square D 100 Amp 277 Volt 1 Pole Molded Case Circuit Breaker, 18kA Interrupt Rating

FAL14100

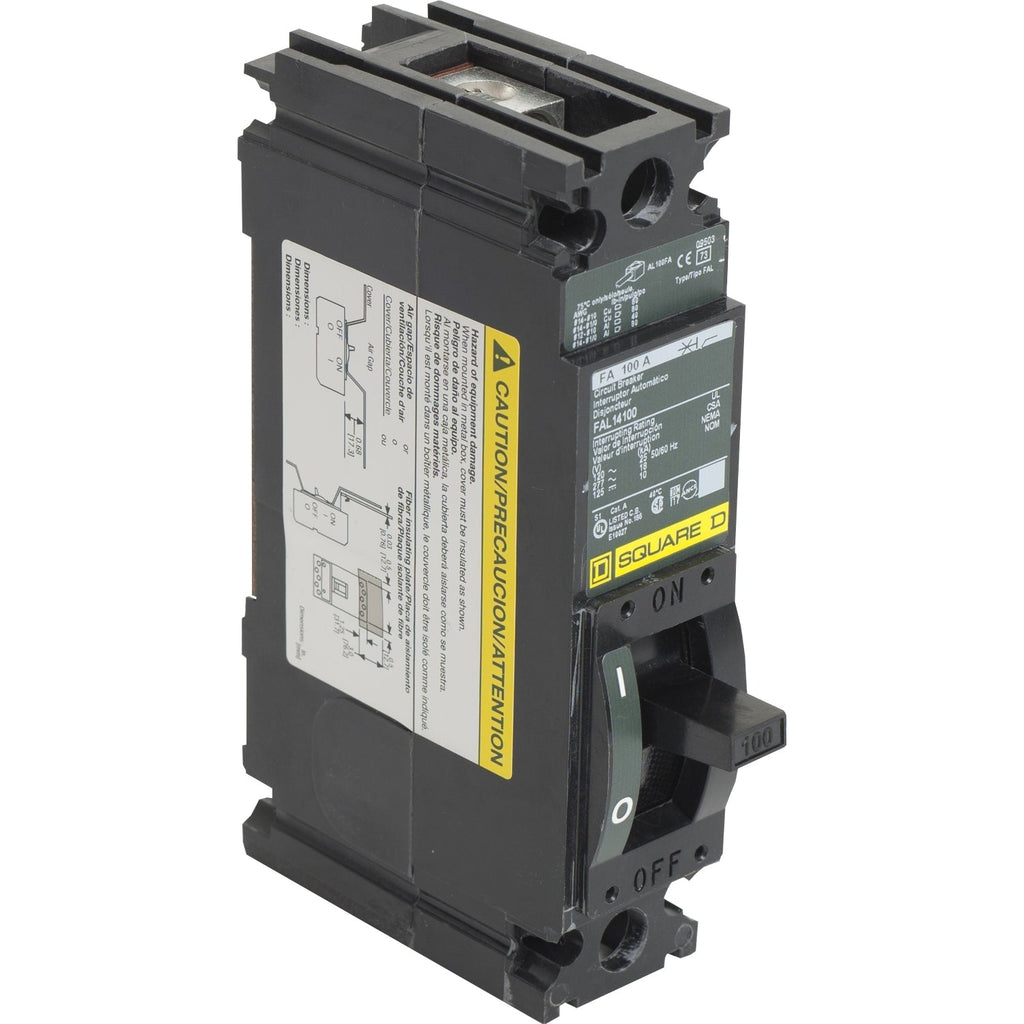

FAL14100 is a 100 amp, 1 pole molded case circuit breaker rated for 277 volts, manufactured by Square D. It features a thermal magnetic trip unit and an 18kA interrupt rating at 277V.This Square D FAL14100 circuit breaker is designed for reliable circuit protection with a feed-thru mounting type. It supports a maximum voltage of 277 VAC and 125 VDC, with a breaking capacity of 18kA at 277 volts. The breaker is part of the FA series and includes certifications for safety and performance.

• Amperage: 100 A
• Voltage: 277 VAC / 125 VDC
• Poles: 1
• Mounting Type: Feed-Thru
• Interrupt Rating: 18kA @ 277V
• Trip Unit: Thermal Magnetic
• Series/Frame: FA
• Certifications: UL Listed
• Manufacturer: Square D
• Dimensions: Approx. 1.5 in W x 4.13 in D x 6 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL14100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 277
• Amperage : 100
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901128502
• GTIN : 00785901128502
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 0.2
• Wire Size : AWG 14, AWG 1/0 Copper)1, AWG 12, AWG 1/0 Aluminium)1
