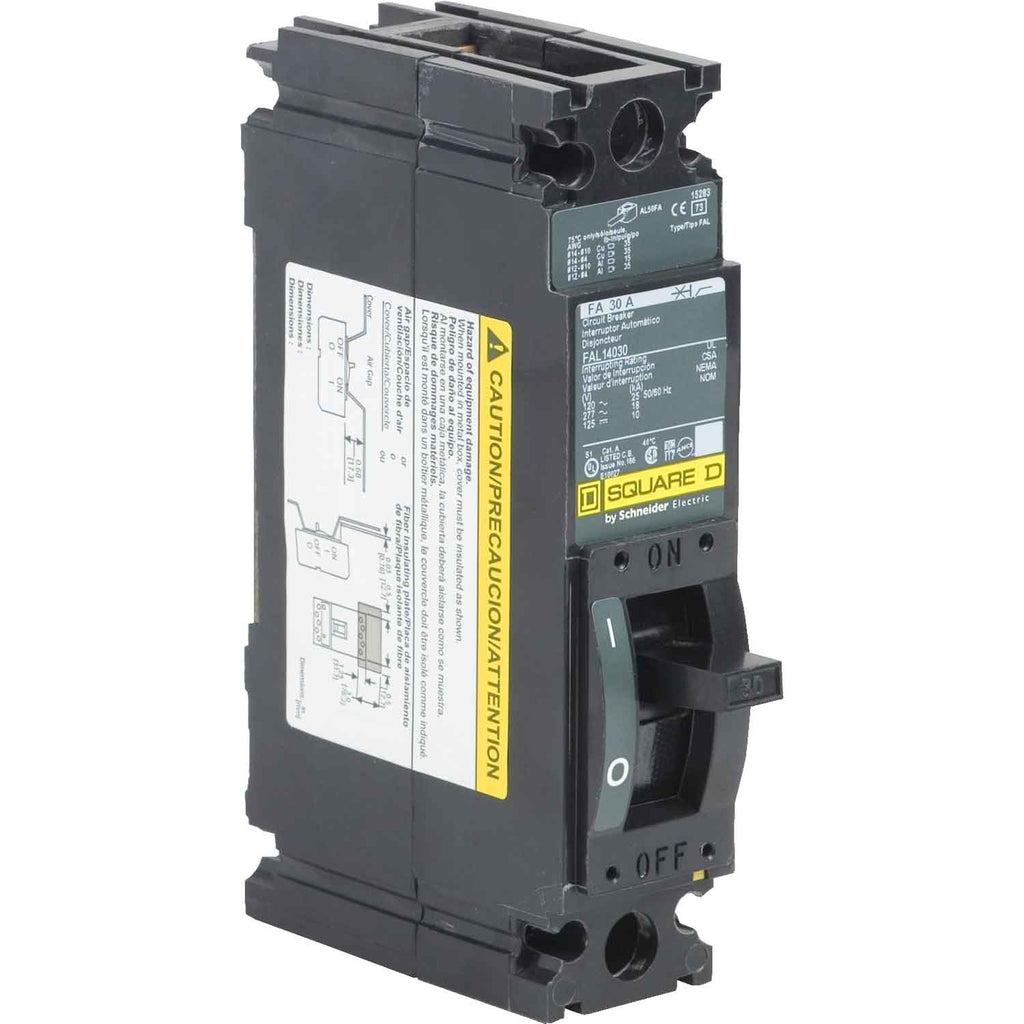

FAL14030 - Square D FAL Series 30A 1 Pole 277V Molded Case Circuit Breaker Feed-Thru Thermal Magnetic

FAL14030

FAL14030 is a 1 pole, 277V, 30A molded case circuit breaker from the Square D FAL Series, designed for feed-thru applications with thermal magnetic trip technology. This breaker features a 30A current rating, 277V AC voltage rating, and a 18kA interrupting capacity at 277V. It is built for reliable protection in commercial and industrial power distribution systems, with line and load side lug terminals for easy installation.

• Part Number: FAL14030
• Manufacturer: Square D
• Series/Frame: FAL
• Amperage: 30A
• Voltage: 277V AC
• Poles: 1
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA @ 277V
• Trip Unit: Thermal Magnetic
• Application: Feed-Thru
• Certifications: UL Listed
• Standards: NEMA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL14030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 277
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901649014
• GTIN : 00785901649014
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
• Certification : CSA-UL LISTED
• Wire Size : 12 to 4 AWG or 14 to 4 AWG
