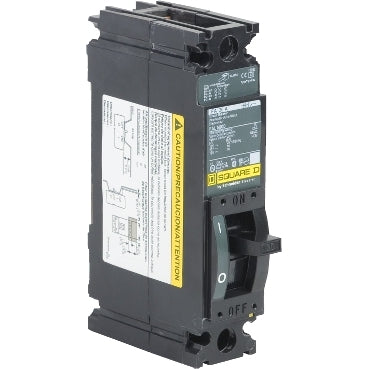

FAL14060 - Square D 60A 277V 1 Pole Molded Case Circuit Breaker 18kA Interrupt Rating

FAL14060

FAL14060 is a Square D 1 pole molded case circuit breaker rated for 60 amps and 277 volts with an 18kA interrupt rating.This Square D FAL14060 circuit breaker features a thermal magnetic trip unit designed for reliable protection in single-phase applications. It supports a 60 ampere load at 277 volts AC with a 1 pole configuration. The breaker is compact with dimensions approximately 1.5 inches wide by 4.13 inches deep by 6 inches high. It is UL listed and suitable for use in industrial and commercial electrical distribution systems.

• Amperage: 60A
• Voltage: 277V AC
• Poles: 1
• Interrupt Rating: 18kA at 277V
• Type: Molded Case Circuit Breaker (FAL Series)
• Trip Unit: Thermal Magnetic
• Mounting Type: Plug-in / Feed-Thru
• Dimensions: 1.5" W x 4.13" D x 6" H
• Certifications: UL Listed
• Frame/Series: FAL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL14060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 277
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 785901027626
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
• Wire Size : AWG 14, AWG 1/0 Copper)1, AWG 12, AWG 1/0 Aluminium)1
