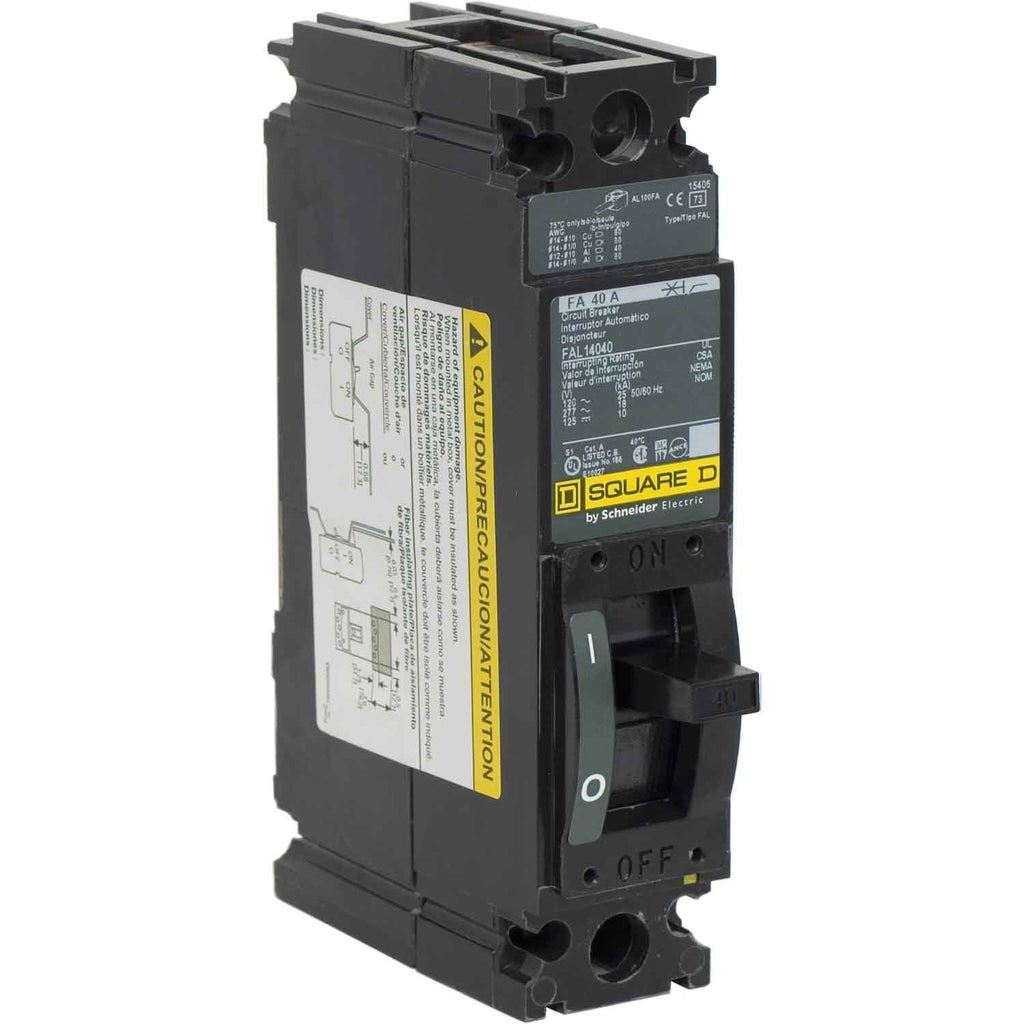

FAL14040 - Square D 40A 277V 1 Pole Molded Case Circuit Breaker 18kA@277V

FAL14040

FAL14040 is a 1 pole, 40A, 277V molded case circuit breaker from the Square D FAL Series, designed for reliable thermal-magnetic protection in commercial and industrial applications. This breaker features a 18kA interrupting rating at 277V and is suitable for feed-thru mounting configurations. The FAL14040 is a permanent trip, UL listed, CSA certified, and IEC rated circuit breaker, ideal for use in panelboards and switchgear where dependable overcurrent protection is required. Its compact design and robust construction ensure long-term performance in demanding environments.

• Part Number: FAL14040
• Manufacturer: Square D
• Series: FAL
• Poles: 1
• Amperage: 40A
• Voltage: 277V
• Interrupt Rating: 18kA @ 277V
• Mounting Type: Feed-Thru
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed, CSA Certified, IEC Rated
• Frame: FAL Series
• Application: Commercial, Industrial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL14040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 277
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901183716
• GTIN : 00785901183716
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 1.973
• Certification : CSA-UL LISTED
• Wire Size : AWG 14, AWG 1/0 Copper)1, AWG 12, AWG 1/0 Aluminium)1
