Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL12050

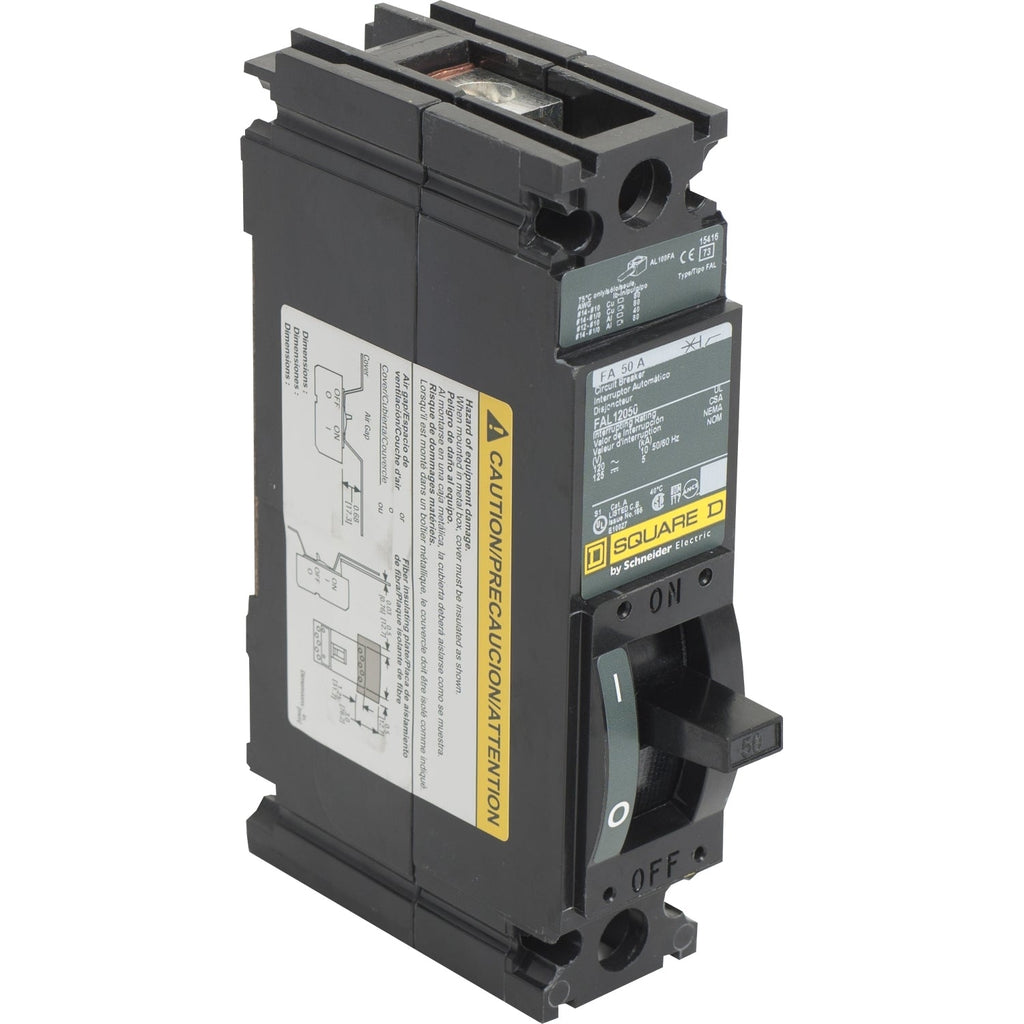

FAL12050 is a Square D 50 Amp, 120 Volt, 1 Pole feed-thru circuit breaker with a 10kA interrupt rating and thermal magnetic trip unit.
This circuit breaker features a FAL frame type, thermal magnetic trip with long-time and instantaneous trip functions, and line and load side lug terminals. It is designed for bolt-on mounting and provides reliable overcurrent protection in single-phase applications.
- Key Specifications
- Amperage: 50 Amps
- Voltage Rating: 120 Volts AC
- Poles: 1
- Frame Type: FAL
- Interrupt Rating: 10kA at 240V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Mounting Type: Bolt-On
- Feed-Thru Design
- Line and Load Side Lug Terminals
- Phase: Single Phase
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FAL12050
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 120
- Amperage : 50
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901342441
- GTIN : 00785901342441
- Dimensions : Depth 4.13 in (104.90 mm) Width 1.5 in (38.10 mm) Height 6.4 in (162.56 mm)
- Weight : 1
- Certification : UL LISTED-CSA
