FAB36090 - Square D 90A 600V 3-Pole Molded Case Circuit Breaker I-Line Plug-On

FAB36090

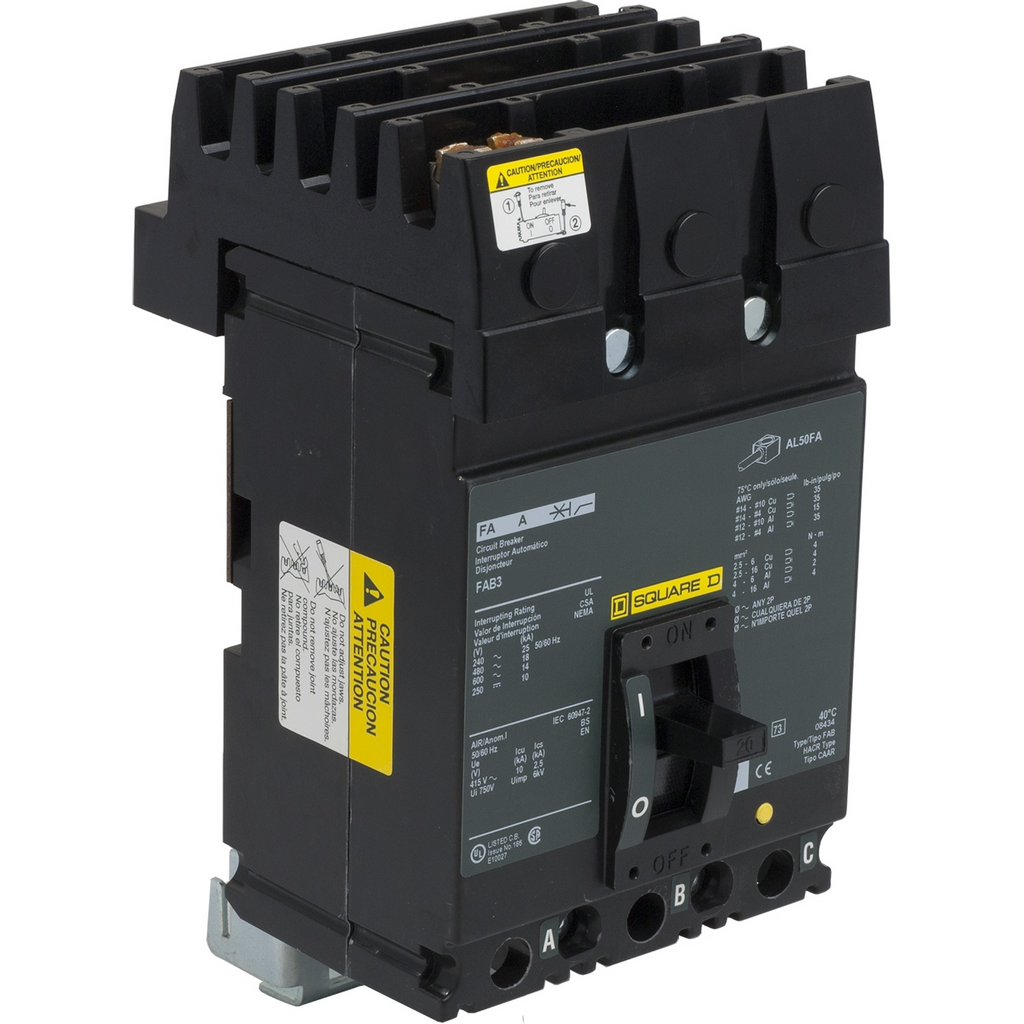

FAB36090 is a 90 amp, 600 volt, 3-pole molded case circuit breaker from Square D designed for I-Line plug-on mounting.

This Square D FAB36090 circuit breaker features a 3-pole configuration with a 600V voltage rating and 90A amperage. It has an interrupting rating of up to 25kA at 240VAC and 18kA at 480VAC, suitable for robust industrial and commercial power distribution applications. The breaker is part of the FAB series and mounts via the I-Line plug-on system, providing reliable circuit protection and easy installation. It carries industry certifications ensuring compliance with electrical safety standards.

Key Specifications
• Amperage: 90A
• Voltage Rating: 600V
• Poles: 3
• Mounting Type: I-Line Plug-On
• Interrupting Rating: 25kA @ 240VAC, 18kA @ 480VAC
• Series/Frame: FAB
• Trip Unit: Thermal-Magnetic
• Manufacturer: Square D
• Weight: Approximately 7 lbs
• Certifications: Industry standard electrical safety certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAB36090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FAB
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : I-Line Style Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901043355
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 9
