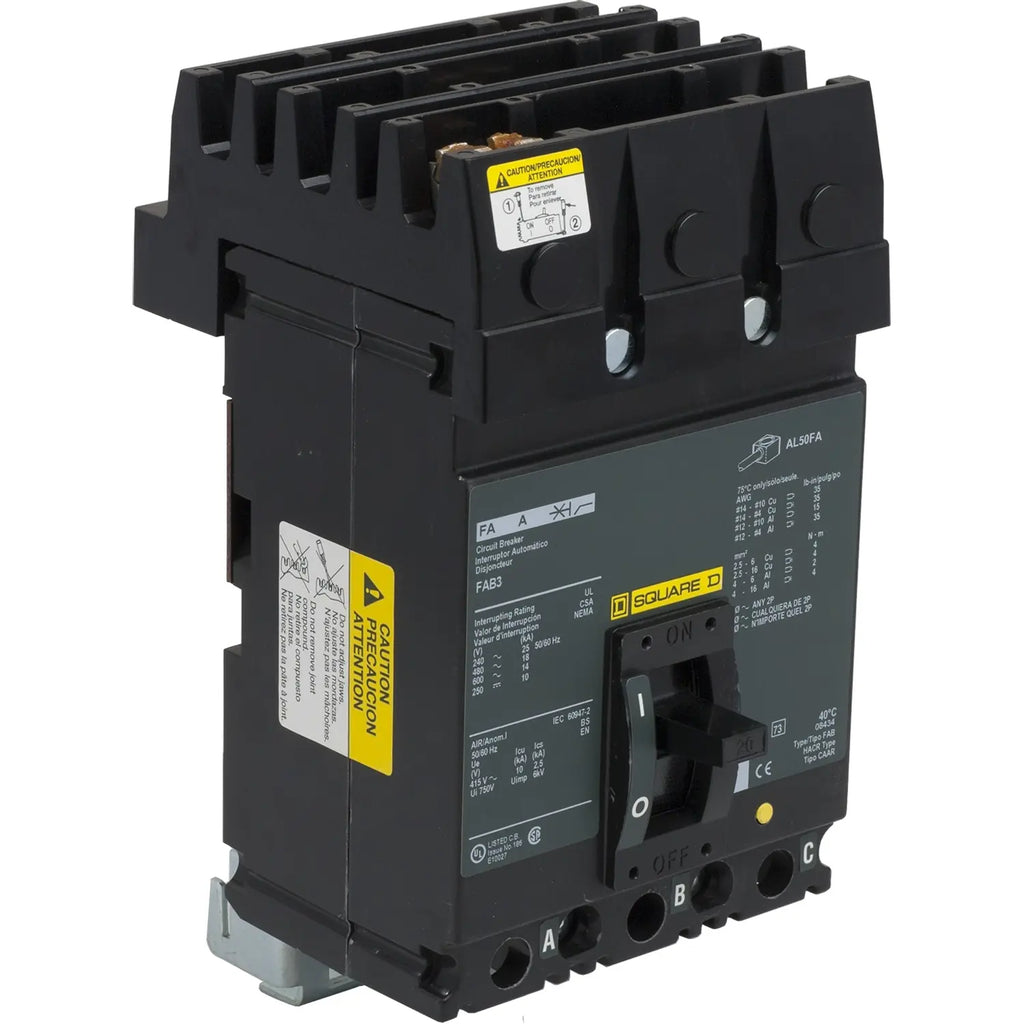

FAB36025 - Square D Molded Case Circuit Breaker I-Line 25 Amp 3 Pole 600V

FAB36025

FAB36025 is a Square D molded case circuit breaker designed for industrial and commercial electrical distribution applications. This I-Line plug-in circuit breaker combines thermal-magnetic trip protection with reliable performance in demanding environments.Technical Description

The FAB36025 is a 3-pole, 25-ampere circuit breaker rated for 600 volts AC. It features I-Line mounting compatibility for seamless integration into Square D panelboards and enclosures. The thermal-magnetic trip mechanism provides coordinated protection against overloads and short circuits. With a standard interrupting rating of 14 kA at 600V, this breaker is suitable for general-purpose branch circuit protection in industrial facilities, commercial buildings, and utility applications.

Key Specifications

• Part Number: FAB36025
• Manufacturer: Square D
• Amperage Rating: 25 Amps
• Voltage Rating: 600V AC
• Number of Poles: 3
• Mounting Type: I-Line Plug-In
• Trip Unit: Thermal-Magnetic
• Interrupting Rating: 14 kA at 600V
• Frame Type: FA
• Magnetic Hold Current: 275 A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAB36025
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FAB
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : I-Line Style Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 9
