Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FA361001021

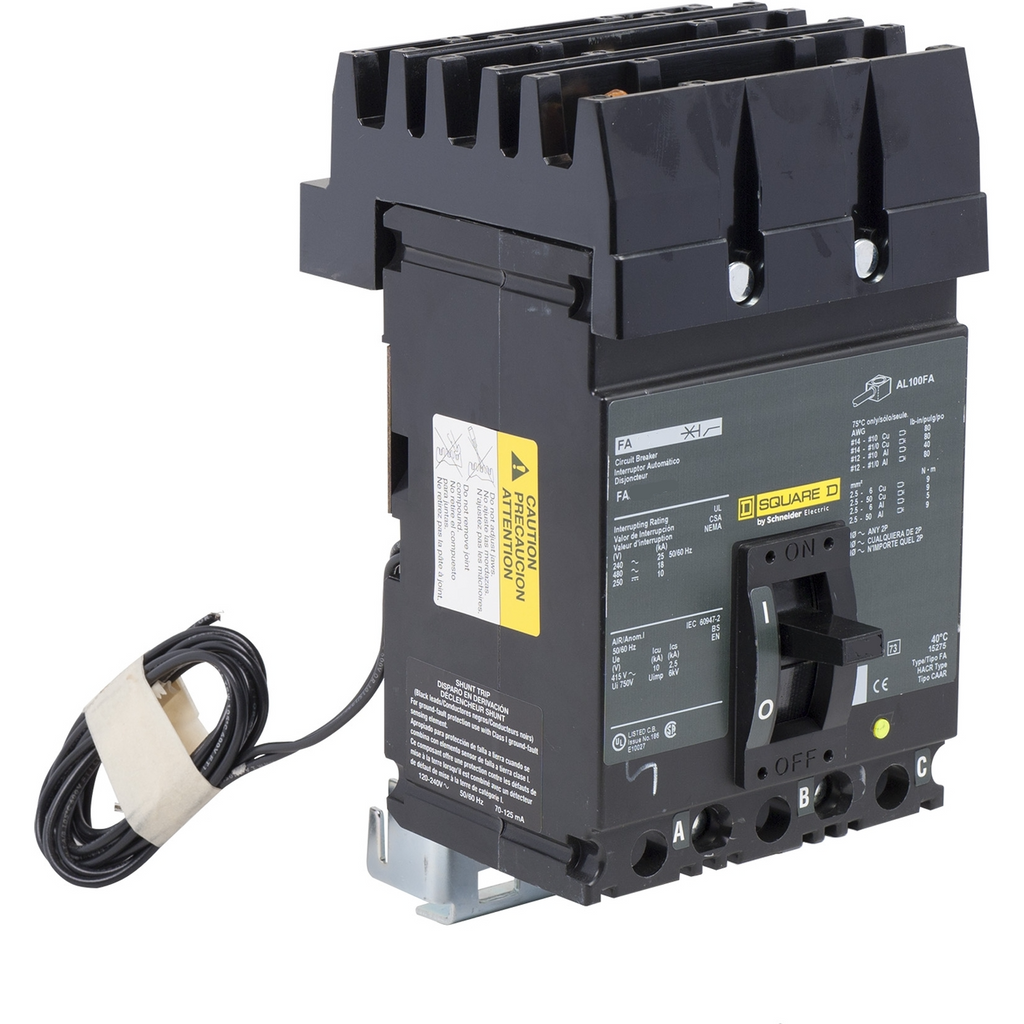

FA361001021 is a Square D I-Line style plug-in molded case circuit breaker with a 100A rating, 600VAC, and 3 poles, designed for reliable power distribution in commercial and industrial applications. This breaker features a thermal magnetic trip unit with long-time and instantaneous protection, a 120V shunt trip device, and an interrupting rating of 18kAIC at 480V. It is UL and CSA listed, HACR rated, and suitable for use in I-Line busway systems.
- Manufacturer: Square D
- Series/Frame: FA
- Amperage: 100A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: I-Line Plug-In
- Interrupt Rating: 18kAIC @ 480V
- Protection Type: Thermal Magnetic
- Functions: Long-Time and Instantaneous Trip
- Shunt Trip: 120V
- Standards: UL, CSA, HACR
- Terminal Connection: Load Side Lug
Additional Information
complete with 120/240Vac shunt trip
Specifications
- Part Number: FA361001021
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : FA
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : I-Line Style Plug-In
- Functions : Long Time and Instantaneous Trip
- Frame Size : F Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901553632
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 9
