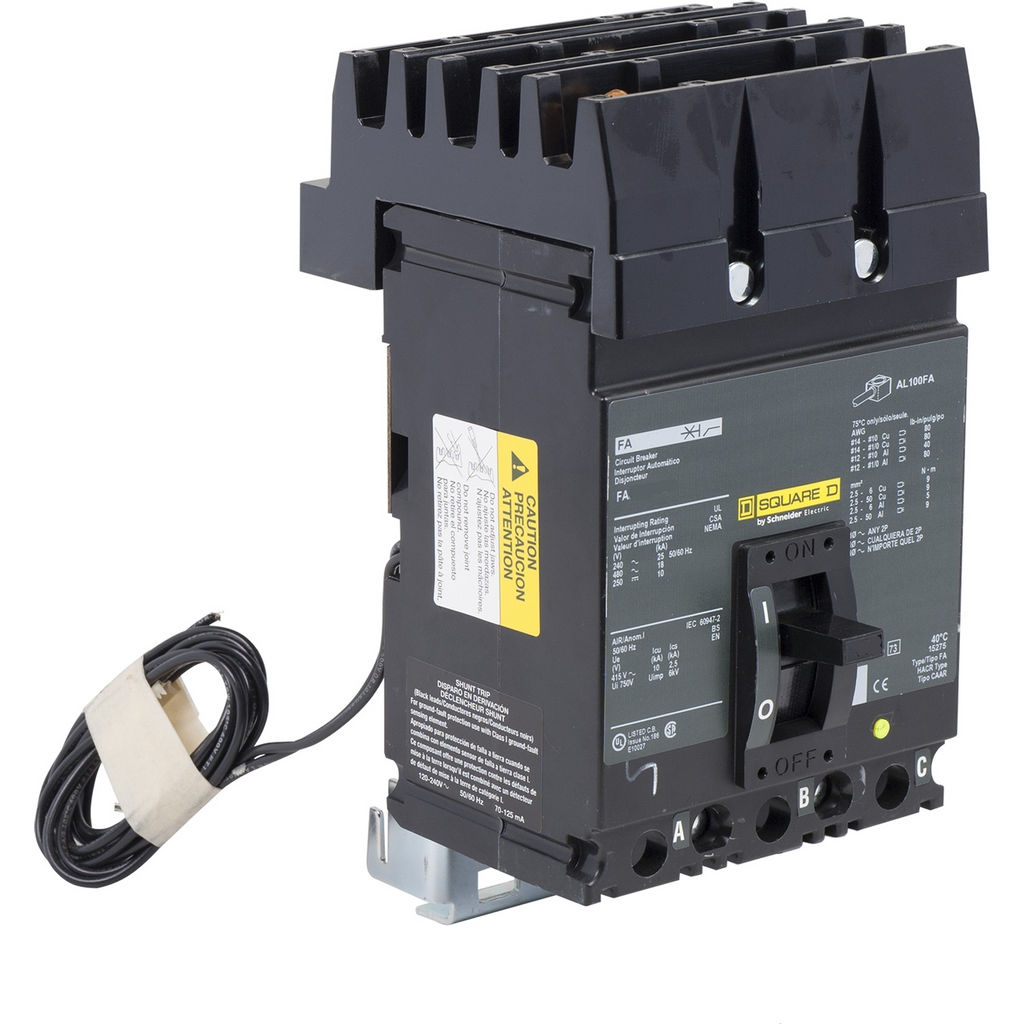

FA360401021 - Square D 40A 3-Pole 600V I-Line Molded Case Circuit Breaker Thermal Magnetic

FA360401021

FA360401021 is a 40 Amp, 3 Pole, 600 Volt I-Line molded case circuit breaker by Square D designed for reliable thermal magnetic protection.This circuit breaker features a trip-free design with long time and instantaneous trip functions, an interrupting rating of 18kA at 480V, and UL and CSA certifications. It mounts with an I-Line style plug-in connection and includes load side lug terminals. The breaker is rated for use at 40 °C ambient temperature and complies with RoHS, REACh, and HACR standards.

Key Specifications
• Amperage: 40 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupting Rating: 18kA at 480V
• Frame Type: FA Series
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Load Side Lug
• Certifications: UL, CSA
• Standards: RoHS, REACh, HACR
• Temperature Rating: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA360401021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590125540
• GTIN : 00785901255406
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 9
