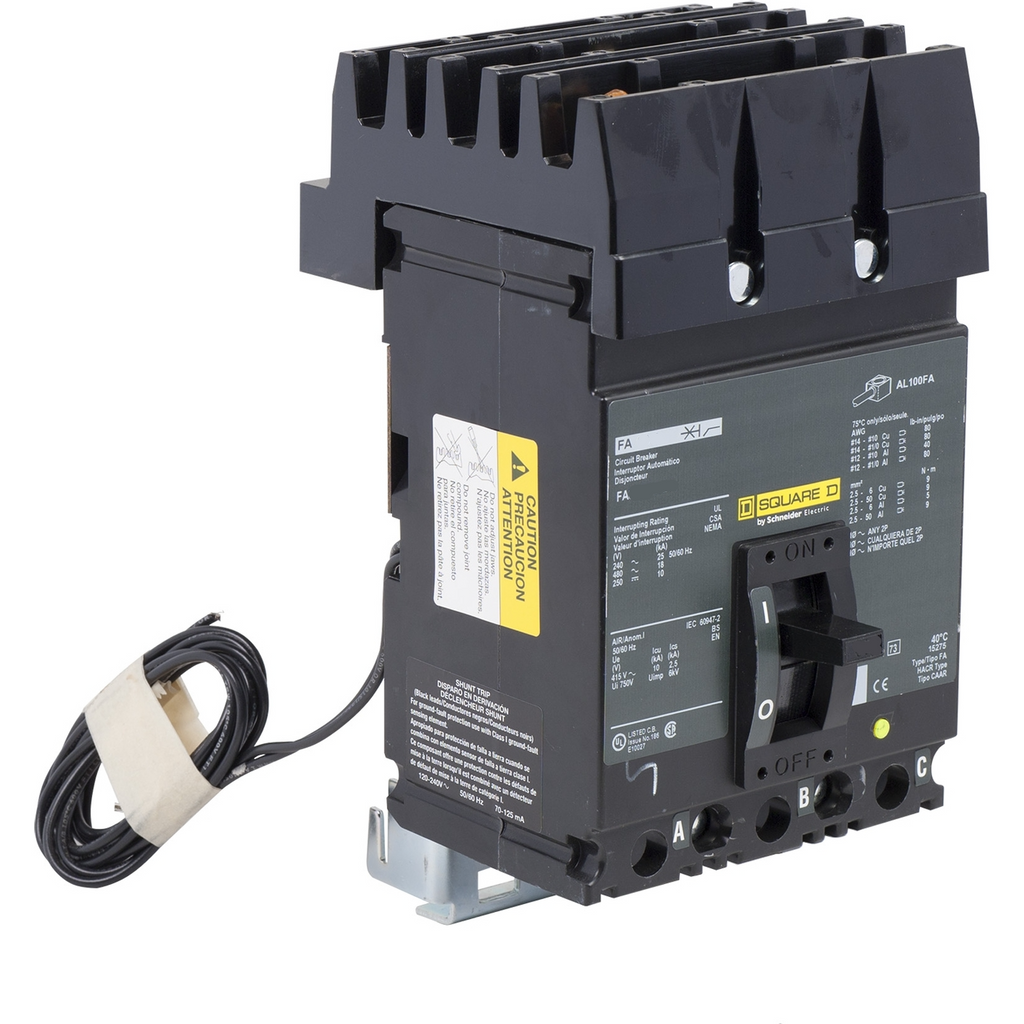

FA340801021 - Square D 80A 480V 3-Pole Thermal Magnetic Circuit Breaker I-Line Plug-In with 120V Shunt Trip

FA340801021

FA340801021 is a Square D 3-pole thermal magnetic circuit breaker rated for 80 amps and 480 volts AC, designed for I-Line style plug-in mounting.

This circuit breaker features a 120V shunt trip coil, long time and instantaneous trip functions, and an 18kA interrupting rating at 480V. It is suitable for 3-phase power distribution applications requiring reliable overload and short circuit protection within the FA frame series.

• Manufacturer: Square D
• Amperage: 80 Amps
• Voltage: 480 Volts AC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 18kA at 480V
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Shunt Trip Voltage: 120V
• Frame Type: FA Series
• Phase: 3-Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA340801021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 480
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901074069
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 9
