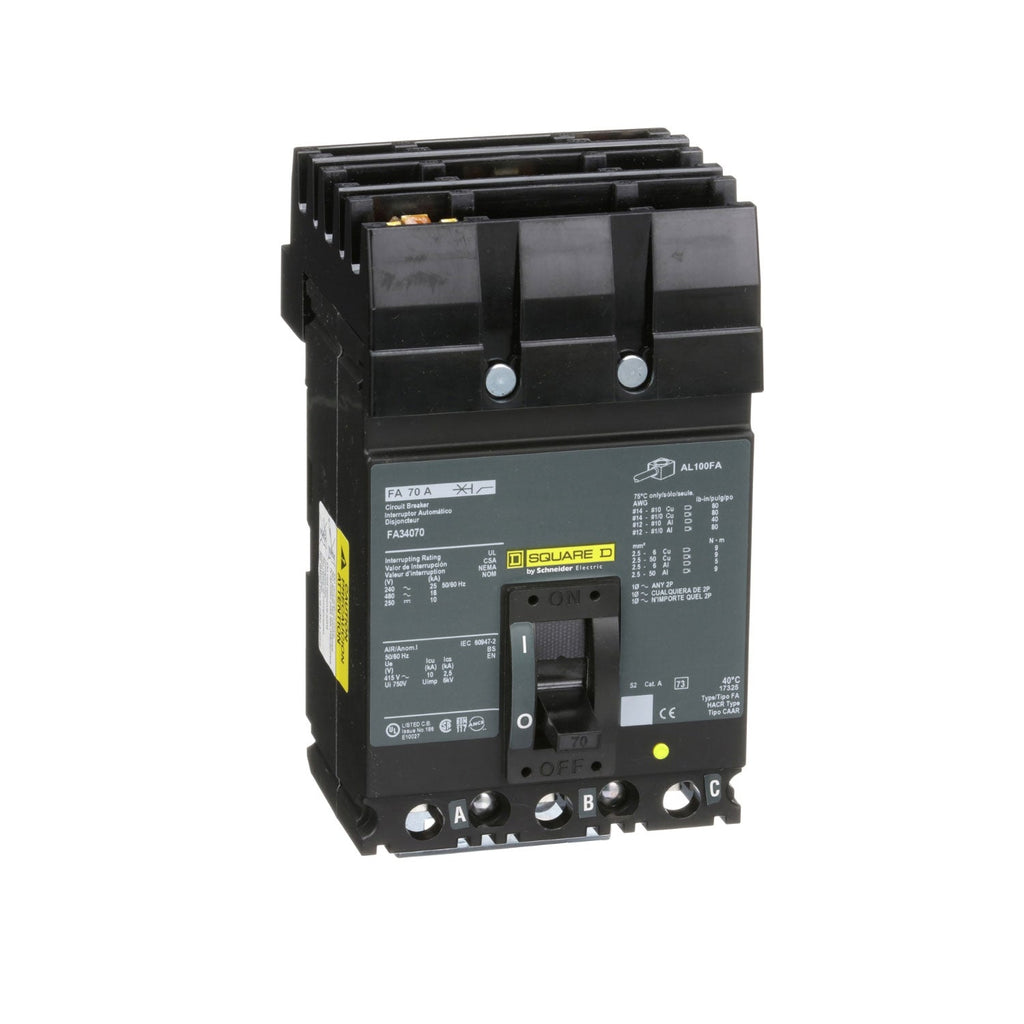

FA34070 - Square D 70 Amp 480V 3 Pole I-Line Molded Case Circuit Breaker FA Frame

FA34070

FA34070 is a 3 pole, 70 amp, 480 volt molded case circuit breaker from Square D designed for I-Line plug-in mounting.This Square D FA series circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions. It has an 18kA interrupting rating at 480V and is HACR rated for HVAC applications. The breaker is UL and CSA certified and includes load side lug terminal connections. Its compact dimensions are approximately 6.4 in height, 4.5 in width, and 4.13 in depth.

Key Specifications
• Manufacturer: Square D
• Part Number: FA34070
• Amperage: 70 Amps
• Voltage Rating: 480 VAC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 18kA at 480V
• Frame Type: FA
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Certifications: UL, CSA, HACR
• Terminal Connection: Load Side Lug
• Temperature Rating: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FA34070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 480
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901422808
• GTIN : 00785901422808
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 9
