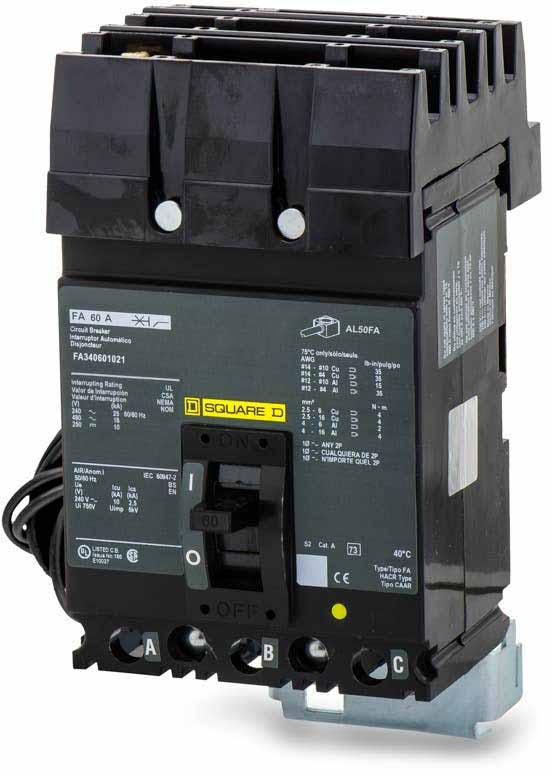

FA340601021 - Square D 60A 480V 3 Pole FA Frame I-Line Plug-On Circuit Breaker Thermal Magnetic

FA340601021

FA340601021 is a Square D 3 pole, 60 amp, 480 volt molded case circuit breaker with a thermal magnetic trip unit and I-Line plug-on mounting.This FA frame breaker is designed for power distribution applications with an interrupt rating of 18kA at 480 VAC and 10kA at 240 VAC. It features a thermal magnetic trip method, 3 poles, and is UL and CSA certified. The breaker fits I-Line panelboards and switchboards and supports wire sizes from 12 to 1/0 AWG aluminum and 14 to 1/0 AWG copper. It includes a 120/208/240 VAC shunt trip option.

• Manufacturer: Square D
• Part Number: FA340601021
• Amperage: 60A
• Voltage Rating: 480 VAC
• Poles: 3
• Frame Type: FA
• Mounting Type: I-Line Plug-On
• Interrupt Rating: 18kA @ 480 VAC, 10kA @ 240 VAC
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
• Wire Size: 12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper

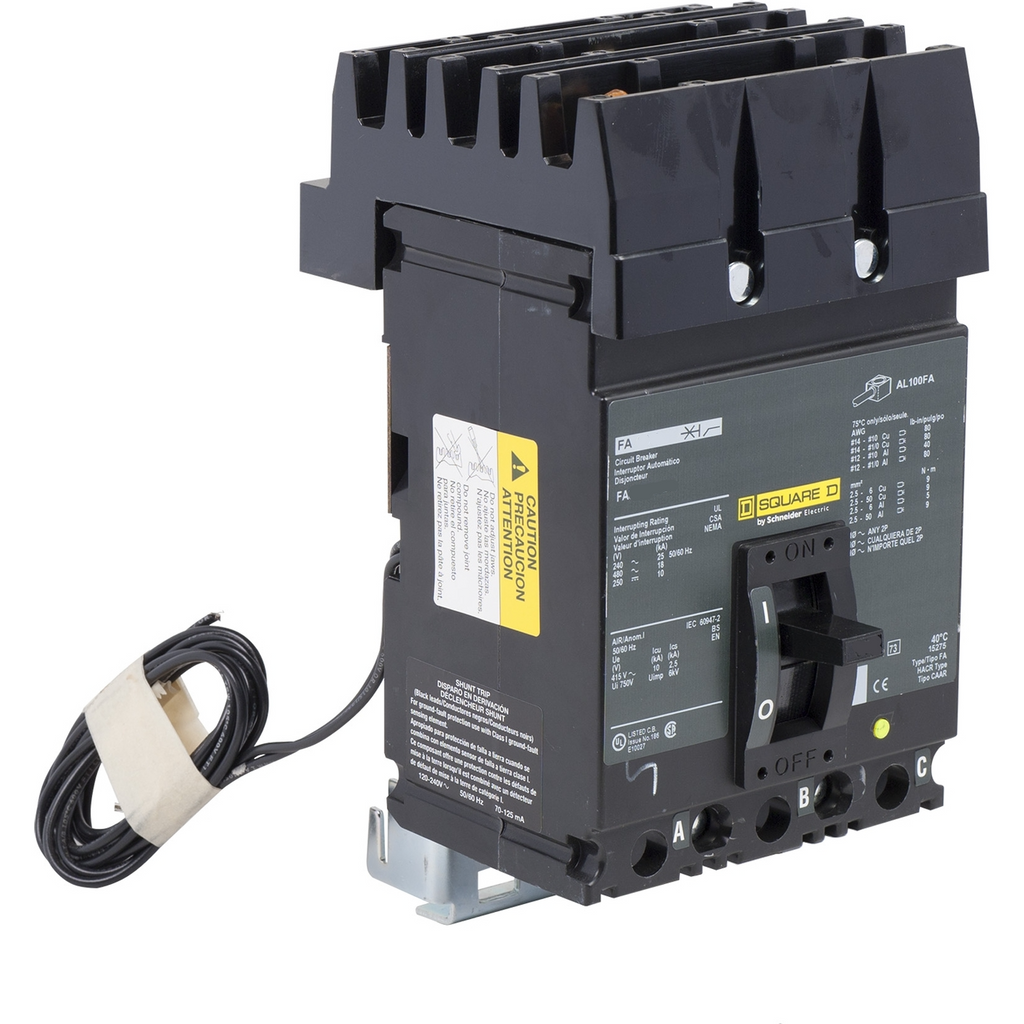

• Includes 120/208/240 VAC Shunt Trip

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA340601021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 480
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901255239
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 9
• Certification : UL
